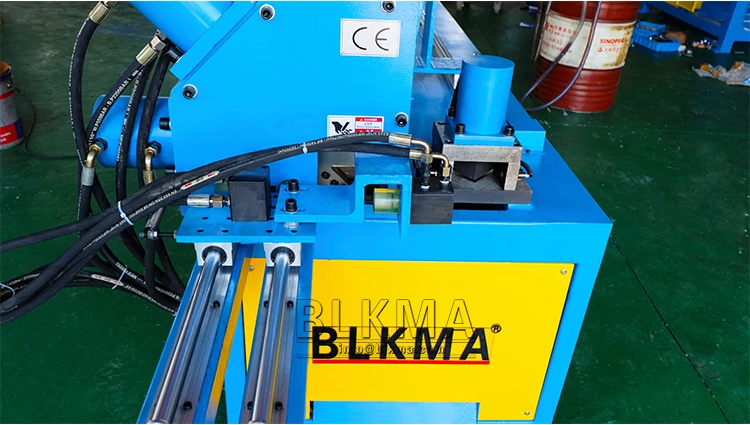

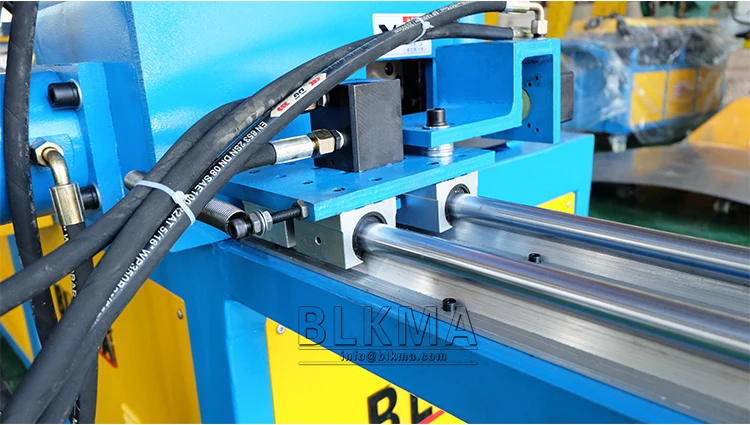

BLKMA square duct angle steel flange machine,angle iron flange auto production

BLKMA square duct angle steel flange machine,angle iron flange auto production

Function:

Fully automatic angle steel flange production line,or CNC angle steel flange production line,is mainly for punching and cutting duct angle steel flange.The machine are designed to feed,punch,cut automatically in order to save labor improve efficiency.It’s very fast,accurate and highly automatic.

Performance Feature:

1.It’s a brand new design which can keep angle steel tailing less than 350mm.

2.It’s controlled by servo motor and its feeding dimensions are accurate.

3.It only requires to input the size of workplace,distance between holes and how many holes to punch when programming,which is very easy to operate.

4.With production memory functions,the production orders can be tracked and checked.

5.The new design mold can complete the angle steel switching within 5 seconds,with the durable punch.

Main Configuration:

1.Beijing Huade or hydraulic system from Taiwan

2.Cutter and punching die which are both made of Japan SKH51

3.Servo motor-driven feeding system

Main Technical Parameters:

1.Scale of angle steel to process: #3-#5 angle steel

2.Common punching sizes: big- sized: 9.5×13mm,small-sized 4.2-5.2mm

3.The number of punches which can be installed simultaneously: 2

4.Common length of angle steel : 6000mm

5.Machining accuracy no more the : 0.5mm

6.Feeding speed of angle steel: 15-20m/min

Video on Youtube

https://www.youtube.com/watch?v=KR6OEq0I0lY

 auto manufacturing machine air duct production line 3 for HVAC pipe forming

 auto manufacturing machine air duct production line 3 for HVAC pipe forming

1, How about your machine quality?
RE:BLKMA have more than 10 years of technical research and mature brand guarantee which let us have enough confidence to promise you 2 years warranty. We are rapidly growing. You can place the order after inpection.
