Indoor Positive Pressure Damper

Price:

US 10-30 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

4000 Piece/Pieces per Month

Port:

shanghai,shenzhen

Place of Origin:

Sichuan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

Products Model:

HY-FYY-0001

Products Details
Company Profile

Quick Details

Brand Name: HY

Model Number: HY-FYY-0001

Place of Origin: Sichuan, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden case package, or as Customer request
Delivery Detail: --

Specifications

Name: Indoor Positive Pressure Damper
Model: HY-FYY

Advantages

HY-F series air volume damper is our company’s new products of developing and producing. Has two models of low leakage and general. Also has two types of folio blade and parallel blade. It combines these advantages of Johnson Controls Inc.(USA) and many Chinese company, simple & reasonable structure, low leakage, small friction torque, low noise, flexible operation, good rigidity of blade, corrosion resistant, easy installation, beautiful appearance, complete variety of products, etc.

Certificate

Its performance and each parameter index all reach the regulation of standard JB/T7228-94 <Volume Damper> of Machinery Industry Standard of People’s Republic of China. It can be widely used in air condition and ventilation system of industrial and civil, to achieve the purpose of controlling air volume exactly.

Description

1.    It is usually used for these indoor rooms which need to maintain positive pressure, like as clean room, computer room and staircase with pressurized air supply, etc.. It can automatically control the positive pressure of indoor room.
2.    It is self-weight control device of positive pressure and has these advantages, like as flexibly rotating, tight close, easy adjustment, elegant appearance and no energy consumption, etc.
3.    The flange of front frame is made of aluminum alloy sections. The blade of damper is made of aluminum alloy sheet. The lever is made of aluminum alloy sections. The heavy hammer and rotation shaft are made of high-quality carbon structural steel. The bearing is made of brass material.

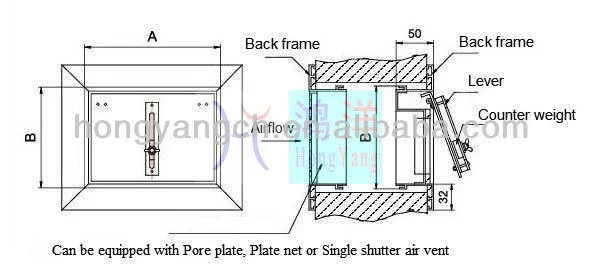

4.    The back frame can be equipped with hole plate, plate net or single shutter air vent, etc. , but please definitely tell us which kind you need.
5.    The surface is of original color of aluminum (silver white), but it can be changed to other color by spraying plastic 6. Specification and dimension: or paint according to client’s requirement.
6.    Specification and dimension:

Model	Specification	Overall Dimension (mm)	Positive pressure control scope (Pa)	Air output (m/h)
HY-FYY-1	400 x 150	409 x 209	4.91 - 29.43	115 - 600
HY-FYY-2	600 x 150	609 x 209	4.91 - 29.43	125 - 900
HY-FYY-3	820 x 170	829 x 229	4.91 - 29.43	360 - 1200

HY-F series volume/air damper products
