72kw heat pump water cooled scroll water chiller

Company Introduction

Guangdong HeadPower Air Conditioning is a modernized professional enerprise engaging in the manufacture of cental air conditioners. Since we founded in 2001, based on social development needs , we are committed to upgrade of technological innovation, continuously forge ahead and create new brilliance. We has rich experience in design and manufacturing of refrigeration dehumidifiers.

All products have passed ISO 9001 Certificate and ISO 14001 Certificate, some  equipments have CE Certificate and CCS Certificate as well. Meanwhile, our company have a number of invention patents (Patent NO.: ZL200910246621.7,  ZL200910246620.2)  and utility model patents (Patent NO.: ZL201120547872.1, ZL201220043474.0, ZL201220124504.0, ZL2009920273841.4 and ZL200920273842.9), and participate in setting HVAC industry standards.

Head-Power is also the secretariat of Guangdong HVAC and Purification Equipment Standardization Technical Committee.

Product Features:

High performance hermetic scroll compressor and multi-system optimized design ensure the unit's coefficient of performance(COP value) is up to 5.4 during refrigeration or up to 4.5 during heat supply.

Excellent partial load characteristics. The unit can run normally even in lower refrigeraion output, and the microcomputer control system is able to rationally control the modulus running, meanwhile the refrigeration output of the modulus can be regulated by starting a number of compressors, therefore high-efficient running can be achieved even in the scope of low loads, ensuring the optimal matching of the output and needed refrigeration and minimizing energy consumption.

In addition, for the business plazas or office buildings which are leased, sold or used in separate floors, when smaller cold or heat loads are required for individual rooms, using traditional central air conditioner is not only a great waste of energy, but impairs the unit. In these cases, modular units are the best choice.

Smaller size and compact structure(especially suitable for restructring works). Modular design idea is incorporated into all parts of the unit; pipes and core parts of the unit enjoy rational arrangement; the unit is of smaller sizes, light weight(a single module weight 280-560kg only), covers smaller area; meanwhile it can moved freely without being affected by external construcion conditions, especially suitable for restructuring works.

Modular unit design and picked parts.Such three functions as refrigeration, heating and provision of living water can be performed.One unit having three functions, refrigeration, heating and provision of living water can be performed.

The unit enjoys lower overall running noise(56-60dB).High-quality compressor and powerful external sound absorption housing are used and achieve super-low noise running.The unit is delivered after refrigerant and compressor lubricating oil are filled and maters are calibrated, and it can be put into use after onsite assembly, pipe erection and electric wire connection.

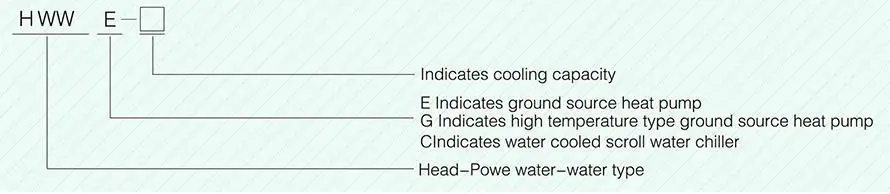

Model Expressing:

Details of scroll-type water(ground) source heat pump chiller:

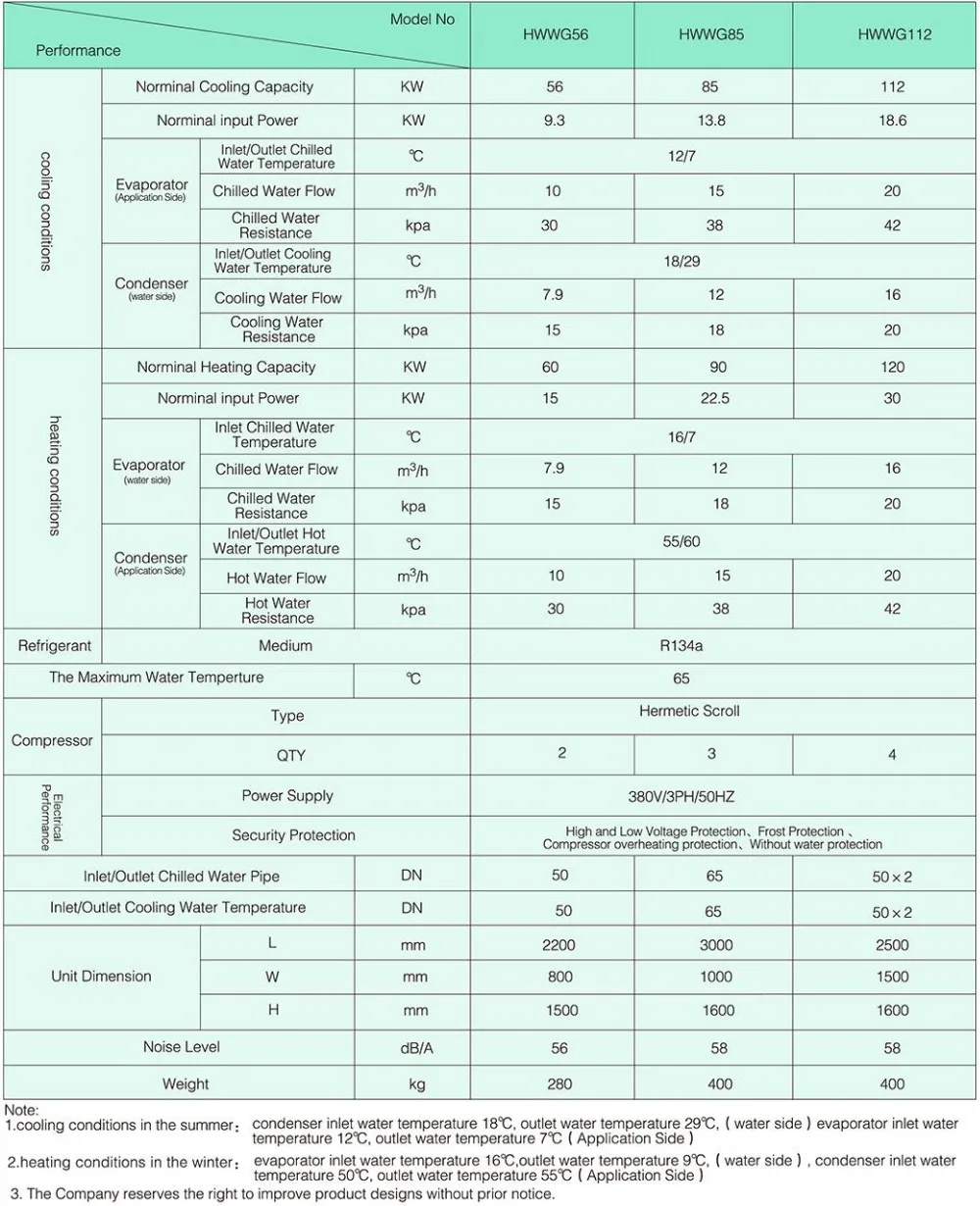

Details of high temperature type water source heat pump scroll water chiller:

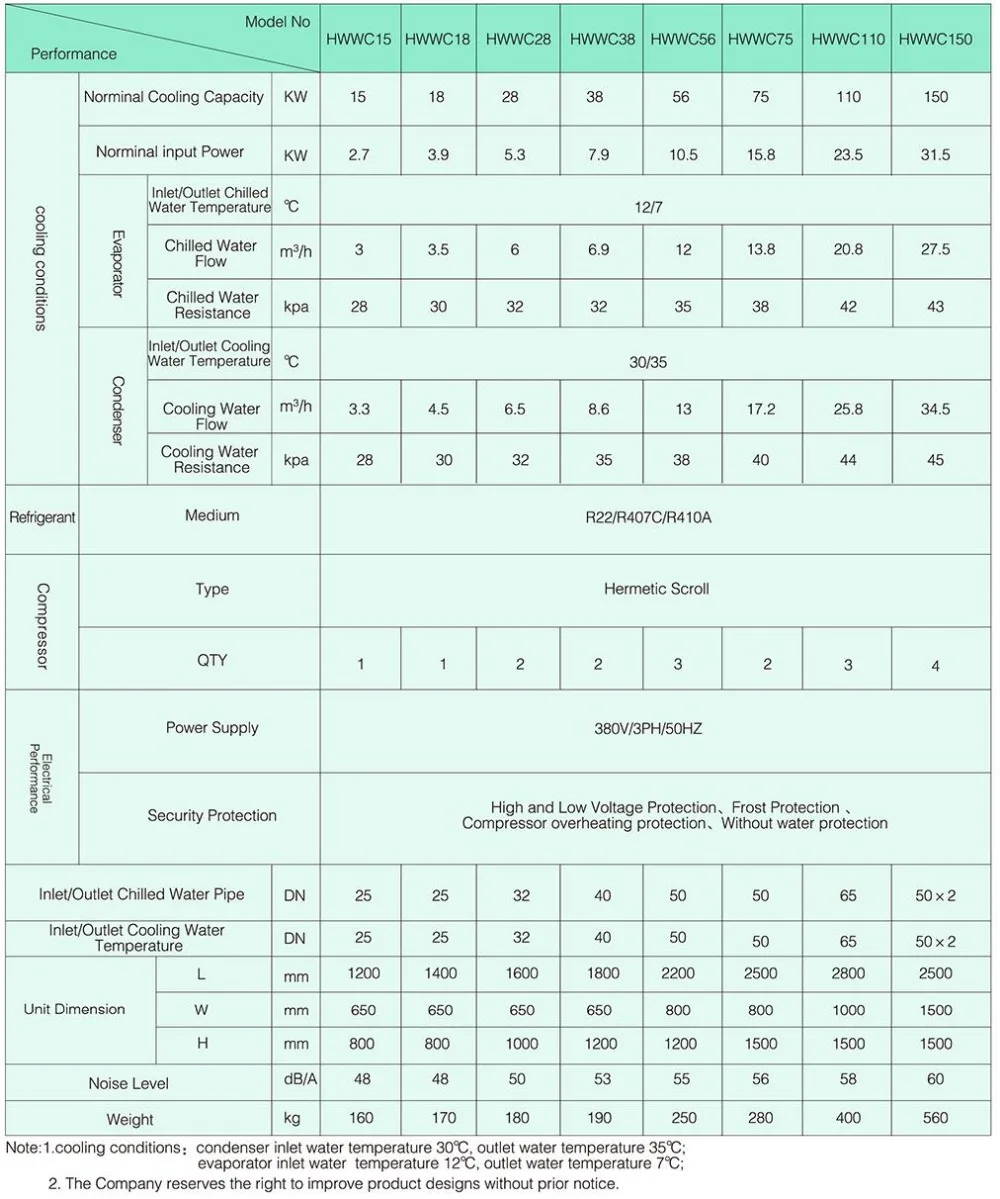

Details of water cooled scroll water chiller:

Packaging

Package:

Our project:





Our fair:
