Suitable for need winter heatingplaces air cooled multi water chiller with heat recover

Company Introduction

Guangdong HeadPower Air Conditioning is a modernized professional enerprise engaging in the manufacture of cental air conditioners. Since we founded in 2001, based on social development needs , we are committed to upgrade of technological innovation, continuously forge ahead and create new brilliance. We has rich experience in design and manufacturing of refrigeration dehumidifiers.

All products have passed ISO 9001 Certificate and ISO 14001 Certificate, some  equipments have CE Certificate and CCS Certificate as well. Meanwhile, our company have a number of invention patents (Patent NO.: ZL200910246621.7,  ZL200910246620.2)  and utility model patents (Patent NO.: ZL201120547872.1, ZL201220043474.0, ZL201220124504.0, ZL2009920273841.4 and ZL200920273842.9), and participate in setting HVAC industry standards.

Head-Power is also the secretariat of Guangdong HVAC and Purification Equipment Standardization Technical Committee.

Product Features

Excellent performance.The main body is equipped with semi-hermetic screw compressor, intergrating the motor, without worrying about shaft seal leakage.The single or more compressors are provided with startup-shutdown cycle control program so as to uniformly load parts and extend service life.Multiple refrigerating circuits are provided for the unit, and when one circuit is under maintenance, other circuits are able to run normally as mutal standby.Unload depressurized start is provided for the compressors to prevent the impact on the power grid.Ultra-low noise turbine blade design.V-shaped appearance provides better heat dissipation.

Exclusive high-temperature unit.The high-temperature unit is able to provide 55-60℃ air conditioner hot water, and the heat recycle type provides water for living, which conform to the Head-Power's high requirements on energy saving.

Easy assembly.The unit enjoys compact structure, covers small area, saves machine room space; it almost not vibrates due to the provision of foundation anti-vibrating measure.Upon delivery of the unit,R22 refrigerant and lubricating oil have been filled into it, hen it's only necessary to connect the evaporator water pipe during assembly, saving time and cost.

Lower running and maintenance cost. Intelligent program control can be achieved for the unit according to the

load demand:100%,75%,50%,25%(or start),0 and stepless adjustment, reducing energy consumption. Total parts number of screw compressor is only 1/10 that of the reciprocating compressor, enabling the unit to have simple structure and less venerable parts, without the use of air intake and exhaust valves, not sensible to wet stroke and extremely low fault rate.Failure-free operation time of the screw compressor is up to 40,000 hours.

Complete safty protection.

Pressure protection:High and low-pressure protecting devices

Motor protection:Voltage-loss protection, phase-loss protection, inverse phase protection and over-heat protection.

Anti-freezing protection:The unit will stop running in case of excessively low cooling water temperature

Safety value protection:When the refrigerant pressure exceeds a certain value, the safety value will be turned on automatically.

Above device protections ensure the safe and reliable running of the unit.

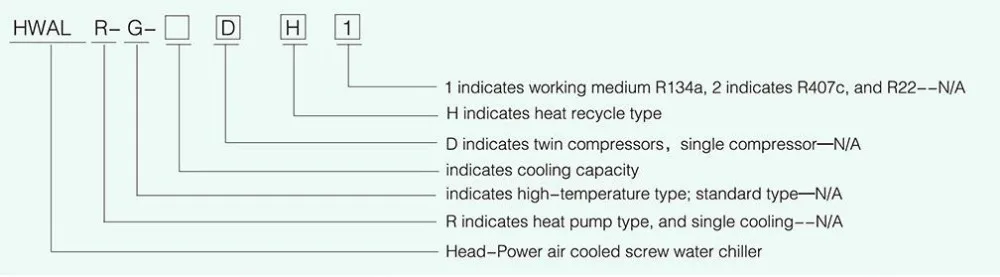

Expressing of models:

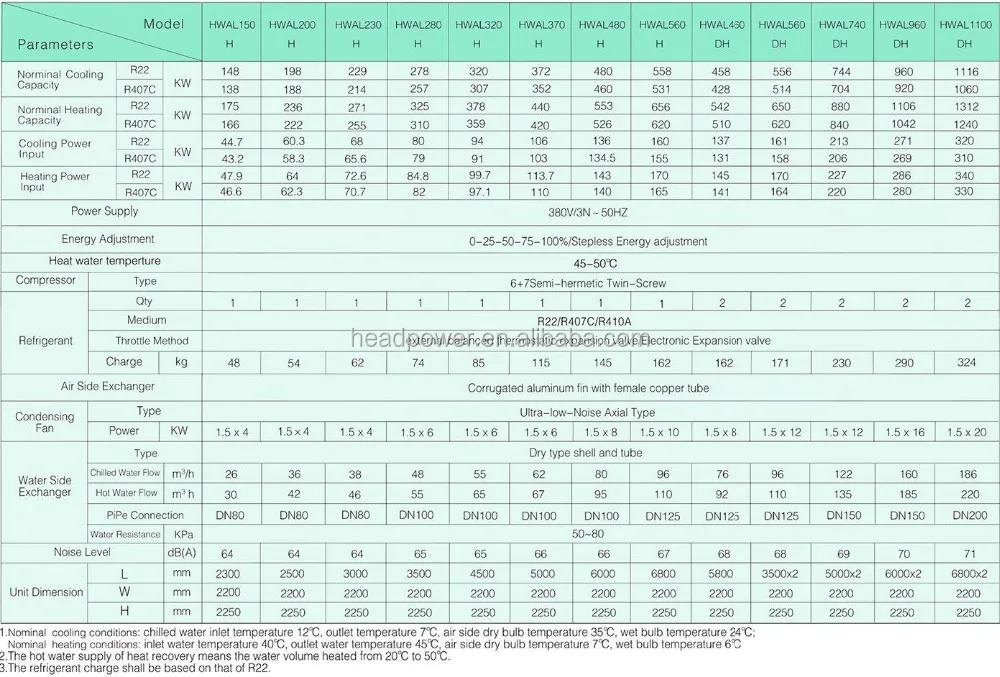

Details of Air Cooled Screw Water Chiller/Heat Pump(R407C/R410A/R22):

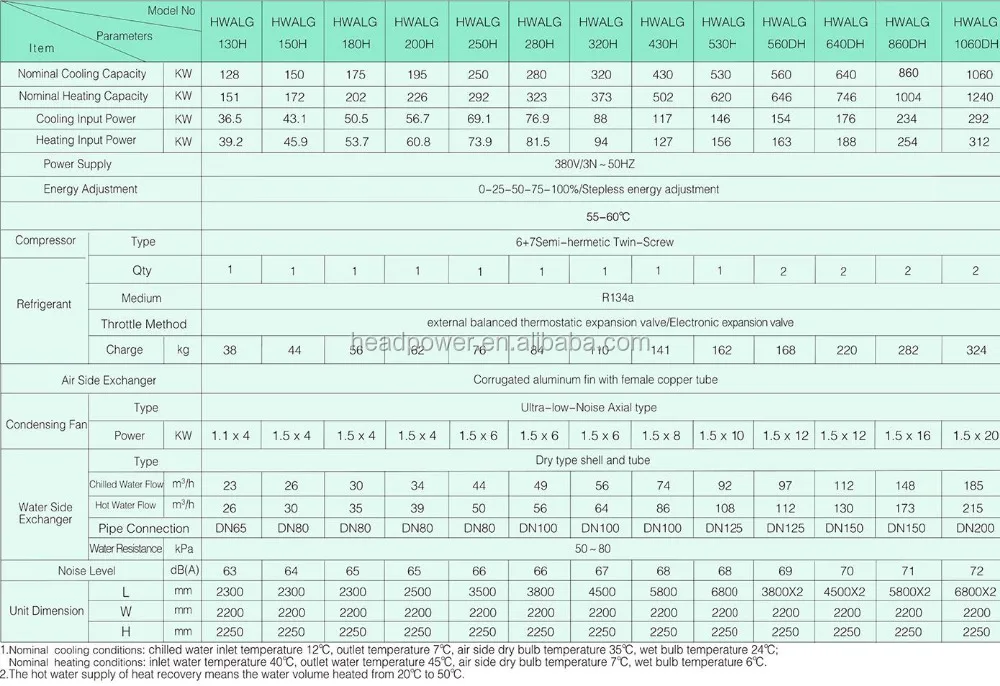

Details of Air Cooled Screw Water Chiller/Heat Pump(R134A)

Packaging

Package:

Our project:





Our fair:
