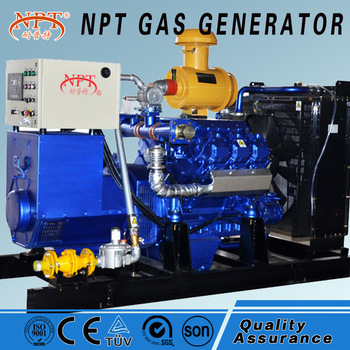

CE Approved 100kw oil field gas generator set

Price:

US 1000-5000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Month

Port:

Qingdao

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

NPT

Products Model:

100GFT

Products Details
Company Profile

Quick Details

Brand Name: NPT

Model Number: 100GFT

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: seaworthy package
Delivery Detail: 30 days

Specifications

CE Approved 100kw oil field gas generator set

Generating set general Model		100GFT
Structure		integral
Exciting method		AVR Brushless
Rated Power (kW)		100
Rated Current(A)		180
Rated Voltage(V)		400/230
Rated Frequency(Hz)		50
Rated Power Factor		0.8 LAG
No load voltage setting range		95%-105%
Steady state voltage regulation rate		≤±1%
Transient state voltage regulation rate		≤-15%—+20%
Voltage fluctuation rate		≤3s
Steady state frequency regulation rate		≤±0.5%
Transient state frequency regulation rate		≤±10%
Frequency stabilization time		≤5s
Line-voltage waveform sinusoidal distortion rate		≤2.5%
Gas Engine	Model	NW116D12
	Type	In line, 4 strokes, electric control ignition, pre-mixed stoichiometry burn
	Cylinder number	6
	Bore x Stroke (mm)	126X155
	Total displacement (L)	11.6
	Rated Power (kW)	120
	Rated Speed (r/min)	1500/1800
	Speed Regulation Mode	Electrical
	Starting Mode	Electrical
	Fuel type	Natural gas/biogas
Overall dimension (L x W x H)(mm)		2850X1100X1800
Net weight (kg)		2100

Specification:

1.CE, ISO certificate 10kw to 1000kw.

2.over 20 years' design and research experience

3.high quality,fair price

4.safety,reliable service

Genset working condition:

Acceptable working conditions:

Ambient temperature : -10°C~+40°C (antifreeze or preheater needed for below 0°C)

Relative humidity:<90%(20°C)

Altitude:≤1000m

Normal working conditions:

Genset can run at rated power on the conditions:

Atmospheric Pressure: 100kPa, Ambient Temp: 20°C, Relative Humidity: 30%.

Applied gas:

Natural Gas, Biogas, LPG, Landfill gas, Oil field gas, Syngas, Coal bed gas etc

Acceptable fuel gas pressure: 5~50kPa

CH4 content: for natural gas≥85% CH4 content:for biogas≥55%

Gas heat value≥5500kcal/Nm3 (23MJ/Nm3 ). Genset output power will increase as the gas heat value increase, if use low heat value gas for fuel (Heat value<5500kcal/Nm3, it will decrease the power efficiency.

Gas doesn’t include free water or free materials (the size of impurities should be less than 5μm.)

H2S content≤20mg/Nm3

NH3 content≤20mg/Nm3

Impurities content≤30mg/Nm3;size≤5μm

Water content≤40g/Nm3, no free water.

Standard Scope of Supply:

1. Brand new gas engine, 90% parts include engine body , crank shaft, cam shaft, piston, cylinder head, etc

2. Brand new brushless Stamford, Leroy Somer ,Marathon ,Meec Alte(Italy)alternator

3. Rating: 3 phases 4 lines. 400/230V, 50 HZ , 1500rpm, 0.8PF, IP22-23, Insulation class H

4. Radiator for 40°C/50°C ambient temperature

5. Ignition system adopted USA Woodward

6. Emergency stop mounted

7. Battery,Battery cable and Battery charger

8. Standard tool box

9. Standard Accessory for installation (include bellows,silencer,flange,asbestos pad,Anti-rust water,screw )

10. Gas Train include Regulator valve,Electromagnetic Valve, Fire arrestor,Ball Valve (Chinese brand)

Accessories list

1. Maintenance Operation manual

2. Quality certificate, Gen-sets ex-factory testing report

Optional:

1. Sound-proof canopy

2. CHP system

3. Grid parallel system

4. Remote radiator

5. Auto oil filling system

6. Water heater

7. Oil heater

8. Gas leaking detector

9. Flame detector

10. Gas scrubber

Certificate

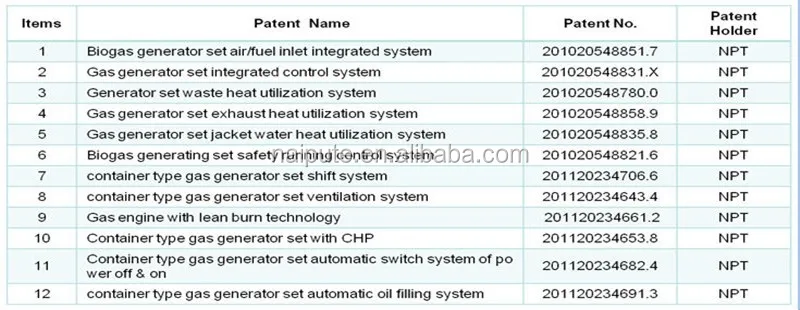

Patent

Different type of gas generator

Packaging and shipping of gas generator

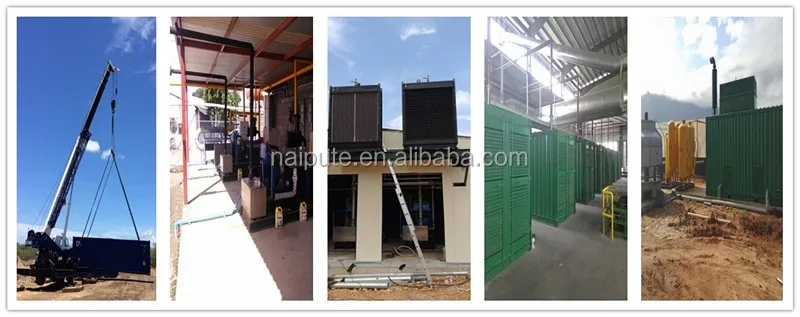

Project site of gas generator

customers visit of gas generaor
