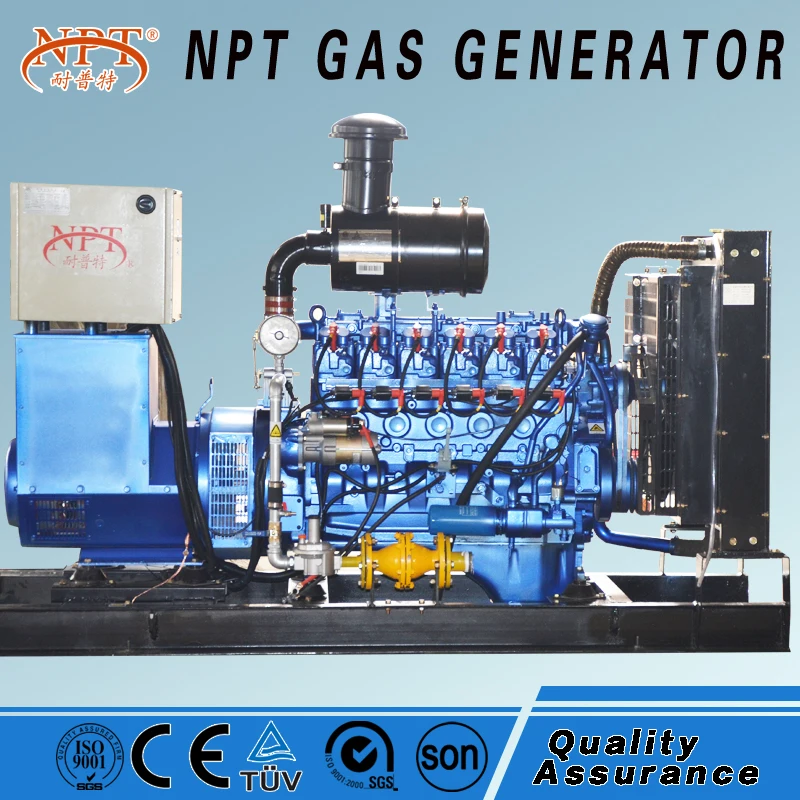

50kW Biogas generator set with sound proof canopy

                     Technical parameter for 50kW  gas generator set

Function :

1. Adopt Genset controller with LCD display, taking microprocessor as the core.

2. Adopt ATS( automatic transfer switch) to achieve the automatic transfer from the generated electricity to grid electricity

3. The monitor and display on the voltage, current, frequency, active power, apparent power, power factor of the generated electricity /grid electricity

4. The monitor and display on the genset’s water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts

5. Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc.

Optional devices :

CHP device, Soundproof cabinet, automatic grid parallel connection device, emergency cooling system etc

Application area:

Natural gas generator : Pipeline natural gas, liquid natural gas (LNG),coal mine industry, crude oil industry

Biogas generator : dairy and poultry farm, food processing ( starch, alcohol, palm oil ),industrial waste, Bio garbage processing, landfill

LPG generator : Crude oil industry

Biomass generator: agriculture straw, wood chips etc.

Main tests before delivery :

a) Each genset will be tested more than 4 hours totally. (idleload, load, fully load and 10% overload)

b) Noise level test.

c) Operation of the various meters on the control panel.

d) The gas generating sets appearance and all marks are checked .

To further meet your needs, we offer personalized products and services as follows:

1.Gas genset heat recovery project (genset heat recovery, heat recovery steam generator boilers);

2.Silent-type gas generator;

3.Gas Generator Set with the functions of automatic start, automatic grid, automatic load transfer, remote communications, control, monitoring(enables mobile control unit open, shut down and data acquisition)

Certifications :

Patent list :

After-sale service :
