Brand Name: CRYOTEK
Model Number: CRL06.0-CMY-(D)
Place of Origin: Jiangsu, China (Mainland)
Sure outdoor R404a Refrigerant 6 hp Condensing Unit
CRL Condensing Unit for Refrigeration
Brief Introduction:
Application for: -Convenience store -Small walk-in cold room |
iCool Intelligent Management Syetem: -Wireless/Blue tooth connections -Remoto control/monitor via "Cloud" technology |
Super Quite: -DC fan motors available for lower noise level |
Min.Order Quantity: 1 Unit, Batch purchase with cheaper price |
FOB Price: US $150 - 600 / Unit All price are standard with AC condensing fans All price exclude wireless touchable screen |
Supply Ability: 200 Units pre Month 2500 Units per Year |
|
||
Payment Terms: L/C, T/T, Western Union |
Port: Shanghai |
General Packaging: Carton box + pallet |
More Details:

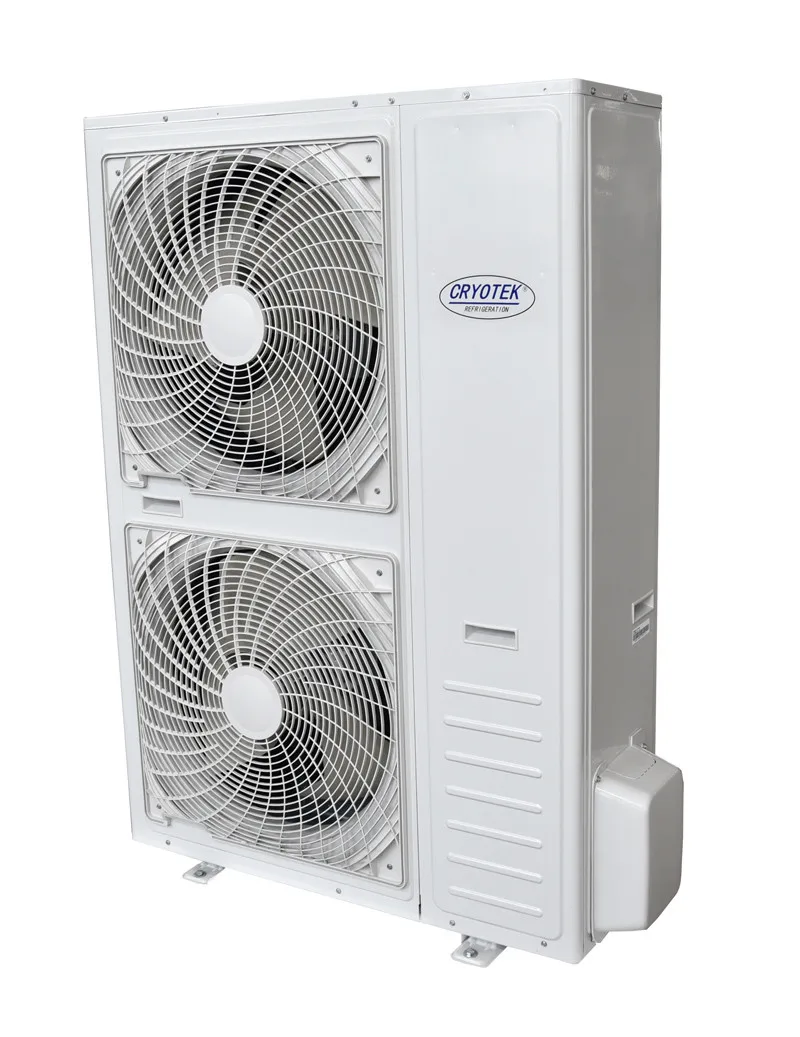

1. Product Image | ||
![]() |
||
2. Design Features | ||
The first condensing unit with Internet Plus & Cloud Technology |
||
-Local connection by Bluetooth: facilitate the service man to check the running data, room temperature and alarms |
-Monitoring the data of several units and room temperature by one wireless display monitor
|
-Monitoring from remote by “cloud” technology.
|
Energy saving: |
||
-The highest COP available in the market |
- Digital Scroll, 10%-100% steeples control | - DC Motors optional: lower noise, lower energy consumption |
- Vapor injection technology helps to save 15%-30% energy consumption comparing with normal scroll or liquid injection | -Energy Saving /Low Noise Dual Running Modes meet different requirements | |
Quiet: | ||
-DC Inverter condensing fans + noise control technology in the night can bring down to 55 db | ||
High Reliability: | ||
-Monitoring various parameters including suction / discharge / ambient / cold room temperature, ampere and power consumption, pre- detect any potential breakdowns | ||
Easy Installation: | ||
-Intelligent control board is connected with touchable screen by wireless technology, no cables needed at jobsite, easy for installation on the ground or on the wall | ||

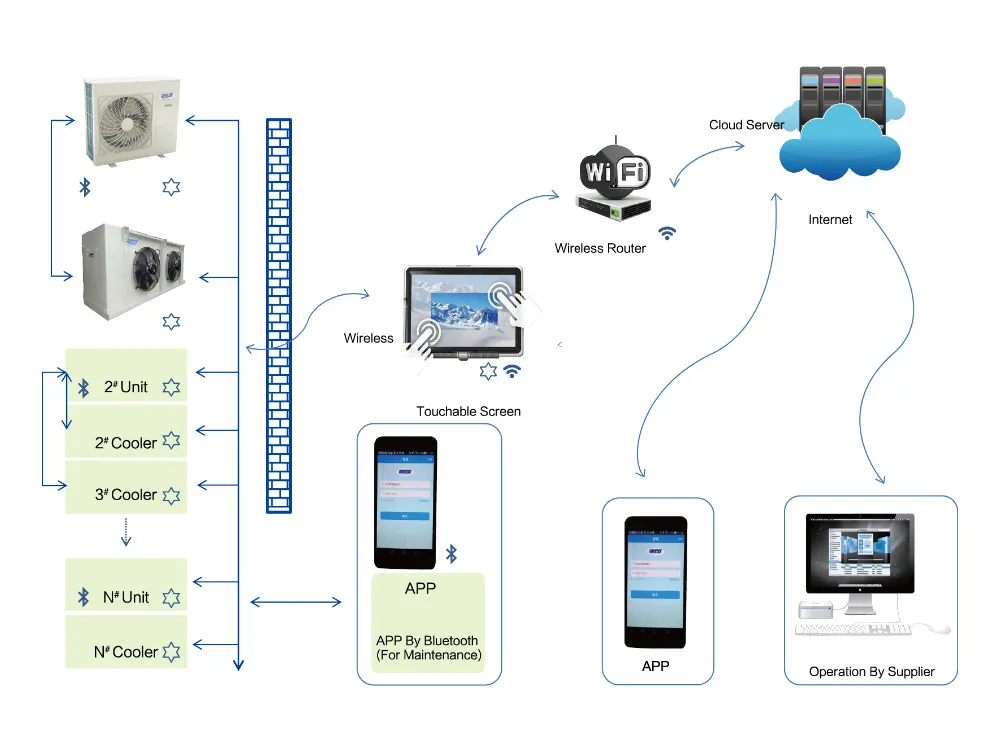

3.Intelligent Managment Sytem | ||
![]() |
||
4.Main Functionalities | ||
-All running parameters are closely monitored by Internet of Things technology |
![]() |
|
-Refrigeration unit, cloud server and APP on mobiles are smoothly connected each other through WIFI | ||
-The end user can check the key running parameters through APP on mobile, or modify the key parameters reversely |
||
-All historical running parameters are recorded by Cloud background server, professional engineers can evaluate the running conditions by remote diagnosis |
||
|
||

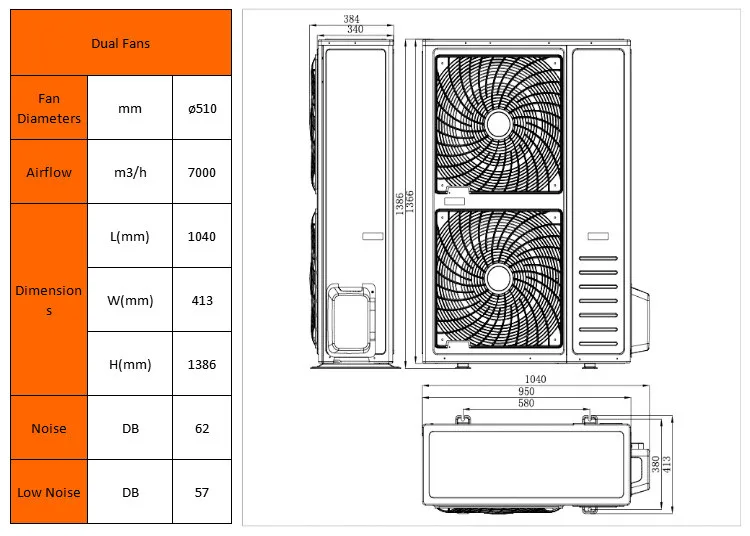

5.Dimensions of CRL out Units | ||
Dual Fan | ||
![]() |

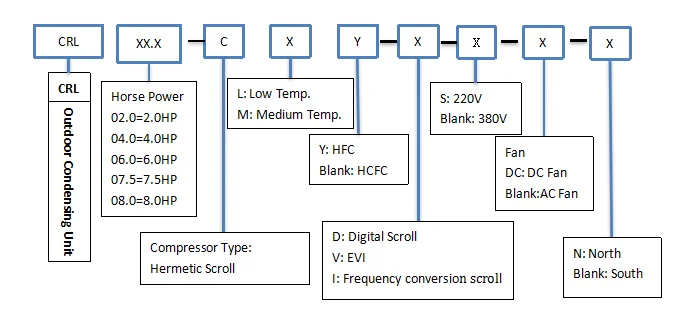

Nommenclature

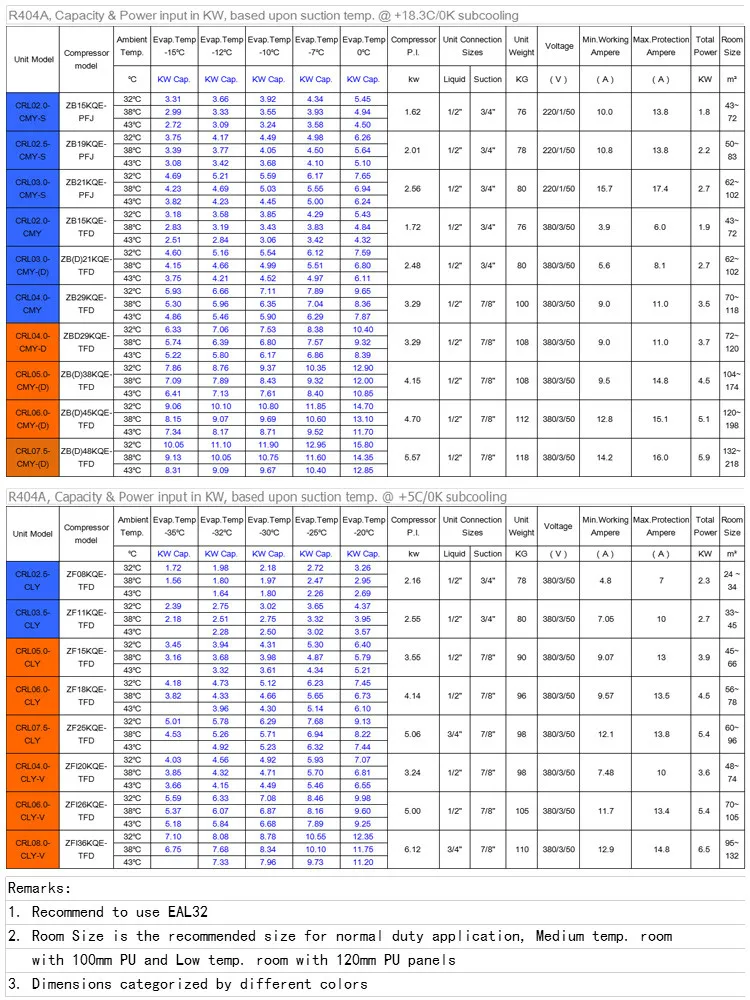

Technical Data
![]() |
|
Company Advantages(Core competence:) | |
1.Over 11+ years of professional refrigeration products designing(12 patents), manufacturing and application knowledge and experience in supermarket, convenience store and cold room.

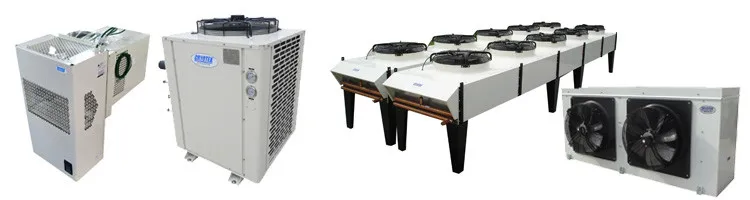

2.Wide range of products with Freon, CO2, Amonia refrigerants: condensing unit, parallel compressor rack with scroll, reciprocating and screw compressor, air-cooled condenser, unit coolers, pressure vessels.
3.Products long used by top clients from all over the world such as: Disney Land, Wal-Mart, Metro, Carrefour, Havi Food, Sky Chef and Bosch. |
|
![]() |
The Exhibitions | ||
![]() |
||
Certificate |
![]() |
Manufacturing |
![]() |
Trade |
![]() |
-Delivery Time: 25-35 days after payment receipt confirmed; -Packing: Stand export packing,or customized packing as your request; -Professional goods shipping forwarder; |
