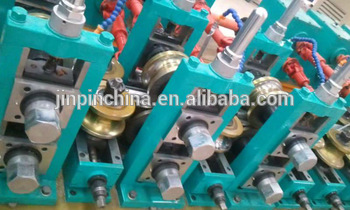

High frequency straight weld tube equipment

Technical parameters:

1)      Material: low carbon steel

2)      Mechanical properties: σB≤520mpa; σS≤340mpa

3)      Coil ID: φ480-φ520mm

4)      Coil OD: φ900-φ1800mm

5)      Coil weight: ≤3 tons

6)      Width: 230-380mm

7)      Installed capacity: approx. 700KVA

8)      Compressed air capacity: 2m3/min    4-7Kg/cm2

9)      Water consumption: 20tons/hr

10)  Water consumption for HF: 40tons/hr

11)  Workshop: height(6M min)(from crane to floor) x width(12M) x length(80M).

Finished product information:

1)      Round pipe: φ76-φ127mm

2)      Square pipe: 60×60mm-100×100 mm

3)      Rectangular pipe: 80×40mm-150×50mm

4)      Wall thickness: 1.5-3.0mm (round pipe); 1.5-2.5mm (square, rectangular pipe)

Production flow:

uncoiling → cutting and welding → accumulator →forming, HF welding, deburring,

cooling, sizing, straightening → STD flying saw → discharge → checking and

collecting →packing→weighing→marking→storage

FAQ:

Q:Are you manufacturer?
A:Yes,we are manufacturer.We have our own technical team.Welcome to visit us.

Q:What kind o f payment term you can do?
A:We are flexible about payment terms,we can also help you on financing,please   contact us for details.

Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings,material information,your special requirements.

Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.

Q:How do you do QA?
A:We have special team do strict QA,this is our strengths:
(1)Every gear box will be tested for 8 hours with oil inside to guarantee there is no leak.
(2)Every shaft will be inspected for the centering jumpiness.
(3)Every roller will be checked to make sure its in the range of tolerance critical parts will be inspected for all dimensions.

Q:Why I should choose you,what are the differences between you and other Chinese suppliers?
A:We are concentrate on this area for more than ten years.

Pre-sale:If the customer can not provide detailed technical information,our engineer will go to the customer’s plant,draw precise drawings after measuring unit,to meet your production requirement.

After-sale:Our strong team of engineers and experienced technicians can provide you with installation instructions,operating instructions,quality control guidance
