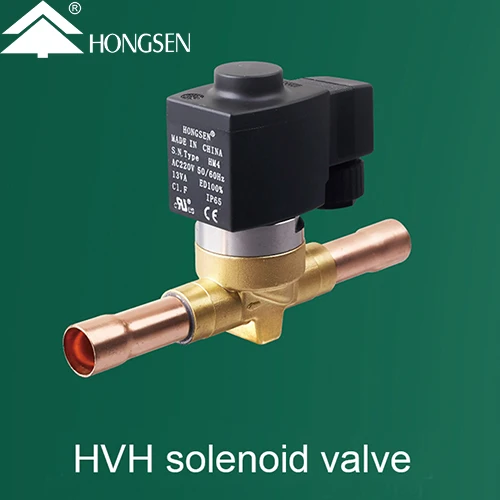

HVH Piston Type Solenoid Valve For Refrigeration System

FOB Price:

US 8-10 / Piece

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

500 Piece/Pieces per Week

Port:

Ningbo/Shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

Hongsen

Products Model:

HVH Piston Type Solenoid Valve

Products Details
Company Profile

Quick Details

Brand Name: Hongsen

Model Number: HVH Piston Type Solenoid Valve

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Hongsen packing or Neutral packing
Delivery Detail: 15~30 Days

Specifications

Product Description:

Model HVH piston type solenoid valve is a twice open-type solenoid valve to be suitable to one-way flow.
Model HVH piston type solenoid valve is used on the liquid, air suction and not vapor pipes of the refrigeration, cold storage and air conditioning facilities.
The coil of varies voltages is available for Model HVH piston type solenoid valve with a universal valve body.
Model HVH piston type solenoid valve could be supplied in whole or in split means the valve body and coil could be supplied

Product Model:

Model	Size	P(bar)		Max Operating Pressure(bar)	Kv(m2/h)
Model	Weld Connection	Min.	MOPD LiquidMOP	Max Operating Pressure(bar)	Kv(m2/h)
HVH3-2T	1/4ODF	0.05	31	45	0.27
HVH8-3T	3/8ODF	0.05	31	45	0.8
HVH10-4T	1/2ODF	0.05	31	45	1.4
HVH10-5T	5/8ODF	0.05	31	45	1.9
HVH15-6T	3/4ODF	0.05	31	45	2.6
HVH10-7T	7/8ODF	0.05	31	45	2.8

1) Kv value: The flow rate (m³/h) of water of density 1t/m³ passing through the solenoid valve with the pressure differential of 100 KPa.

2) The MOPD of gaseous medium is about 1 bar higher than that of liquid.

Model	Nominal Refrigerating Capacity kW
	Liquid			Air Suction			Hot Vapor
	R22/R407C	R134a	R404A/R507	R22/R407C	R134a	R404A/R507	R22/R407C	R134a	R404A/R507
HVH3	5.40	5.00	3.80	---	---	---	2.50	2.00	2.00
HVH8	16.10	14.80	11.20	1.80	1.30	1.60	7.40	5.90	6.00
HVH10	38.20	35.30	26.70	4.30	3.10	3.90	17.50	13.90	14.30
HVH15	52.30	48.30	36.500	5.90	4.20	5.30	24.00	19.00	19.60

The working condition the nominal refrigerating capacity of liquid and air suction is as follows:

Evaporation Temperature: te = -10℃;

Liquid Temperature before Valve: t1 = +25℃;

Pressure Drop after Solenoid Valve: P = 15KPa

The working condition the nominal refrigerating capacity of hot vapor is as follows:

Condensation Temperature: tc = +40℃;

Pressure Drop after Solenoid Valve: P = 80KPa;

Hot Vapor Temperature: th = +65℃;

Liquid Refrigerant Overcooding: t = 4K

Technical Parameters:

Applicable Refrigerants:	HCFC or HFC(Customer apecified)
Applicable Medium Temperature:	-30℃~+140℃
Application Ambient Temperature of Solenoid	-40℃~+65℃
Standard Voltage of Solenoid	AC 380V,AC 220V/50Hz(Customer design is available)
Allowable Voltage Fluctuation for Solenoid	+10%~15%
Connection of Solenoid	Standard 3-wire insert connector

Features:

The proprietary coil is an entirely sealed design with an effective waterproof performance and a long service life (IP65);
It has high capability to open the valve because its unique structure design and it could be operated properly even under unstable voltage;
Various AC and DC solenoid coils are available for choice;
Clip type solenoid coil is convenient in assembly and disassembly;
The high flow rate is assured by a big piston stroke.
