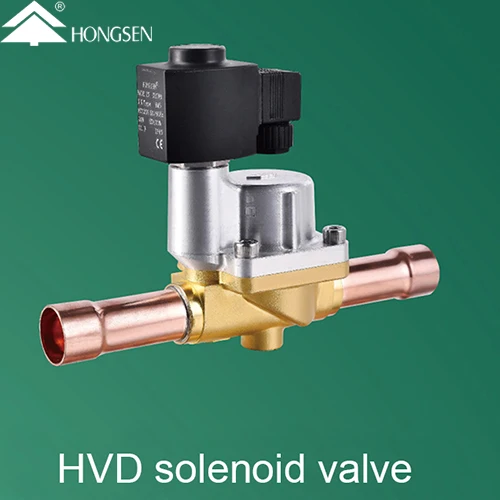

Model HVD Piston Type Solenoid Valve With 24W Solenoid Coil

·Model HVH piston type solenoid valve is a twice open-type solenoid valve to be suitable to one-way flow.

·Model HVH piston type solenoid valve is used on the liquid, air suction and hot vapor pipes of the refrigeration, cold storage and air conditioning facilities.

·The coil of varies voltages is available for Model HVH piston type solenoid valve with a universal valve body.

·Model HVH piston type solenoid valve could be supplied in whole or in split, that means valve body and coil could be supplied separately.

Product Model:

1) Kv value: The flow rate (m³/h) of water of density 1t/m³ passing through the solenoid valve with the pressure differential of 100 KPa.

2) The MOPD of gaseous medium is about 1 bar higher than that of liquid.

The working condition the nominal refrigerating capacity of liquid and air suction is as follows:

Evaporation Temperature: te = -10℃;

Liquid Temperature before Valve: t1 = +25℃;

Pressure Drop after Solenoid Valve: P = 15KPa

The working condition the nominal refrigerating capacity of hot vapor is as follows:

Condensation Temperature: tc = +40℃;

Pressure Drop after Solenoid Valve: P = 80KPa;

Hot Vapor Temperature: th = +65℃;

Liquid Refrigerant Overcooding: t = 4K

Technical Parameters:

Features:

The proprietary coil has perfect waterproof performance(IP65);

Using new material, it has perfect performance in high and low temperature application;

The 24W high-power solenoid coil has high capability to open the valve;

The high flow rate is assured by a big piston stroke;

Various AC and DC solenoid coils are available for choice;

1-5/8 inch is the maximum welded connection size.
