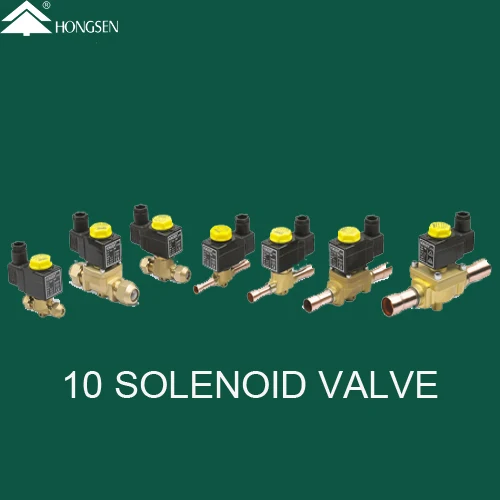

Model 10 Solenoid Valve With Flare and Welded

FOB Price:

US 8-10 / Piece

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

500 Piece/Pieces per Week

Port:

Ningbo/Shanghai

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

T/T,Western Union

Brand:

Hongsen

Products Model:

10 Solenoid Valve

Products Details
Company Profile

Quick Details

Brand Name: Hongsen

Model Number: 10 Solenoid Valve

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: Hongsen packing or Neutral packing
Delivery Detail: 15~30 Days

Specifications

Product Description:

·Model 10 solenoid valve is a direct-operated or servo-operated valve, which is applicable to one direction flow.

·Model 10 solenoid valve is used on the liquid, air suction or not vapor piping of a freezer, cold store and air conditioning unit.

·The valve seat of Model 10 solenoid valve is well sealed with perfect sealing performance.

·Model 10 solenoid valves with solenoid of different voltage are available.

·Both packed and separated Model 10 solenoid valves are available and it means the valve body could be supplied separately from the solenoid.

Product Model:

Model	Connection		Kv(m³/h)	Nominal Refrigerating Capacity kW(liquid)
	Flare	Welded		R22	HFC-134a	R404a/R502
1020-2	1/4 SAE	——	0.175	3.15	2.95	2.08
1028-2	——	14 ODF
1020-3	3/8 SAE	——	0.230	4.15	3.90	2.75
1028-3	——	3/8 ODF
1064-3	3/8 SAE	——	0.800	14.50	13.50	9.50
1068-3	——	3/8 ODF
1064-4	1/2 SAE	——	0.800	14.50	13.50	9.50
1068-5	——	1/2 ODf
1070-4	——	5/8 ODF
1078-4	1/2 SAE	——	2.200	39.60	37.10	26.20
1070-5	——	1/2 ODF
1070-5	5-8 SAE	——	2.610	47.00	44.00	31.00
1078-5	——	5/8 ODF
1078-6	——	3/4 ODF	4.300	77.50	72.045	51.10
1098-7	——	7/8 ODF	5.700	102.60	96.00	67.85

1) Kv: The flow rate (m³/h) of water of density 1 t/m³ passing through the solenoid valve under the pressure differential of 100 KPa.

2) The MOPD of gaseous medium is about 0.1 MPa higher than that of liquid.

Technical Parameters:

Applicable Refrigerant:	HCFC or HFC(Customer apecified)
Applicable Medium Temperature:	-30℃~+105℃
Max. Operating Pressure	3.0MPa
Min.Pressure Differential to Open Valve	Direct-operated:0.00MPa /Servo-operated:0.02Mpa
Max.Operating Pressure Differential(MOPD)	2.5MPa
Application Ambient Temperature of Solenoid	-40℃~+65℃
Standard Voltage of Solenoid	AC380V,AC220V/50HZ(Customer design is available)
Allowable Voltage Fluctuation for Solenoid	+10%~-15%
Connection of Solenoid	Standard 3-wire insert connector

Features:

Only NC type solenoid valve is available;

The max. design temperature is 105 ℃

8W solenoid and max. operating pressure differential (MOPD) is 2.5 MPa;

It is applicable to various applications in freezing, cold storage and air conditioner units;

The solenoid of different power supply are available;

The thread capped solenoid is easy to be manually mounted and dismounted;

The crack-proof solenoid is applicable to general ambient condition.

Zhejiang Hongsen Machinery Co.Lit is a company with more than 20 years' devote experience. Hongsen Machinery invests more in the technical upgrading and introduces advanced technology.

Now, Hongsen Machinery products enjoy good quality as similar as international leading level and the products sell well both at home and abroad including some leading OEMs.

Hongsen welcome you!

Hongsen Machinery covers a land area of 5000 square meters. There are over 300 staffs and workers including a specialty team of ten techicians. Hongsen Machinery has a close cooperation with the processors and experts in zhejiang university. Shanghai jiao tong university and tianjin university and several senior engineers of leading domestic OEMs are invited as the consultants of the company. A number of technical talents are trained in production,development and quality control and grow up in the company. At present,Hongsen Machinery is capable to manufacture multiple categories of refrigeration and A/C accessory parts such as solenoid valve series, ball valve series, sight glass series, expansion valve series and shut off valve series. Hongsen Machinery becomes one company intergrating R&D, production,and marketing into one.
