High efficiency copper tube beer cooler condenser

Offered Solution

• Straight or formed, L or U or O-shaped coils
• Smooth inner grooved tube or super-grooved tube with different diameters and thickness of wall
• Different approach of plain, corrugated or louvered fin profiles
• LCE Coating anti corrosion and antimicrobial protection
• High-quality powder paint

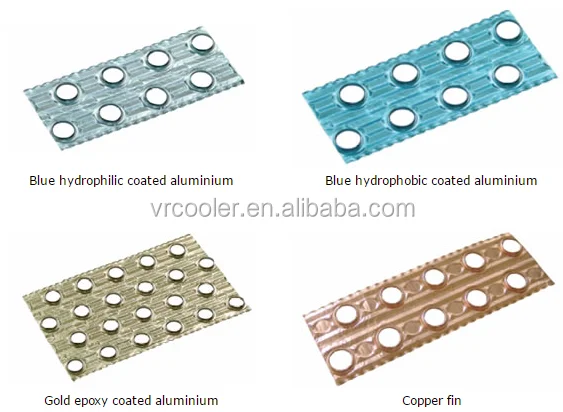

• Pre-coated epoxy (gold) or blue (hydrophilic) fin material is available
• Maximum of 10 mm fin spacing
• Defrosting slots are available in certain cases
• Coating anti corrosion and antimicrobial protection
• Pre-coated epoxy (gold) or blue (hydrophilic) fin material is available
• Circuiting for horizontal, vertical or combined use
• Circuiting with tripods and with sub-cooling sections available

Technical specification

TUBES

• Copper, Stainless steel, Aluminium, Hot dipping carbon steel, Titanium
• 5mm, 7 mm, 5/16", 3/8", 12 mm, 5/8"
• Smooth, Smooth thick-walled, Grooved, Supergrooved (deeper grooves)
• Connection to several circuits available

FINS

• Aluminium
• Hydrophilic
• Epoxy coated
• Copper
• Stainless steel
• Hot dipping carbon steel
• Titanium

CASING MATERIAL

• Thick. 1 – 3 mm
• Galvanized steel
• Aluminium
• Stainless steel
• Copper
• Brass

CASING STYLE

• End plates with or without collets
• Various design of side plates
• Fan plates (Galvanized steel and Aluminium up to 1,5 mm) with pressed collar for fan (16 possible diameters)
• Diffusers for involvement in pipeline

Compared with other competitors, our advantage is that we have usa market exchanger design software which Guentner and Cabero are using,  Vrcooler offers tailor-made heating and cooling product

Lead Time: 20 - 40 days
Payment Terms: 30% T/T payment in advance, 70% T/T payment before delivery
Packing Condition: Standard export packing or customized packaging
