stainless steel centrifugal hot water hot oil pump stainless steel centrifugal hot water hot oil pump

stainless steel centrifugal hot water hot oil pump

FOB Price:
Min.Order Quantity:
1 Twenty-Foot Container
Supply Ability:
5000 Twenty-Foot Container per Month
Port:
shanghai port
Place of Origin:
Jiangsu, China (Mainland)
Payment Terms:
D/A, D/P, T/T
Brand:
Yuan shin
Products Model:
RGZ-10
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Yuan shin

    Model Number: RGZ-10

    Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

  • Packaging Details: Each pump is packed in standard wooden case.
  • Delivery Detail: Shipped in 5 days after payment

Specifications



Pump



Product Description

RGZ hot oil /hot water centrifugal pump

♦♦ Detailed Introduction

RGZ stainless steel centrifugal hot water hot oil pump is widely used in TCL, leather processing machine, reaction kettle , wood processing machine and other area . The pump transfer the non flammable and explosion liquid without the particles, fiber.

♦♦ Technical Parameter



Type

Diameter

Motor

performance parameter

Pump Weight

(kg)



Power

(KW)



(Hp)

Voltage

(V)



Frequency

(Hz)



Speed

(r/min)



Max  Head

(m)



Max Capacity

(l/min)



RGZ-10

G1”,G1.2”

G1.5”

0.75

1

3ø-380V

50

2760

25

135

19

RGZ-10J

21

       RGZ-20

G1”,G1.2”

G1.5”

1.5

2

3ø-220

50

2760

27

160

24

       RGZ-20J

26

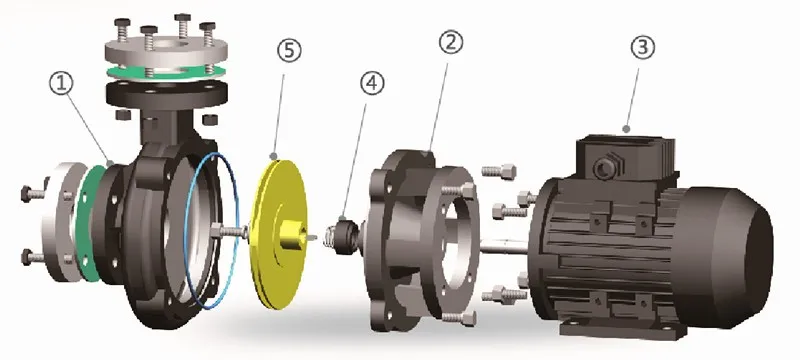

♦♦ Material



Item

Name

Material

Technical Feature

01

Pump Cover

Cast Iron

High Tensile , High Hardness , Bright , Superior Hydraulic Performance



02

Shaft Seal Base

03

Motor

H Varnished Wire+SUS Spindle +CRS

Inserting Line Automatically , Vacuum Paint Dipping,

SUS304 Spindle , F class Insulation , IP54, Imported High temperature Bearing

04

Mechanical Seal

 Carborundum +Graphite+Rubber+SUS spring

Heat-Resistant , Good Abrasion Performance, Stable Performance (Customizing According to the Medium )

05

Impeller

Copper

Precision Casting , High Density , High Manufacturing Precision , Superior Hydraulic Performance

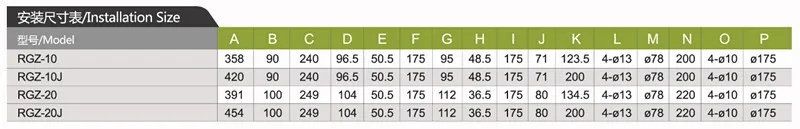

♦♦ Installing Drawing

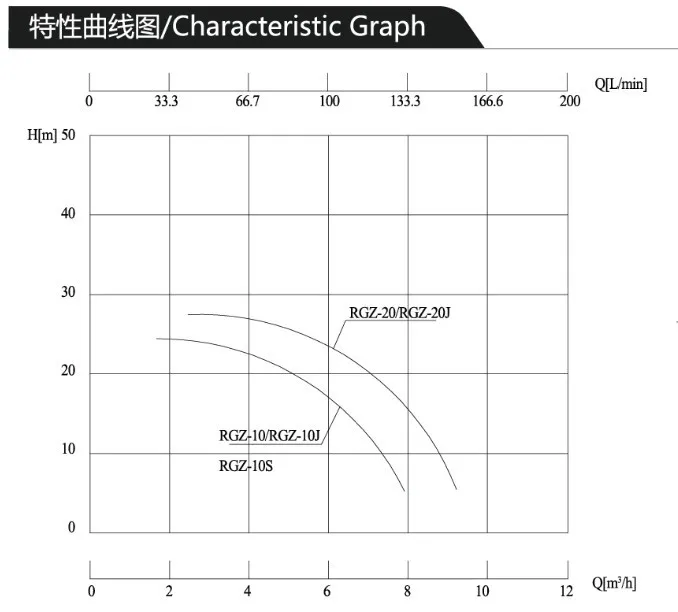

♦♦ Performance Chart



♦♦ Feature





Testing Base: The above characteristic testing is based on the water transferring with the normal

              speed under 20 degrees. The error of the capacity and head is about 10%,

              characters ‘error is about 10%. The pump characters change according to the

              difference of the liquid mediums’ proportion and density.

♦♦ Product Technical Characteristics





 Single Stage Impeller , Axial Suction , Radial water Absorption

 Compact Structure, Water and Pump and Motor Connecting directly ,Coaxial Mounting .

 Fine performance , High Efficiency

 Fast Flow , High Temperature Resistant ,Stable sealing performance

 Low Noisy ,Small Vibration

 Easy to Remove , Low repairing Cost

♦♦ Using Condition



Thermal Conductivity Water

+5℃ - +160℃

Thermal conductivity oil

+5℃ - +200℃

Ethyleneglycol

-35℃ - +120℃

The working temperature

-5℃ - +40℃

The maximum elevation

1000m

The maximum morking pressure

10bar



















Packaging & Shipping

♦♦ Trade Details



MOQ

1 sets

Port

Shanghai

Packaging

Standard wooden case and carbon

Payment

L/C, T/T, Western Union

Delivery

Within 10 days after receiving deposit

Shippment

By air, by sea, by truck, express



Our Services

♦♦ Our Service



1. According to your requirements, we supply you the high quality product with the best price, more better suggestions are offered to you.
2. We will arrange the delivery the product when receiving your deposite. Generally speaking, It will taked about 5 -10 days to arrange.
3. The warranty period is 1 years except the wear parts. We will supply you free replaced parts (except wear parts ) if the product is damaged caused by the machine itself during warranty period . For online instruction service is free. For the wear parts, we will supply you by the lowest price if necessary.



If you are interested in , please contact with me

Email : lois412@163.com

Phone: 0086-18550061324

Whatsapp: 0086-18550061324

Skype : susan3683
