Brand Name: Yuan shin
Model Number: WLY-07-200 pump
Place of Origin: Jiangsu, China (Mainland)
Pump
WL hot water /hot oil vertical vortex pump
♦♦ Detailed Introduction |
WL series German technologh vertical cantilever vortex pump pumps is widely used in TCL, rubber injection machine, machine tool cooling system , testing equipment and other area . The pump transfer the non flammable and explosion liquid without the particles, fiber.
♦♦ Technical Parameter |
Type |
Diameter |
Motor |
performance parameter |
Pump Weight (kg)
|
|||||
Power (KW) |
(Hp) |
Voltage (V)
|
Frequency (Hz)
|
Speed (r/min)
|
Max Head (m)
|
Max Capacity (l/min)
|
|||
WL-07-150 |
G3/4″ |
0.5 |
0.7 |
3ø-380 |
50 |
2760 |
38 |
38 |
9 |
WL-07-200 |
G3/4″ |
0.5 |
0.7 |
3ø-380 |
50 |
2760 |
38 |
38 |
10 |
WLY-07-200 |
G1/2″ |
11 |
|||||||
WL-10-150 |
G3/4″ |
0.75 |
1 |
3ø-380 |
50 |
2760 |
60 |
70 |
11.5 |
WL-10-200 |
G3/4″ |
0.75 |
1 |
3ø-380 |
50 |
2760 |
60 |
70 |
12 |
♦♦ Material |
Item |
Name |
Material |
Technical Feature |
01 |
Pump Cover |
Copper |
Brass Precision Casting and Forming, High Manufacturing Precision , Superior Hydraulic Performance |
02 |
Pump Body |
||
03 |
Motor |
H Varnished Wire+SUS Spindle +CRS |
Inserting Line Automatically , Vacuum Paint Dipping, F class Insulation , IP54, Imported High temperature Bearing |
04 |
Impeller |
Copper |
High Temperature Forging Forming , High Density , High Manufacturing Precision , Superior Hydraulic Performance |

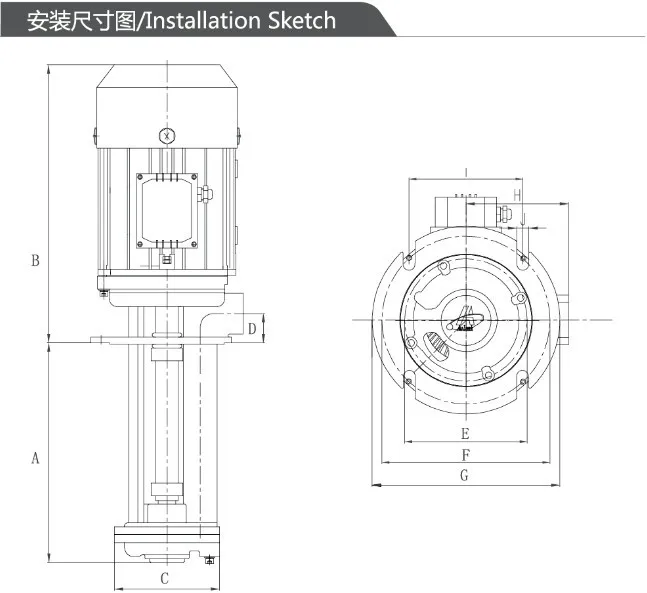

♦♦ Installing Drawing |

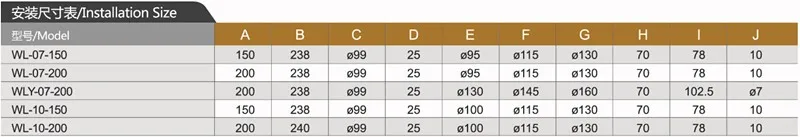

♦♦ Installation Size |
♦♦ Feature |
♦♦ Characteristics |
The pump body is made of brass
No Leakage
Precision Size , Fine Performance ,High Efficiency
Fine Appearance , Strong Stability
Thread Inlet and Outlet , Easy to Connect
♦♦ Using Condition |
Thermal Conductivity Water |
+5℃ - +160℃ |
Thermal conductivity oil |
+5℃ - +200℃ |
Ethyleneglycol |
-35℃ - +180℃ |
The working temperature |
-5℃ - +40℃ |
The maximum elevation |
1000m |
The maximum morking pressure |
10bar |
♦♦ Trade Details |
MOQ |
1 sets |
Port |
Shanghai |
Packaging |
Standard wooden case and carbon |
Payment |
L/C, T/T, Western Union |
Delivery |
Within 10 days after receiving deposit |
Shippment |
By air, by sea, by truck, express |
♦♦ Our Service |
1. According to your requirements, we supply you the high quality product with the best price, more better suggestions are offered to you.
2. We will arrange the delivery the product when receiving your deposite. Generally speaking, It will taked about 5 -10 days to arrange.
3. The warranty period is 1 years except the wear parts. We will supply you free replaced parts (except wear parts ) if the product is damaged caused by the machine itself during warranty period . For online instruction service is free. For the wear parts, we will supply you by the lowest price if necessary.
