Brand Name: Yuan shin
Model Number: WL
Place of Origin: Jiangsu, China (Mainland)
no leakage hot water vertical whirlpool pump
♦♦ Detailed Introduction |
WL series pumps is widely used in TCL, rubber injection machine, machine tool cooling system , testing equipment and other area . The pump transfer the non flammable and explosion liquid without the particles, fiber.
♦♦ Technical Parameter |
Type |
Diameter |
Motor |
performance parameter |
Pump Weight (kg)
|
|||||
Power (KW) |
(Hp) |
Voltage (V)
|
Frequency (Hz)
|
Speed (r/min)
|
Max Head (m)
|
Max Capacity (l/min)
|
|||
WL-07-150 |
G3/4″ |
0.5 |
0.7 |
3ø-380 |
50 |
2760 |
38 |
38 |
9 |
WL-07-200 |
G3/4″ |
0.5 |
0.7 |
3ø-380 |
50 |
2760 |
38 |
38 |
10 |
WLY-07-200 |
G1/2″ |
11 |
|||||||
WL-10-150 |
G3/4″ |
0.75 |
1 |
3ø-380 |
50 |
2760 |
60 |
70 |
11.5 |
WL-10-200 |
G3/4″ |
0.75 |
1 |
3ø-380 |
50 |
2760 |
60 |
70 |
12 |

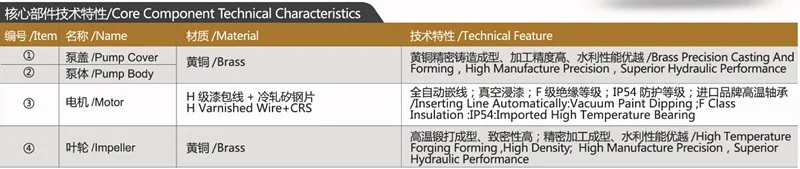

♦♦ Material |

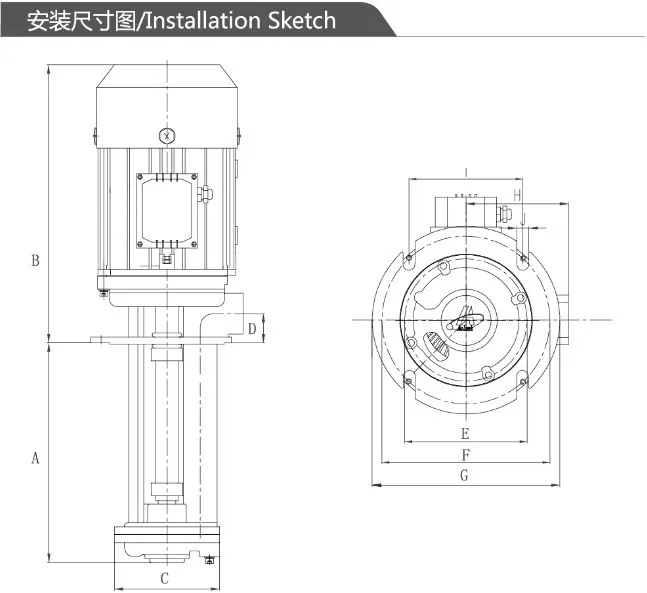

♦♦ Installing Drawing |

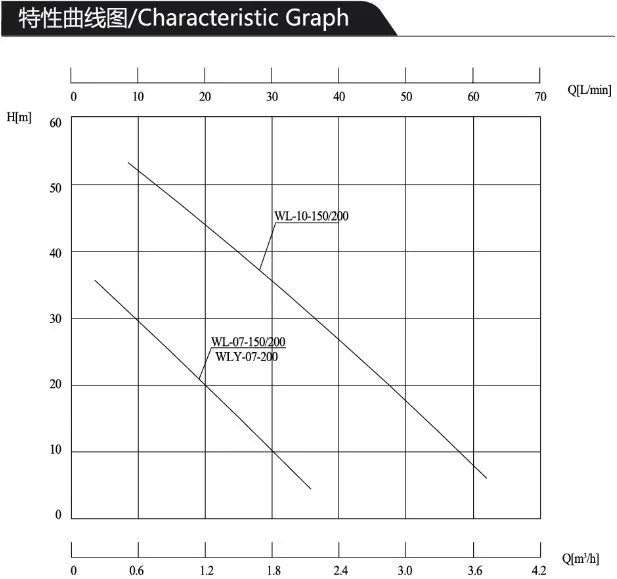

♦♦ Performance Chart |
♦♦ Using Condition |
Thermal Conductivity Water:+5℃ - +160℃
Thermal conductivity oil:+5℃ - +200℃
Ethyleneglycol:-35℃ - +180℃
The working temperature: -5℃ - +40℃
The maximum elevation:1000m
The maximum morking pressure:10bar
♦♦ Trade Details |
MOQ |
1 sets |
Port |
Shanghai |
Packaging |
Standard wooden case and carbon |
Payment |
L/C, T/T, Western Union |
Delivery |
Within 10 days after receiving deposit |
Shippment |
By air, by sea, by truck, express |
♦♦ Our Service |
1. According to your requirements, we supply you the high quality product with the best price, more better suggestions are offered to you.
2. We will arrange the delivery the product when receiving your deposite. Generally speaking, It will taked about 5 -10 days to arrange.
3. The warranty period is 1 years except the wear parts. We will supply you free replaced parts (except wear parts ) if the product is damaged caused by the machine itself during warranty period . For online instruction service is free. For the wear parts, we will supply you by the lowest price if necessary.
