low noisy hot water pump with germany technology in china

low noisy hot water pump with germany technology in china

FOB Price:

USD 10-420 / Set

Min.Order Quantity:

1 Twenty-Foot Container

Supply Ability:

5000 Twenty-Foot Container per Month

Port:

ShangHai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C, T/T, Western Union

Brand:

Yuan shin

Products Model:

WL-07-150, WL-07-200, WLY-07-200, WL-10-150

Products Details
Company Profile

Quick Details

Brand Name: Yuan shin

Model Number: WL-07-150, WL-07-200, WLY-07-200, WL-10-150

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: wooden case or carton
Delivery Detail: 5days after receive the payment

Specifications

Product Description

low noisy hot water pump

Detailed introduction:

1. WL series vertical high temperature pump is axial suction, vertical high temperature medium transferring circulating pump. The transferring medium is the water without the particle and fiber, such as water, conduction oil and glycol and so on.
2. The pump’s entrance soak in the circulating liquid, the exit adopts pipe screw connection, which has the advantages of no leak, fine appearance, high pump head, fast flowing speed, low noisy, stable performance.
3. This pump is widely used in rubber injection machine and equipment, mold temperature controller, machine tool cooling system.

Features:

1. The material of the pump is all the copper, fine appearance.
2. Precise connection, stable performance.
3. Low noisy , slight vibration
4. High lift fast flowing speed
5. The pump’s head is soaked in the circulating medium, which make sure no leak.
6. Headstand installing style, saving room, easy to repair and maintenance.

Application scope:

1. Rubber extruding equipments
2. Machine tool cooling system
3. Mold temperature controller
4. Rubber injection machine

Material of the pump:

1. Pump body: copper
2. Axle sleeve: graphite
3. Axis : 2cr13
4. Insulation level of the motor : F level
5. Impeller: copper
6. Protection level : IP54

Using condition:

High temperature water: + 5 ℃ ~ + 95 ℃

High temperature conduction oil : +5 ℃ ~ + 200 ℃

Glycol : -30 ℃ ~ + 180 ℃

Technical parameter:

Type	Flange Diameter	Motor (kw/Hp)	Voltage (V)	Frequency (Hz)	Rotation speed (r/min)	MAX pump Head (m)	Capacity (L/min)	Weight (kg)
WL-07-150	G3/4”(DN20)	0.55/0.75	3phase-380	50	2760	38	38	9
WL-07-200	G3/4”(DN20)	0.55/0.75	3phase-380	50	2760	38	38	10
WLY-07-200	G1/2”(DN15)	0.55/0.75	3phase-380	50	2760	38	38	11
WL-10-150	G3/4”(DN20)	0.75/1	3phase-380	50	2760	60	70	11.5

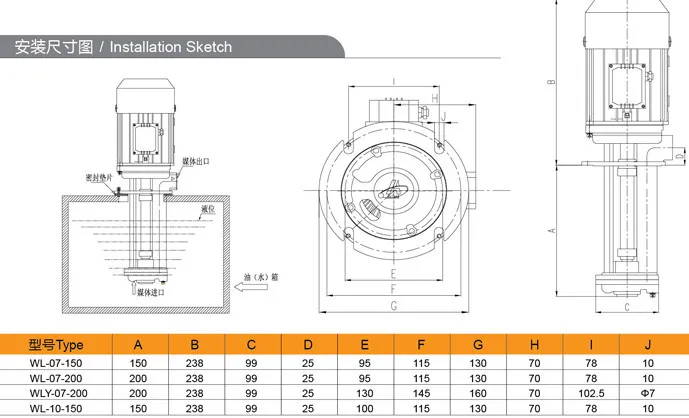

Installing Sketch:

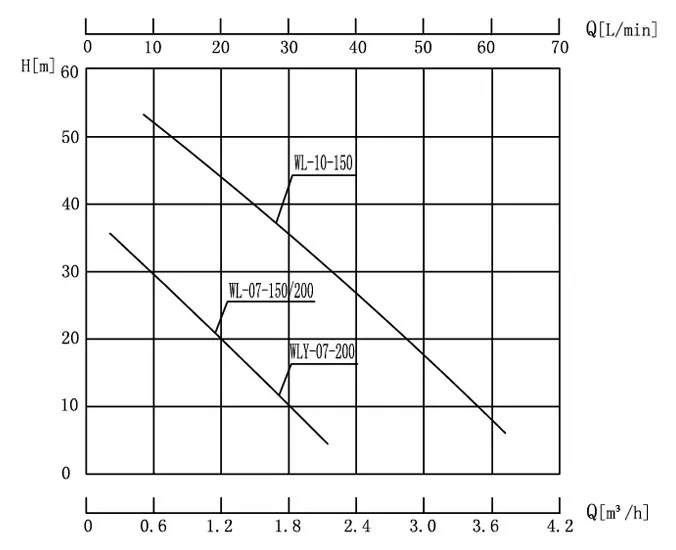

Performance chart:

The testing base

The above characteristic testing is based on the water transferring with the normal speed under 20 degrees. The error of the capacity and head is about 10%, characters ‘error is about 10%.

The pump characters change according to the difference of the liquid mediums’ proportion and density.
