Brand Name: Yuan shin
Model Number: WD-016/016S/07/10/20/33
Place of Origin: Jiangsu, China (Mainland)
No self priming high temperature vortex water pump for family use WD Series Pump
♦♦ Detailed Introduction |
WD series pump is widely used in medical sterilization , polyurethane foam , steam generator , small TCL , solar feed water , welding machine and other area
♦♦ Technical Parameter |
Type |
Diameter |
Motor |
Performance parameter |
Pump Weight (kg)
|
|||||
Power (KW) |
(Hp) |
Voltage(V)
|
Frequency(Hz)
|
Speed (r/min)
|
Max Head (m)
|
Max Capacity (l/min)
|
|||
WD-016 |
G1/4",G1/4" |
0.12 |
0.16 |
3ø-380 |
50 |
2760 |
36 |
10 |
4 |
WD-016S |
1ø-220 |
||||||||
WD-016L |
G1/2",G1/2" |
0.12 |
0.16 |
3ø-380 |
50 |
2760 |
20 |
20 |
5 |
WD-016SL |
1ø-220 |
||||||||
WD-07 |
G1/2",G1/2" |
0.55 |
0.7 |
3ø-380 |
50 |
2760 |
40 |
25 |
6.5 |
WD-07S |
0.55 |
1ø-220 |
50 |
2760 |
45 |
30 |
10 |
||
WD-10 |
G3/4",G3/4" |
0.75 |
1 |
3ø-380 |
50 |
2760 |
60 |
60 |
12 |
WD-10S |
1ø-220 |
||||||||
WD-20 |
G1",G1" |
1.5 |
2 |
3ø-380 |
50 |
2760 |
60 |
90 |
18 |
WD-20S |
1ø-220 |
||||||||
WD-33 |
G1",G1" |
2.5 |
3.3 |
3ø-380 |
50 |
2760 |
85 |
108 |
26 |

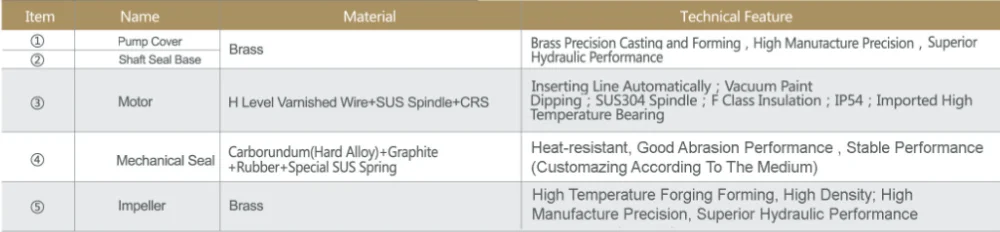

♦♦ Material |
Item |
Name |
Material |
Technical Feature |
01 |
Pump Cover |
Copper |
Brass Precision Casting and Forming, High Manufacturing Precision , Superior Hydraulic Performance |
02 |
Shaft Seal Base |
||
03 |
Motor |
H Varnished Wire+SUS Spindle +CRS |
Inserting Line Automatically , Vacuum Paint Dipping, SUS304 Spindle , F class Insulation , IP54, Imported High temperature Bearing |
04 |
Mechanical Seal |
Carborundum +Graphite+Rubber+SUS spring |
Heat-Resistant , Good Abrasion Performance, Stable Performance (Customizing According to the Medium ) |
05 |
Impeller |
Copper |
High Temperature Forging Forming , High Density , High Manufacturing Precision , Superior Hydraulic Performance |
♦♦ Installing Drawing |
♦♦ Performance Chart |
Testing Base: The above characteristic testing is based on the water transferring with the normal
speed under 20 degrees. The error of the capacity and head is about 10%,
characters ‘error is about 10%. The pump characters change according to the
difference of the liquid mediums’ proportion and density.
♦♦ Core Component Technical Characteristics |
