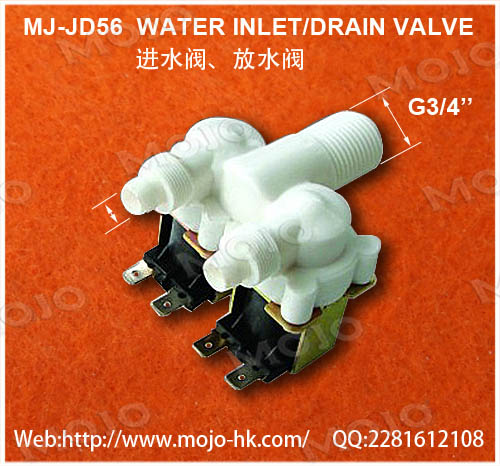

Brand Name: MOJO
Model Number: MJ-JD56
Place of Origin: Guangdong, China (Mainland)
TECHNICAL SPECIFICATIONS:
Rate Voltage: 110-120AC,220-240V
Coil Resistance: 4.75KΩ±0.25Ω(20°C)
Switch Mode: direct current pulse
alternating current coutinuous
Operating Pressure: 0.02-1.0Mpa
Suitable Fluid: Water
Fluid Temperature: 1°C-80°C
Working Life: ≥1000000 times
Inlet Connection: G3/4"- 20mm X2 – others on request
Filter: PP
MOJO SENSOR also provides solutions for Magnetic Water Inlet/Outlet Valve
PRODUCT AND SAFETY FEATURES
- Normally open, pilot operated, diaphragm-type valve
- Made of non-corrosive and non-toxic materials
- Suitable for potable water
- Designed and developed to meet also harsh working environments
- Smallest inlet valve on the market
- Does not have external moving parts
- Easy to install
- Fast operation; no partly closed valve position
- Customization is possible for specific applications
Available in other Models or on Customer Request.
