MJ-FS01 G1/4 thread Flow switch with magnet water switch

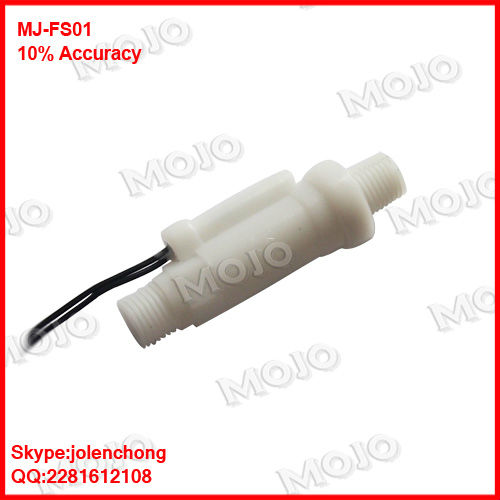

Product show

The principle of operation

Flow switch is the presence or absence of flow through the output switch control signal to the water sensor switch, the main switch signal. Divided into specific types normally open and normally closed type, in the main water control work flow monitoring role to play. Water flow switch and relay use with the usual components of the water control system, easy to use, no power is the flow switch on.

Applications

Mainly used for water heater, boiler, water dispensers, coffee machines, hot card machines, steam equipment, water system, the campus card sales, selling self-help water systems, water treatment equipment, cooling systems, mechanical equipment, instrumentation, pharmaceutical equipment.

Electrical parameters

MJ-FS01 economy gas/water flow switch

Flow setting:

Liquid: 0.05 GPM ~ 1.00 GPM (0.19 ~ 3.785 L/M)

Gas: 25 CFH ~ 12 CFM

Interface: 1/4 "NPT threads

The main structure material: Noryl

Flow switch MJ-FS01 small low flow series

MJ-FS01 small-sized flow switch is designed for filtered water purification, the application of the design and reliable. The switch is mainly composed of Noryl is made, all the parts contact liquid to meet FDA or NSF standard material.

OKD-FS03 flow switch high quality and low price can be used for pure water equipment, etc. Also applies to some of the chemical application and some cooling application laser, welding equipment, etc.

performance parameter

Water flow switch Installation instructions

1, flow switch installation environment to avoid strong vibration, and shaking with the local magnetic environment, in order to avoid the flow switch malfunction. In order to avoid particles, debris into the water flow switch must be installed in the inlet filter.

2, when the magnetic material close to the water flow switch, its characteristics may change.

3, flow switches, relays must be compatible with use, as less power reed switch (typically 10W and 70W) easy to burn. Relay maximum power 3W, 3W power will be greater than the normally open and normally closed phenomenon.

Routine maintenance

Periodically clear the guide rod and float on the dirt (as the media cycle may be). Check for the loose buckle
