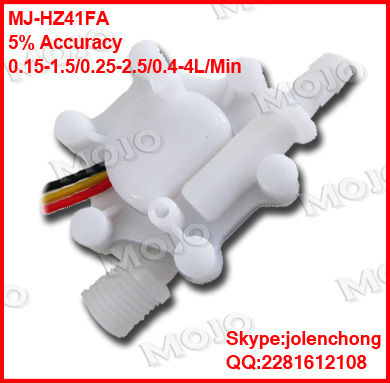

MJ HZ41FA MOJO Sensor Flow meters 1 4 nipple and thread Thermal flow switch

FOB Price:

US 3-5 / Piece

Min.Order Quantity:

100 Piece/Pieces

Supply Ability:

1000 Piece/Pieces per Week

Port:

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T,Western Union,PAYPAL

Brand:

MOJO

Products Model:

MJ-HZ41FA

Products Details
Company Profile

Quick Details

Brand Name: MOJO

Model Number: MJ-HZ41FA

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 20PCS/PACKAGE
Delivery Detail: 5DAYS

Specifications

1.Environmental protection design
2.Food grade PBT material
3.Small, practical
4.Can be arbitrary Angle adjustment

INTRODUCTION

Electrical characteristic

NO	Item	Examination requirement
1	Appearance	Clean and beautiful, smooth without burr, without off color
2	Water pressure resistance performance	0.85 MPa pressure has no slack phenomenon, and parts no crack, relaxation, inflation, and deformation anomaly
3	Operating voltage range	DC3-18V, rate 5VDC
4	Maximum operating current	15mA
5	The output pulse high level	In 5 V rated voltage, the output of the high level requirements in 4.5 V above
6	The output pulse low level	In 5 V rated voltage, the output of the low level requirements in 0.5 V the following
7	The output pulse duty ratio	In the rated voltage, the output pulse occupies emptiescompared to 50%-10%
8	Flow pulse characteristics	See flow parameters and pulse cross-references
9	Insulating property	Dielectric resistance>100M
10	Electrical strength	AC500V 50Hz(Don't breakdown or flash winding)
11	Electrical strength(80degree)	In 80 degree temperature placed in 72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%
12	Cold resistance(-20degree)	In 20 degree temperature placed in-72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%
13	Mode of connection	Red: the positive, black: negative, yellow: pulse signal
