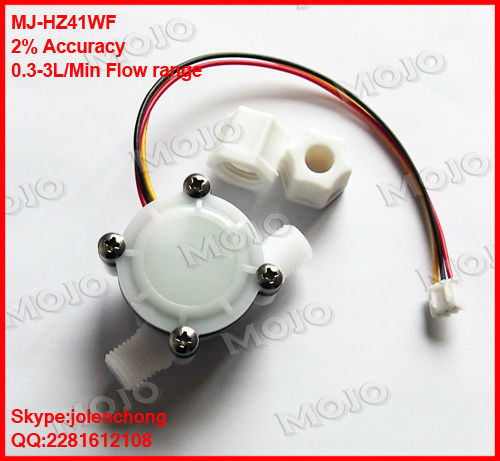

MJ-HZ41WF MOJO-Sensor Micro meter Intelligent flow sensor

FOB Price:

US 5.00 / Piece

Min.Order Quantity:

10 Pieces

Supply Ability:

1000 Piece per Week

Port:

Hong Kong

Place of Origin:

Guangdong,China

Payment Terms:

Brand:

MOJO

Products Model:

Products Details
Company Profile

Quick Details

Brand Name: MOJO

Model Number: --

Place of Origin: Guangdong,China

Packaging & Delivery

Packaging Details: 10 pcs/lot
Delivery Detail: 3~5 days

Specifications

INTRODUCTION

Introduction

1, environmental protection design, food grade material POM, small, practical, and can be arbitrary Angle regulation;

2,for the G1/4 the tooth type structures, unions, more convenient, can match fast by type nut and pipe plug.

3, Hall element for Japan imports, sensitive and reliable;

4, Flow range: 0.3- 3 L/min;0.5-6L/min.working voltage: DC5-24 V, Rated voltage DC5V;

5, output voltage (rated DC5V) : high level 4.5 V above, low level 0.5 V the following; Pulse output occupies emptiescompared to 50-10%;

6, designed for small flow and medicine machinery make water flow sensor, but also be used for electrical and mechanical equipment.

7,The Flow accuracy near 2%,and the Pulse character is 5800Hz/L.

Electronic character

Item	Examination requirement
Appearance	Clean and beautiful, smooth without burr, without off color
Water pressure resistance performance	0.35 MPa pressure has no slack phenomenon, and parts no crack, relaxation, inflation, and deformation anomaly
Operating voltage range	DC5-24V, Rated voltage 5VDC
Maximum operating current	15mA
The output pulse high level	In 5 V rated voltage, the output of the high level requirements in 4.7 V above
The output pulse low level	In 5 V rated voltage, the output of the low level requirements in 0.5 V the following
The output pulse duty ratio	In the rated voltage, the output pulse occupies emptiescompared to 50%-10%
Flow pulse characteristics	See flow parameters and pulse cross-references
Insulating property	Dielectric resistance>100
Flow range	0.3~3L\min
Flow pulse characteristic	F=(73*Q)2% , F for instantaneous pulse value (HZ), Q for transient flow (L/min)
Electrical strength	AC500V 50Hz(Don't breakdown or flash winding)
Electrical strength(80degree)	In 80 degree temperature placed in 72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%
Cold resistance(-20degree)	In -20 degree temperature placed in-72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%
Mode of connection	Red: the positive, black: negative, yellow: pulse signal

Water flow sensor (water flow sensor) and flow switch (flow switch) outlet terminals installation dimensions for the connection mode and the length of the connecting according to request, the water flow sensor existing pipe diameter have G1/4, G1/2 and straight intubation (equivalent to the G1/4) three, press Angle points can be divided into 90 degrees and 180 degrees two kinds, has the plastic shell and cast-bronze piece two kind of material, mainly for the water heater, wall-hang boiler, water machine.

It was established in 2011, is one of the new technology enterprises which include research, manufacturing, sales and service , the main products are liquid level sensors, flow sensors, proximity sensors and metal plastic parts and so on .

Products are mainly used in household appliances (such as: water purifier, water dispenser, humidifier, dehumidifier, water heater, air conditioning, family direct drinking water system,etc.), industrial equipment (such as: air hydraulic machine, cold machine, drainage, lubricating oil system), gardening equipment, medical equipment, beauty salon equipment, aquatic farming and industrial water purification, sewage treatment systems, automatic door control system and other industries.

According to different customers, the special needs of different environments, the product has a variety of sizes, a variety of materials available, can also accepted to OEM.

The factory has a number of efficient production lines, with mass production supply capability to quickly respond to the customer needs.

Companies adhering to the "scientific management, quality service, good faith cooperation, pursuit of excellence" these quality policy, establishing a comprehensive quality management system. Our team firmly support the company purpose, integrity, enthusiasm, positive for the customer to solve problems, strive for perfection, willing to work with customers to mutual trust and seek common development!
