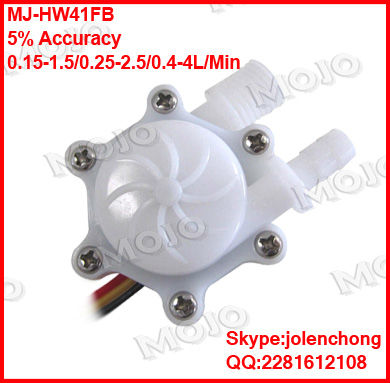

MJ-HW41FB 6mm G1/4 treads POM food materia water sensor water level sensor switch

FOB Price:

US 4.50 / Piece

Min.Order Quantity:

1 Piece

Supply Ability:

1000 Piece per Week

Port:

Hong Kong

Place of Origin:

Guangdong,China

Payment Terms:

Brand:

MOJO

Products Model:

Products Details
Company Profile

Quick Details

Brand Name: MOJO

Model Number: --

Place of Origin: Guangdong,China

Packaging & Delivery

Packaging Details: 10 pcs/lot
Delivery Detail: 3~5 days

Specifications

Product Description

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor.
When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal.

Brand Name: MOJO
Model Number: MJ-HW41FB
Material: POM
Imput : G1/4 threads

Output: 6mm
Flow Core: Hall sensor for Japan AKE 512
Rating Voltage: 5V
Flow range: 0.15-1.5L/min,0.25-2.5L/min,0.4-4L/min
Flow accuracy: 5%
Flow temperature: -20~60°
Flow pulse character: F=76*Q±5%(Q=L/Min)
Dielectric resistance: >100 Ohm
Wiring:Red for the positive, black for the negative, yellow for the pulse signal

Product Advantage

1.Environmental protection design
2.Food grade POM material
3.Small, practical and high precision
4.Can be arbitrary Angle adjustment

Electrical Details

	Item	Examination requirement
1	Appearance	Clean and beautiful, smooth without burr, without off color
2	Water pressure resistance performance	0.8 MPa pressure has no slack phenomenon, and parts no crack, relaxation, inflation, and deformation anomaly
3	Operating voltage range	DC4.5-18V, rate 5VDC,can be make to 24V
4	Maximum operating current	Less than10mA
5	The output pulse high level	In 5 V rated voltage, the output of the high level requirements in 4.5 V above
6	The output pulse low level	In 5 V rated voltage, the output of the low level requirements in 0.5 V the following
7	Flow range	0.15-1.5L/Min(Can be adjust to 0.25-2.5/0.4-4L/Min)
8	The output pulse duty ratio	In the rated voltage, the output pulse occupies emptiescompared to 50%-10%
9	Flow pulse characteristics	See flow parameters and pulse cross-references
10	Insulating property	Dielectric resistance＞100MΩ
11	Electrical strength	AC500V 50Hz(Don't breakdown or flash winding)
12	Electrical strength(80℃)	In 80 ℃ temperature placed in 72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%
13	Cold resistance(-20℃)	In 20 ℃ temperature placed in-72 hours, in the environmental temperature back after 1 hour the accuracy of measurement requirements within the plus or minus 5%
14	Mode of connection	Red: the positive, black: negative, yellow: pulse signal

Installation instructions

1、When magnetic materials or to flow switch a magnetic force materials near water flow switch, its characteristics may change.
2、In order to avoid particles, sundry into the flow switch, in the inlet must install screen pack.
3、In the use of the water flow switch before please read the parameters that if there are still questions please to our factory technical personnel consultation.
4、In the process of installation and use must cooperate relays (power in 3 W below), lest because of switch power small and dry reed pipe burn out.
5、The water flow switch installation use environment to avoid strong vibration and shaking place, in order to avoid water flow switch produce false action.
