Brand Name: GALA
Model Number: Fig.3113
Place of Origin: Tianjin, China (Mainland)
BS/ MSS metal seated long stem sanitary gate valve,
ansi gate valve
Standard and Price | |
FIG NO. | 3113 |
Price Range | $34-$4485 |
Valve Standard | Comply with EN 1171 [BS 5150] & MSS SP-70 |
Pressure Temprature and Rating | |
Working Pressure | 16bar |
Testing Pressure | Shell: 24bar |
Seal: 17.6bar | |
Working Temperature | -10°C to 120°C |
Suitable Media | Water, Oil & Gas |
Material Specification | ||
Part | Material | ASTM |
Body | Cast Iron | A126 Class B |
Bonnet | Cast Iron | A126 Class B |
Disc | Cast Iron | A126 Class B |
Seat Ring | Bronze | B62 C83600 |
Stem | Brass | B16 C36000 |
Stainless Steel 420 | A276 S42000 | |
Packing | Graphite | Non-Asbestos |
Hand | Cast Iron | A126 Class B |

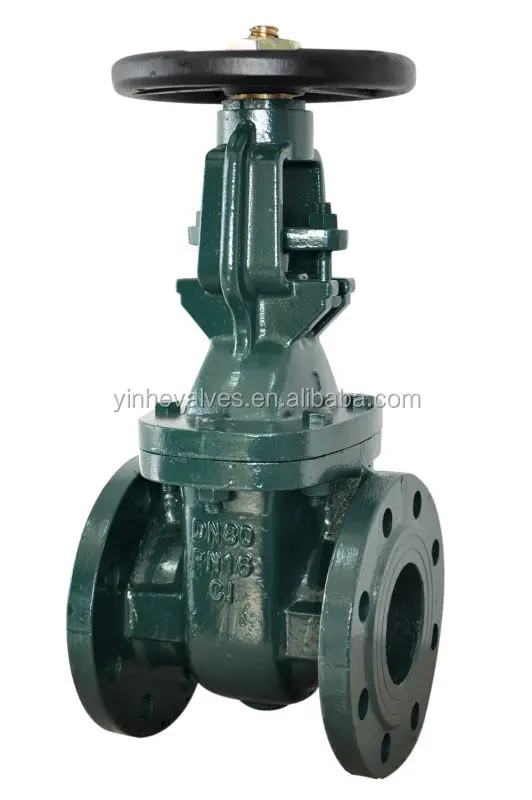

Detail of BS/ MSS metal seated os y 2" inch steam gate valve
Our finished products are working. This is the situation after our products was connected to the pipe.
Tianjin Galaxy Valve Co.Ltd offers a wide range of products and systems in the field of valves for application ranging from equipment for office buildings, fire fighting, heating, water works, sewerage, marine, industrial to top fluid control.
Our aim is meaningful contribution to society by providing comfort and safety through our products, technical skills and services. More information you can visit our website www.galars.info.or www.galaxyvalve.com.
Our conventional packing is wooden case packing, we go to great lengths to ensure delivery within 30 days after receipt your order of DIN F4 NRS cast iron gate valve, dn150 gate valve,wedge gate valve .
Our product features are as follows:
1.Newly developed facilities ensure high and stable quality.
2.Enable to supply UL/FM valves.
3.Experienced technology
4.Excellent after-sale service to satisfy customers.
5.Sufficient capacity ensures prompt delivery.
6.Continuous quality improvement and new designs development.
7.Reasonable and stable price
8.Meets different countries standards,such as ANSI,DIN,BS etc.
Q: What is your target market?
A:Our products have been exported to 30+ countries and regions in global markets, such as U.S.A., Canada, UK, France, the
Netherlands, Italy, Australia, South Africa, Malaysia, Singapore, Hong Kong and so on.
Q: Can I go to visit your company?
A: of course, Tianjin Galaxy Valve Co.Ltd has own entity factory, you can come to inspect our production process and office, we will provide you the best service.
Q: Can I get samples from your company?
A: of course, if you are interested in our company and enquiry, we will try our best to meet your requirements.
