din standard Flange type lifting check valve

FOB Price:

US 6-897 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

XINGANG

Place of Origin:

Xinjiang, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,as customer's request

Brand:

GALA

Products Model:

Fig.5203

Products Details
Company Profile

Quick Details

Brand Name: GALA

Model Number: Fig.5203

Place of Origin: Xinjiang, China (Mainland)

Packaging & Delivery

Packaging Details: each pc into one bubble plastic bag,several pcs into one wooden crate
Delivery Detail: within 30 days

Specifications

body:cast iron
disc/stem:cast iron / stainless steel 420
seat ring:stainless steel 420

Product Description

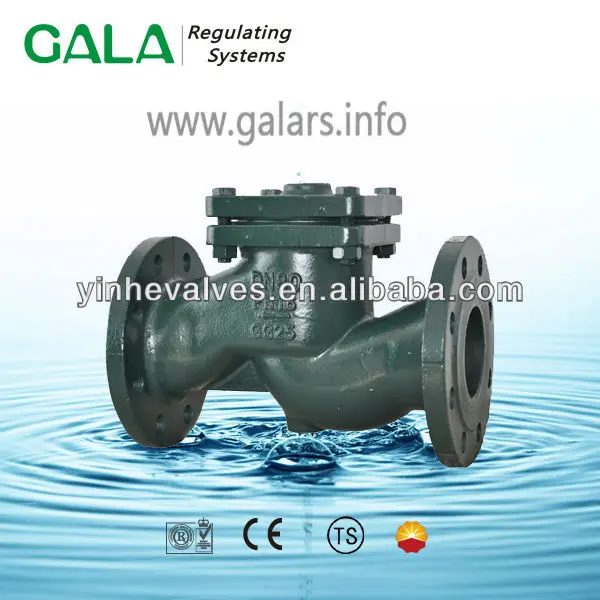

din standard Flange type lifting check valve

Standard and Price
FIG NO.	5203
Price Range	$6-$897
Face to Face Standard	Conforms to DIN 3202 F1 series
Pressure Temprature and Rating
Working Pressure	16bar
Testing Pressure	Shell: 24bar
Testing Pressure	Seal: 17.6bar
Working Temperature	-10°C to 120°C
Suitable Media	Water, Oil & Gas

Material Specification
Part	Material	EN Spec.
Body	Cast Iron	EN-JL 1040
Bonnet	Cast Iron	EN-JL 1040
Disc	Stainless Steel 420	BS970 420S37
Disc	Cast Iron	EN-JL 1040
Disc Ring	Stainless Steel 420	BS970 420S37
Seat-Ring	Stainless Steel 420	BS970 420S37
Gasket	Graphite	Non-Asbestos
Spring	Stainless Steel 304	BS970 304S15

Packaging & Shipping

each pc into one bubble plastic bag,several pcs into one wooden crate

Wooden packing will protect the din standard Flange type lifting check valves from damage during transportation

Company Information

Tianjin Galaxy Valve has been certificated by ISO9001 QMS, European EC, and entitled to engage in import and export business, and has obtained the Type Approval certificates of DNV/ABS/CCS.

The products have been widely used to national key projects, for example, Three Gorges Project, Jiuquan Satellite Launch Base, 2010 Shanghai World Expo water supply and drainage project, Tianjin Dagang Power Plant seawater cooling and desalination project, Guangxi Sino-French joint venture Laibin Power Plant, CNOOC Shanghai petrochemical project, Tianjin Zhonggang shipping projects.

We are glad to solve your questions.

GALA - Extends Business on a Global Perspective.
GALA company offers a wide range of products and systems in the field of valves, piping, and seismic isolation for applications ranging from equipment for office buildings, fire fighting, heating, water works, sewerage, marine, industrial to top fluid control. Our aim is meaningful contribution to society by providing comfort and safety through our products, technical skills and services!

GALA - Professional Manufacturer of Industrial Valves
GALA have variety products to meet customer demand of different valve. Designing, manufacture and sale of one-stop service is the company's core strengths.

GALA products cover the following industry area:
Water supply system, water treatment, food, chemical, cement, air-conditioning systems, industry engineering, nuclear power, papermaking, Petrochemical Industry, pharmaceutical, Powder Industry, steel industry, sugar refining, textiles and so on. GALA anti-pollution environmental protection industry is one of the major business. GALA provides various valve for wastewater processing and exhaust gas processing.

GALA have wide variety of industrial valves, including following main products:
Fire protection valve
Balancing Valve
Butterfly Valve
Gate Valve,Globe Valve,Check Valve,Ball Valve
Strainer
Flexible Rubber Joint

Other Valves and fittings are also available from GALA.
All products will be designed, manufactured and assembly by GALA.
