Capillary type thermostats TF 42 new arrival

FOB Price:

Open price

Min.Order Quantity:

1000 Piece/Pieces

Supply Ability:

400000 Piece/Pieces per Year

Port:

Shanghai or Ningbo

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,Paypal

Brand:

HUAHONG

Products Model:

TF-42

Products Details
Company Profile

Quick Details

Brand Name: HUAHONG

Model Number: TF-42

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

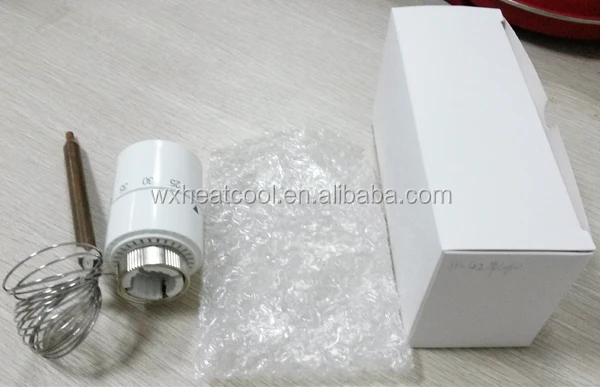

Packaging Details: 1 pcs in a white individual box, 100 pcs in a master carton
Delivery Detail: 35 days

Specifications

Thermostatic radiator valve head with built -in liquid sensor for floor heating systems to control the temperature in room .

Product Description

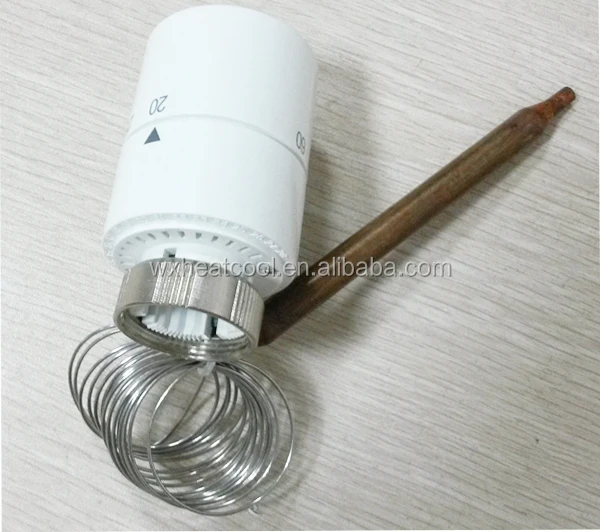

TF-42 with capillary tube for remote temperature control .

Temperature range 20-60 degree C

New design

Technical Datas

Model	TF-42
Temperature range	20-60 Celsius
Setting number	20 30 40 50 60
Material	ABS
Color	RAL9016
Type	mechanical
Max. admissible static pressure	1.0MPa
Max. admissible differential pressure	0.1MPa
Connection	M30x1.5
Packing	100 pcs /CTN

Features:
1. With remote sensor
2. Limitation and locking of individual nominal value
3. Suitable for valves with thread M30x1.5
4. Surface: white
5. Connection: M30x1.5
6. Graduation on cap: 20 30 40 50 60
7. Capillary 2000mm long
8. Max. temperature: 110C

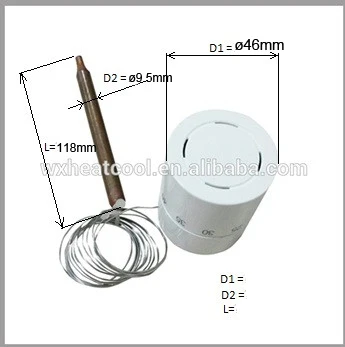

9. Dimension of the bulb: ø 9.5x118 mm
10. Diameter of thermostatic head: ø 46mm
11.

Features:

1. With remote sensor

2. Limitation and locking of individual nominal value

3. Suitable for valves with thread M30x1.5

4. Surface: white

5. Connection: M30x1.5

6. Graduation on cap: 20 30 40 50 60

7. Capillary 2000mm long

8. Max. temperature: 110C

9. Dimension of the bulb: ø 9.5x118 mm

10. Diameter of thermostatic head: ø 46mm

11.
