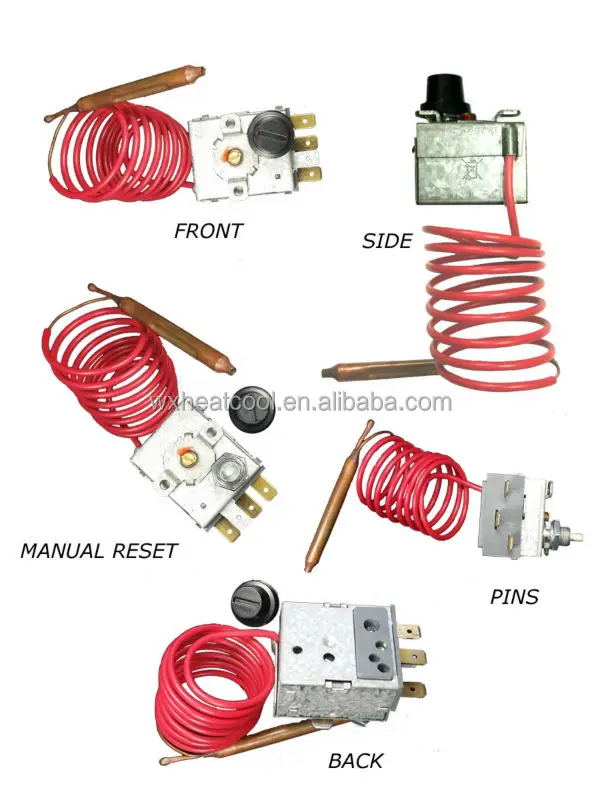

IMIT design Manual reset capillary thermostat

 Y4061712CA IMIT design manual reset capillary thermostat

Application: Temperature control of washing machine,water heater, electric oven and other similar equipment with manual reset function and sensor leakage protection.

Electrical rating: 16A/110~250V
Temperature range: 80/90C~110/120/300C

Capillary length: 1000/1500mm

Capillary tube in red PVC, manual reset.

Each thermostatic head been packed in a small white box

50PCS/CTN

Carton size: 35x29.5x27cm

Weight: 5KG/CTN

Pallet size: 92x108x118cm

1800PCS/PALLET

We can also make OEM and ODM according to your requirements.

LOGO printing can be made as you need.

Established in 1988, the total area of our company is 6000 square meters, and 35% of our employees are technicians. We have standard workshop and advanced production and testing equipment.

We are a professional producer for different kinds of thermostats. In the past few years, we have developed many new products, such as thermostat valves, temperature pressure safety valves, boiler thermostats, pressure switches and flow switches.

We are ISO9001 approved and our products have got COC, CE, VED and ROHS approvals. Our thermostatic valve has passed the EN215 preliminary test and now we are applying for official approval.

We export products to more than 20 countries such as the USA, Canada, Germany, France, Italy, the UK, Russia and Hungary. We are also an OEM supplier for some famous international companies. Our production capacity is more than 2 million pieces annually. And our products are widely accepted by customers around the world. We registered the following brands: HUAHONG, YIREN, EVERHOT, HD and HEATCOOL

Question 1: Where is your factory?

Our factory is in Jiangsu Province China, city WUXI.

It will take one hour from SHANGHAI to our city by train.

You can also fly to WUXI from Guangzhou or Beijing, we have air port here in WUXI.

Question 2: Are you a manufactory?

Yes, we are a manufactory, we have more than 150 employees.

Question 3: Can you making new design for us? Or can you make thermostats according to the samples we given?

Yes, we can do OEM, ODM. We can make models for customers' new designs.

Question4: How long will it take for production?

For normal goods, it will take 20-30days for production usually. For new designs, it will take 40-60days for first order, as we need time for making new moulds.

Question5: Which port will the goods been shipped?

We usually ship goods from Port Shang or Port Ningbo.
