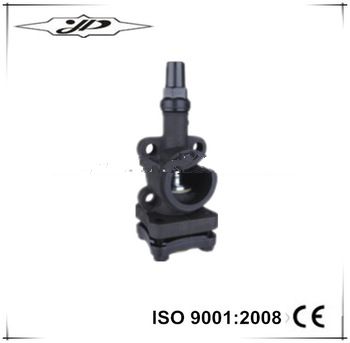

Casting Copper Modulating Valve (CV0322)

FOB Price:

Open price

Min.Order Quantity:

200 Set

Supply Ability:

25000 Set per Month

Port:

Shanghai

Place of Origin:

ZHEJIANG

Payment Terms:

T/T, PayPal

Brand:

OKONOFF

Products Model:

CV0322

Products Details
Company Profile

Quick Details

Brand Name: OKONOFF

Model Number: CV0322

Place of Origin: ZHEJIANG

Packaging & Delivery

Packaging Details: Carton
Delivery Detail: 20DAYS

Specifications

Technical parameter:
Applied Medium: cold or hot water, ethylene glycol liquor (≤50%).
medium temperature: normal temperature(1ºC~90ºC)
Nominal pressure: 1.6Mpa
Flow characteristic: Equal percent or linear
Connecting mode: National internal thread
Water direction: According to the direction of arrow (two way); Distributary, confluence(three way)
Leakage: ≤0.05%KVS (within the differential)
Valve body: Brass
Valve petal: Stainless steel 1Cr18Ni9
Valve stem: Stainless steel 1Cr18Ni9
Sealing element of valve stem: NBR or Teflon

Model spec:
Two-way valve:

Model	DN(mm)	Discharge coefficient KV(m3/h)	Journey (mm)	Shut off Difference (kpa)	The main dimension
Model	DN(mm)	Discharge coefficient KV(m3/h)	Journey (mm)	Shut off Difference (kpa)	L	H0	H1	Weight(kg)
CV0252	DN25	8	20	1000	104	135.5	52.5	3.5
CV0322	DN32	16	20	750	110	138	57.5	3.7
CV0402	DN40	25	20	500	120	144.5	63	4.4
CV0502	DN50	40	20	300	134	143.5	63	5.7

Three-way valve:

Model	DN(mm)	Discharge coefficient KV(m3/h)	Journey (mm)	Shut off Difference	The main dimension
Model	DN(mm)	Discharge coefficient KV(m3/h)	Journey (mm)	Shut off Difference	L	H0	H1	Weight(kg)
CV0253	DN25	8	20	1000	104	135.5	64.5	3.8
CV0323	DN32	16	20	750	110	138	65.5	4.2
CV0403	DN40	25	20	500	120	144.5	76	5.0
CV0503	DN50	40	20	300	134	143.5	77.5	6.7

okonoff is a high-tech integration company and founded in 2002.okonoff delivers products,services and solutions that increase energy efficiency and lower operating costs in HVAC &building auto control products.

okonoff adhere to the development of science and technology innovation enterprise road,until now,our company has successfully developed six series,thousands of specifications of products,and some techniques have acquired domestic and foreign patents and software copyright protection.We also have passed CE,UL,RHOS certifications.

okonoff products are widely used to major projects at home and aboard,for example,Beijing Olympic News Center,China Netcom Building,HKMAO office,Hilton hotel and so on.We sold products more than 20 countries and regions in Europe,North America, Southeast Asia and Africa.

okonoff commitment to sustainability and green energy economy dates back to our roots in 2002,with the invention of the first electric roomthermostat.Through our growth strategies and by increasing market share we are committed to delivering value to shareholders and making our customers successful.
