Sindeice 20T 24h flake ice machine flake ice evaporator

Sindeice 20T 24h flake ice machine flake ice evaporator

FOB Price:

US 12000-20000 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

100 Unit/Units per Month

Port:

Shenzhen Port

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

SINDEICE

Products Model:

SDE-20T

Products Details
Company Profile

Quick Details

Brand Name: SINDEICE

Model Number: SDE-20T

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 1. Standard wooden case. 2. Completely ice machine contain: ice machine, cooling tower, water pump, water pipes and water pipe fittings. 3. Machine come into use, customer only need prepare power for the machine. 4. All required components for install the machine will be provided.
Delivery Detail: 20 working days after deposited

Specifications

Sindeice 20T/24h flake ice machine flake ice evaporator

Company Information

SHENZHEN SINDEICE SYSTEMS CO., LTD (Sindeice for short) is a professional manufacturer of ice machines, who has a set of research, design, production, installation, sale and after-sales service. We got a number of experienced experts who engaged in refrigeration and ice machine for many years. With the use of best technology of ice machine and innovative solutions, Sindeice manufactures Flake ice machine, Tube ice machine, Block ice machine, Ice flaker evaporator, Containerized ice plant. Daily capacities are available from 300 kg to 100,000 kg.

Sindeice is sticking to the notion of “great virtue,social commitment”, and the management policy of “integrity, diligence, innovation and mutual benefit”.Sindeice strives to enter into international market.

Product Description

Characteristics of Flake Ice

A mechanical freezing system, however advanced it is, can provide only a low temperature, while cannot provide a humid environment. This disadvantage will dry the surface of, dewater or frostbite the fresh and live commodities. Only ice will provide a perfect cooling and watery environment to keep the fresh and live commodities in an ideal status. Flake ice is widely used in seafood and fresh meat preservation and display in supermarkets. As flake ice is dry and smooth, it will not scratch the fresh and live commodities, in the same time, it will maintain good ventilation. That will ensure the original taste of the commodities and prevent loss caused by dewatering of the commodities.

Large contacting area and quick freezing

As flake ice is in a flat shape, it has a large contacting area compared to ice of the other types. The larger the contacting area, the more effective the freezing becomes. For example, the minimum area of 1000 Kg flake ice is 1,579 square meters, while ice of same quantity in the other types provides only 395 to 1294 square meters contacting area. So the freezing (cooling) effectiveness of flake ice will be 2 – 5 times that of tube ice or cube ice.

Outstanding Food Preservation

Flake ice is dry, soft and flat. These characteristics will protect the packaged food during the packing and refrigeration process. Its flat pattern will minimize the possibility of damaging the refrigerated commodities.

Complete Mixing

As flake ice has a gigantic contacting area and the heat ejection happens quickly, flake ice melts quickly into water, taking the heat away and intensifying humidity of the mixture.

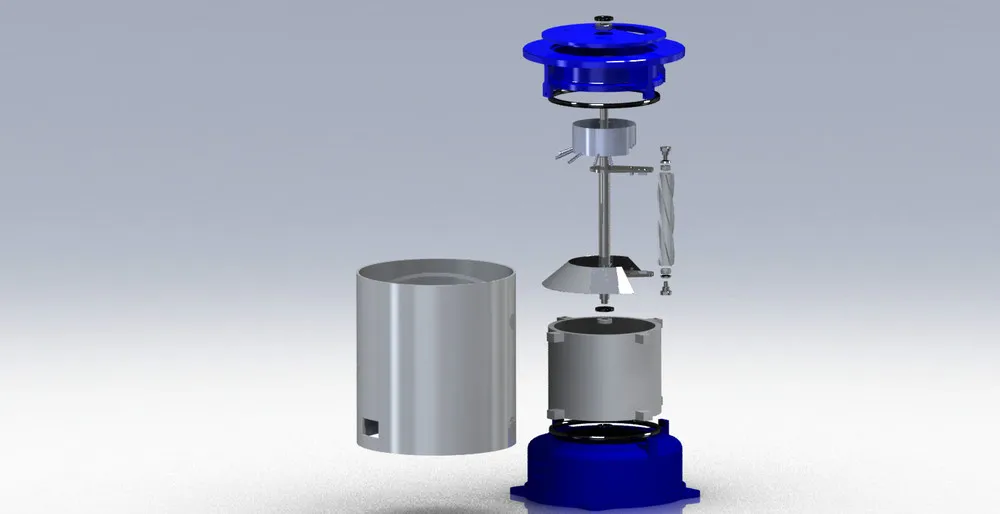

Ice Flaker Evaporator

As the key part of the complete flake ice machine, the ice flaker evaporator plays an important role in making ice. To match the various ice flaker evaporator, you can make different choice about the refrigeration units in different refrigerant (R22, R404a or R717) by yourselves. Before place the order, please let us know which refrigerant you will choose.

Characteristics

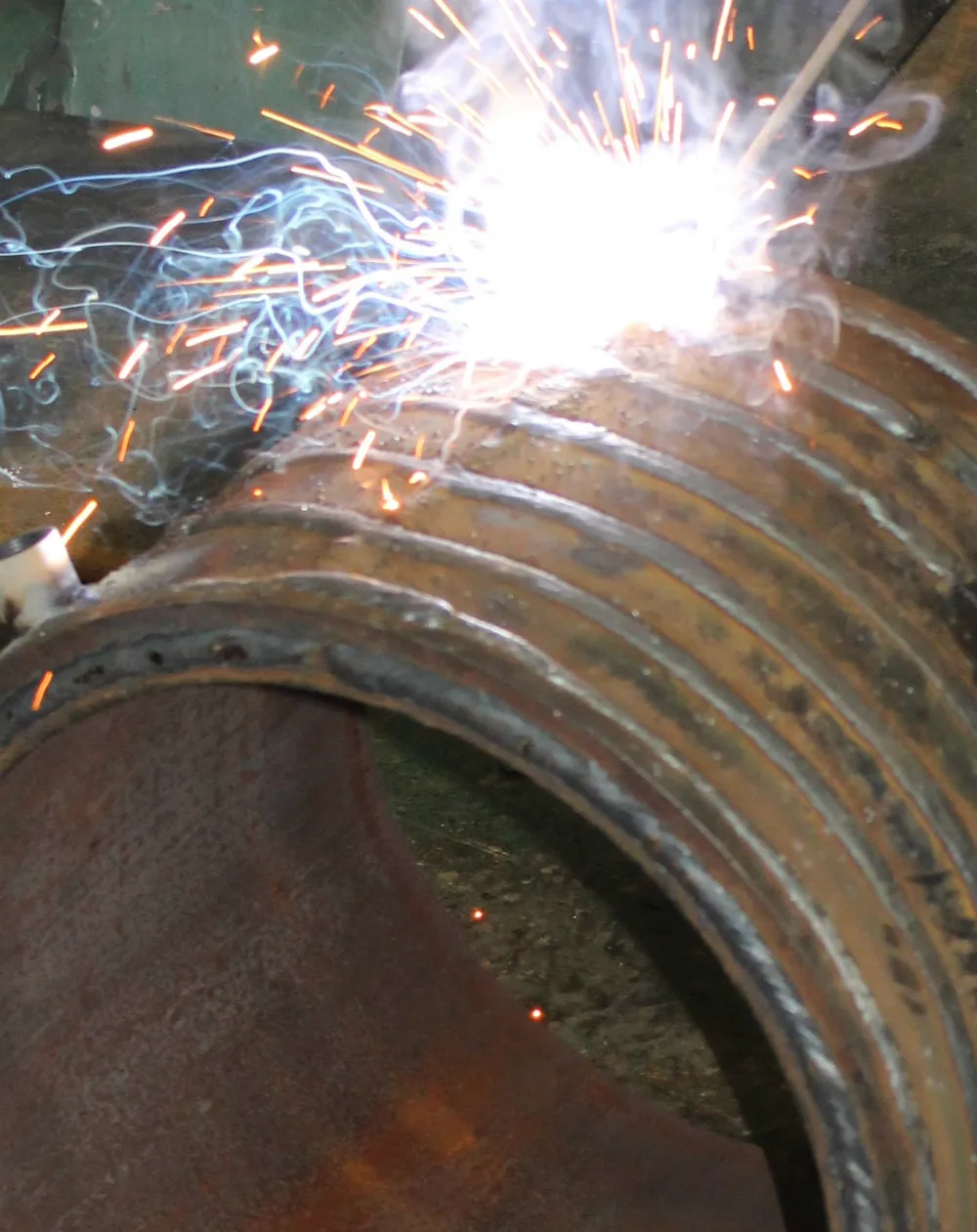

1. The ice flaker evaporator use high quality alloy material. Precision welding and surface treatment makes high heat conduction efficient, high strength, longer lifespan.

2. The internally- scraping ice-making mode has been adopted. Under this mode, ice blades scrape ice on the inner wall of the evaporator while the evaporator itself does not move. It reduces the loss of energy as much as possible, guarantees the normal supply of cooling agent as well lower the probability of cooling agent leakage.

3. The stainless steel ice scraper formed without weld. Even by long time scraping, the scrapper keeps still tough, and the ice dropped is sizable with nearly no powder.

Technical Data

*The technical data based on 25℃ ambient temp.18℃ water inlet temp.

*The evaporating temperature is -20℃.

*The condensing temperature is 40℃.

*Power supply: 3P / 380V / 50HZ 3P/220V/60HZ

*Refrigerant:R404a/R22/R507/R717

*Inner wall material: SUS304&Q345 Hard chromium plating

Model	SDE-20T
Daily Output (TPD)	20
Cooling Capacity (KW)	130
Reducer Power (KW)	0.75
Water Pipe	1/2"
Weight (KG)	1970
Dimension (mm)	216016502100

Packaging & Shipping

Trouble Shooting

Symptom	Possible Cause		Solution
Pressing Start/Stop does not start machine.	Electric supply is cut		Check the power supply for a confirmation
	Circuit Breaker is not On		Put the Breaker On
	The Start/Stop Control fails		Change the control
System Failure indicator is on, and machine cannot be started	Ice Bin Full		Harvest the ice and then start the machine once again.
	Lack of Water in water tank		Check the water supply and the water pump
	Refrigeration System fails	Low Pressure	Clean the fins of the condenser and put the RESET button of pressure control. Contact Sindeice agent or headquarter for a solution if failure still insists.
		High Pressure
		Oil Differential Control fails
		Comp Overheat
	Current Overload	Comp Overload	Pressing the RESET release the trip and start again. If there is abnormal noise, stop the machine immediately and contact Sindeice agent or headquarter for a solution.
		Fan or Pump OL
		Reducer Overload
Ice blade making Noise and ice is crystal	Salt water pipe jammed		Check and clean the pipe
	Salt water pipe filled with air		Get the air out and start again
	Metering pump damaged		Replace the metering pump
Ice machine working while no ice produced	Refrigerant leakage		Contact Sindeice for gas refilling and leakage checking
	Refrigeration unit fails		Contact Sindeice for a solution
Ice forms on Freezing surface while does not fall	Refrigerant leakage		Contact Sindeice for gas refilling and leakage checking
	Refrigeration unit fails		Contact Sindeice for a solution
	Ice Blade bearings fail		Contact Sindeice for a replacement
	Reducer is not revolving		Check the electric control or check the reducer motor. Contact Sindeice for a solution

FAQ

Q1: What are the payment terms?

A: We usually accept payment by T/T, L/C.

Normally, we accept 30% Deposit and 70% balance paid before delivery.

Q2 : Can any of the products be custom imprinted?

A: If you need to print your company logo on the products and that is available to be custom. Or if you have your own designed idea and that will be our honor to ustomize for you.

Q3: How to ensure that I received the machine undamaged?

A: At first , our package is standard for shipping, before packing, we will confirm product undamaged, otherwise, please contact within 2days. Because we've bought insurance for you, we or shipping company will be responsible!

Q4: Do I need to install the ice machine by myself?

A: For small ice machine, we ship it as a whole unit. So you just need to prepare power and water to run the machine.

For some larger ice machine plant, we need to keep some components seperate for shipping convenience. But no worris about that. An installation brochure will be sent to you,it's very to install the machine.

Q5:What is the warranty for flake ice machine?

A: 18 months after B/L date. Any failure occurred within this period due to our responsibility, we'll supply you the spare parts for free and permanent technical support &consultation all life long for our flake ice machines.
