Brand Name: OEM hot runner coil heater for mould machine
Model Number: HC032
Place of Origin: Guangdong, China (Mainland)
China Dongguan hot runner coil heater for mould machine
Detailed description of Built in thermocouple spring hot runner coil heater
hot runner coil heater for mould machine is an advanced concept of thermal engineering which has a construction similar to high watt density cartridge heaters. These heaters are also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube. These heaters can be constructed with or without built in thermocouples. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc.
Heating section |
2.2x4.2mm 3x3mm 4x4mm |
Heating coil ID |
10mm~100mm |
Heating ring height |
40mm~200mm |
Voltage |
110V~480V |
Wattages |
200W~50,000W |
Build-in thermocouple power |
With or without J/K thermocouple |
Lead wire |
500/1000/1200/1500/2000mm |
Features of hot runner coil heater for mould machine
1. Standard sizes available with various cross section
2. Various Watt Density option available
3. Designed for even heat profile
4. Precision fit on Hot Runner Nozzles
5. Highly Non-corrosive
6. Choice of Terminal Exits
7. Advanced Thermal Engineering
8. Available with in built Thermocouple
Applications of hot runner coil heater for mould machine
1. Injection moulding machine nozzle
coil heater 120volt with thermocouple 3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.

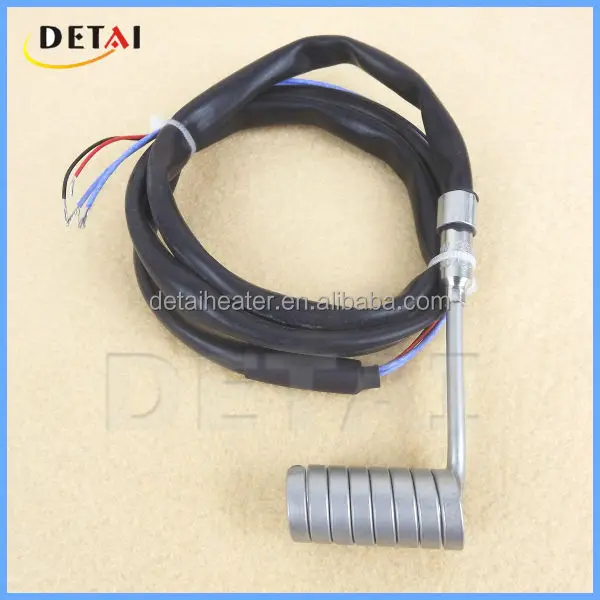

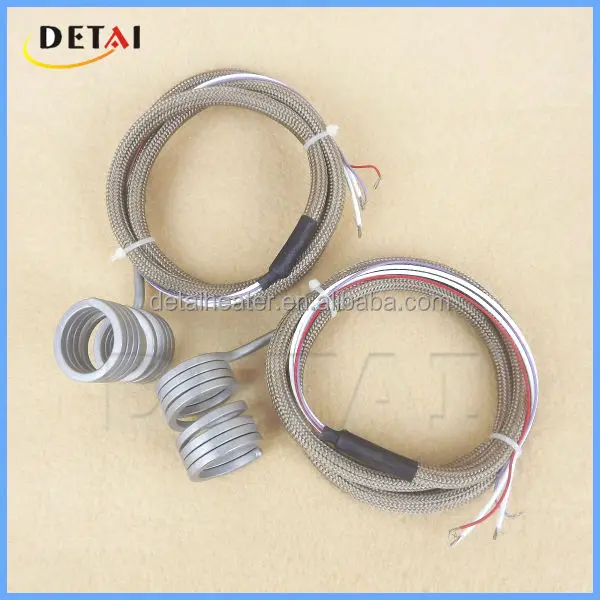

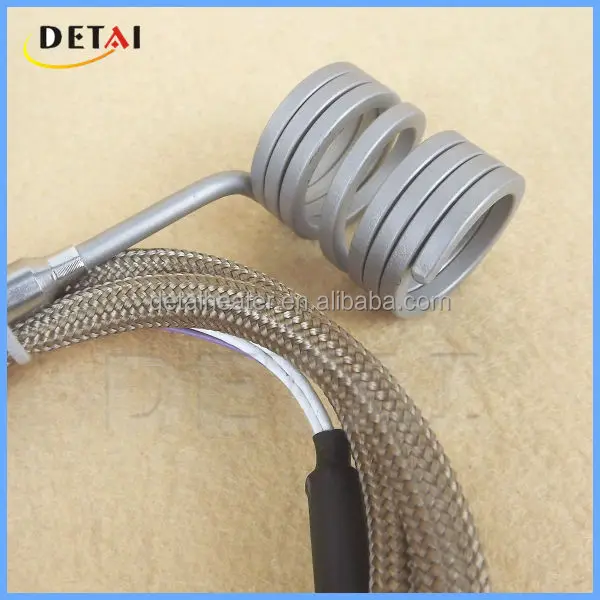

Photo show of
