Single head heaters for injection molding machine

    Single head heaters for injection molding machine

Heaters for injection molding machine  is a piece of equipment made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens and so forth.

Heaters for injection molding machine

1.Resistance wire (NiCr20/80)

2.Material: stainless steel 304,321,316, Incoloy 800, Incoloy 840

3.Maximum temperature 800°C

4.Standard cold length at lead exit: 0.375"

5.Standard cold length at disc end: 0.25"

6.Thermocouple: K or J

7.Cable wire: silicone wire, metal protection wire, fiberglass wire, etc

8.Flange/thread: M12, M14, M16, 1", 1 1/4", 1 1/2", 2",etc

9.Diameter: 6-25mm

Application of Heaters for injection molding machine

1.Injection moulding - Internal heating of nozzles

2.Hot runner systems - Heating of manifolds

3.Packaging industry - Heating of cutting bars, hot stamps

4.Laboratories - Heating of analytical equipment

5.Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy

6.Telecommunications: Deicing, Enclosure Heater

7.Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,

8.Food Service: Steamers, Dish Washers,

9.Industrial: Packaging Equipment, Hole Punches, Hot Stamp.

Features of  Heaters for injection molding machine

1.Long lifespan, rational internal structure design. Using imported high-purity magnesium oxide mandrel and magnesium power for filling, high thermal conductivity

2.Using Centerless Machine to standardize Diameter, high thermal efficiency, fast heat dissipation.

3.Advanced technology and equipment make the quality good and stable.

4.All items have passed CE and UL certification.

For made-to-order heating element rod, please specify

1)Diameter

2)Overall length

3)Volt / watt

4)Lead option and length or terminal configuration

5)Lead end no-heat if different from standard

Shipping method of  Heaters for injection molding machine

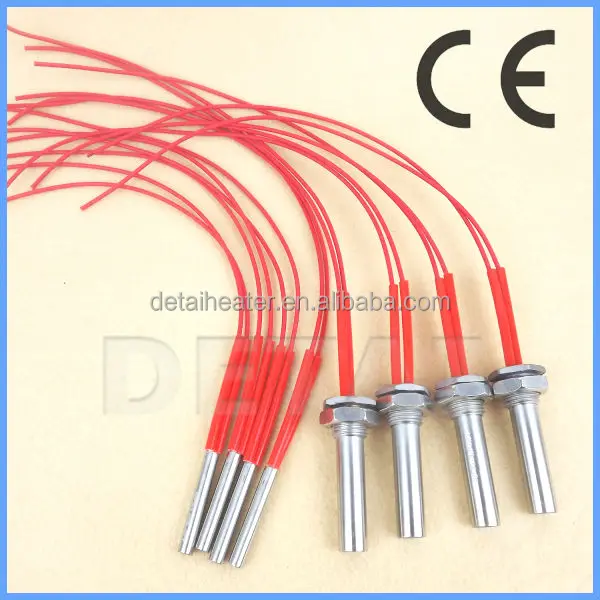

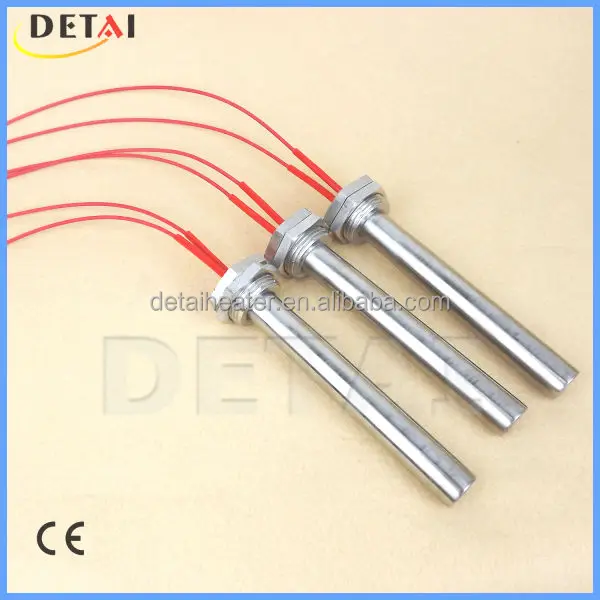

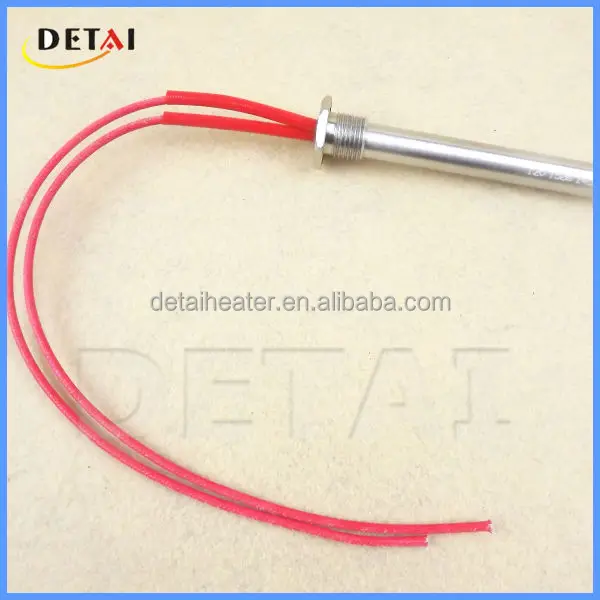

Display photo of  Heaters for injection molding machine
