Brand Name: OEM Cartridge Heater
Model Number: DT-CCHE170627
Place of Origin: Guangdong, China (Mainland)

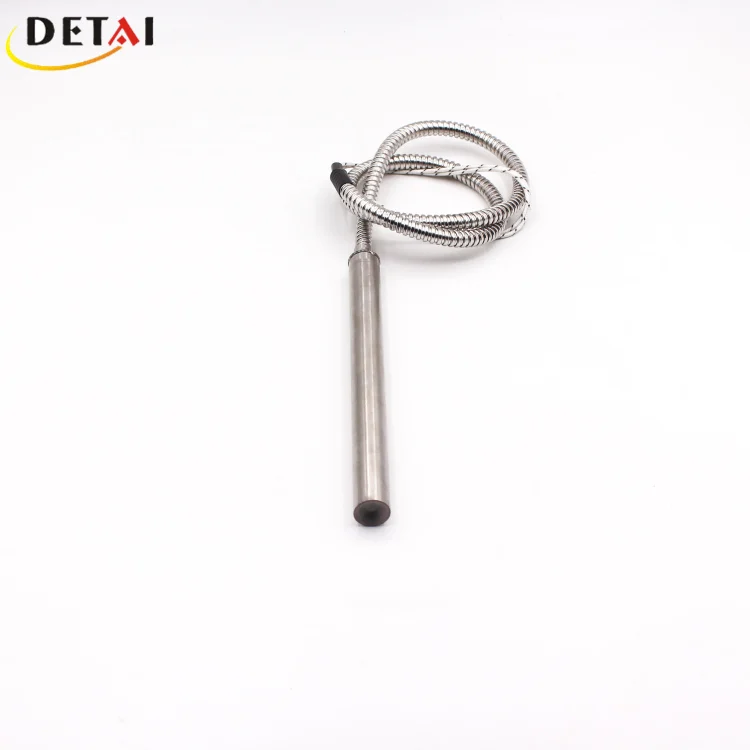

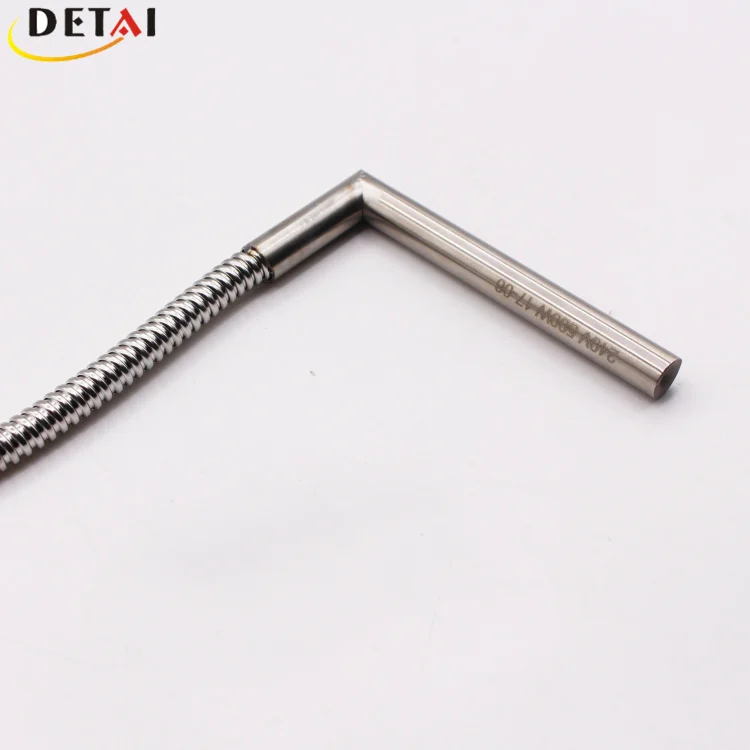

Cartridge Heaters 240V 150W/850W/500W/2400W
Specifications of cartridge heating element
Material: | Stainless steel 304, |
Tube diameter: | 10mm |
Tube length: | 90mm |
Watt: | 500w |
Volt: | 240v |
Any different size can be customized for you!
Applications of cartridge heating element
1. Injection moulding - Internal heating of nozzles
2. Hot runner systems - Heating of manifolds
3. Packaging industry - Heating of cutting bars, hot stamps
4. Laboratories - Heating of analytical equipment
5. Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
6. Telecommunications: Deicing, Enclosure Heater
7. Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters
8. Food Service: Steamers, Dish Washers
9. Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
Features & benefits of cartridge heating element
Key features | Benefits |
• Main components: o High-grade nickel chromium resistance wire, o MgO core, o Stainless steel tubing, o Stranded leads with silicon-impregnated mica glass insulation, or swaged in • Special sizes, wattages, and materials are available upon request; • Custom-designed to meet your specifications. • Pin leads are available |
• Easy and economical to install • Designed with first-class materials • Maximized heat transfer • Easy to maintain • Uniform temperatures • Oxidation and corrosion resistant |
