12v dc solar water heater parts electric heater element
1.Basic specifications of electric heater element
Material: | Stainless steel 304 |
Pipe diameter: | 8mm |
Heater length: | 175mm |
Watt: | 300w |
Volt: | 12v |
Flange/thread: | 1"NPT |
2. Technical datas of electric heater element
Power tolerance: | +5%, -10% |
Size tolerance: | ± 3mm |
Cold pressure capacity: | 1500v/0.5mA/S |
Hot pressure capacity: | 1250v/0.5mA/S |
Leakage current: | When rated voltage is used, leakage current |
3. Features & benefits
Features | Benefits |
A variety of element sheath and screw plug materials | *Meets your application needs |
Integral thermowells | *Provides convenient temperature sensor insertion and replacement without draining the fluid being heated |
All units are inspected and/or tested | * Ensures element-to-flange pressure seals do not leak |
Direct replacement | * Provides a single source supplier for many OEM applications |

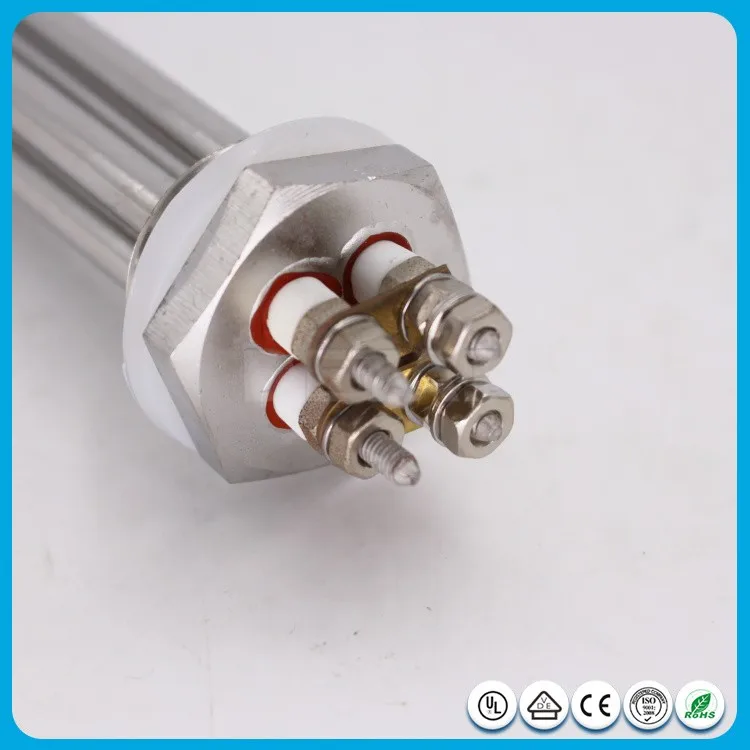

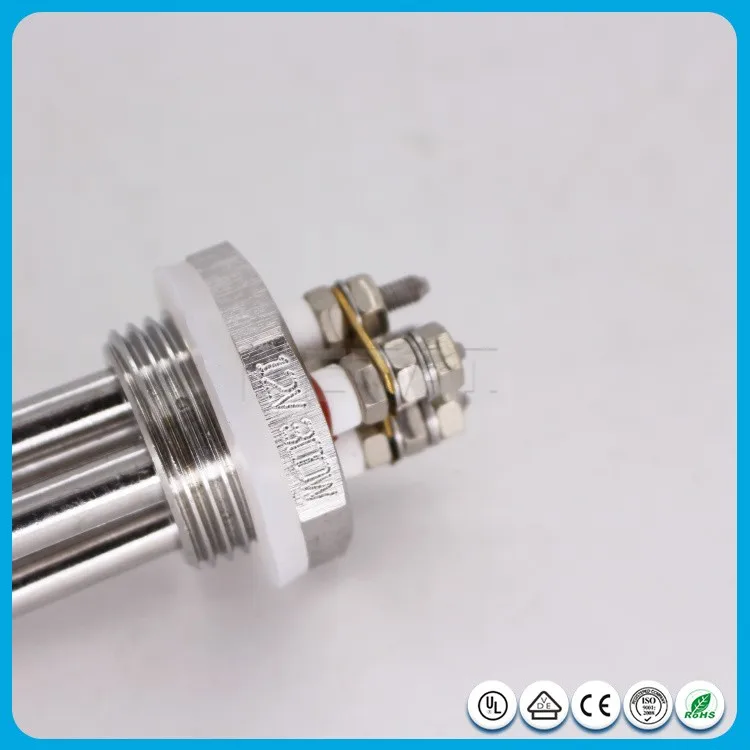

Detailed Images of electric heater element
