Alibaba Express China Supplier 2016 horizontal gas or oil fired thermal oil boiler for rubber factory

Alibaba Express China Supplier 2016 horizontal gas or oil fired thermal oil boiler for rubber factory

FOB Price:

US 4500-150000 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

120 Unit/Units per Month

Port:

Qingdao/Tianjin/Shanghai

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

YuTong

Products Model:

YY(Q)W

Products Details
Company Profile

Quick Details

Brand Name: YuTong

Model Number: YY(Q)W

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up, and then covered with dedicated water-proof paulin, the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box, some auxiliaries are single packaged, such as burner. The products could be transported by ship and train, customers could designate the ports. If necessary, the small auxiliaries could be transported by airplane.
Delivery Detail: Within 20 days

Specifications

Product Description

Sitong YY(Q)W series hot oil boiler is horizontal type boiler with oil or gas as the fuel. It is patent products of Sitong Boiler, the patent number is ZL 2014 2 0508472.3. It is an safe and low energy consumption boiler with working characteristics of low pressure (1.0 MPa) and high temperature (350℃). The heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating.

Features

1. Sitong Boiler designs, manufactures, inspects, packages boiler products in accordance with the provisions of ISO9001.

2. Sitong Boiler has got CE certificate of YY(Q)W series thermal oil boiler, also, we can offer SGS, BV inspection.

3. The 100% NDT make sure the boiler life span more than 20 years.

4. The brand of controller element is Siemens/ Delixi. The electric control cabinet adopts PLC touch screen, displays in English.

5. The brand of burner is Italy Baltur/ Rellio, fuel burn sufficiently. It has the function of furnace cleaning, automatic ignition, ignition detection, high and low pressure protection, and leakage detection, etc, ensure the safe operation.

6. Large diameter combustion chamber, high thermal efficiency.

7. Reasonable coil design, the coil is made of multi-heads and small diameter steel pipe, low stress, good expansive property, safe and reliable.

8. Equipped with full automatic operation control system and safety monitoring devices, ensure safe and reliable operation

Technical Parameters

Model	YYW-120YC	YYW-230YC	YYW-350YC	YYW-470YC	YYW-700YC	YYW-930YC	YYW-1200YC

Item
Rated power(KW)	120	230	350	470	700	930	1200
Design	0.9
pressure(Mpa)
Rated working	0.6
pressure(Mpa)
Highest working	320	320	320	320	320	320	320
temperature(C)
Furnace oil	0.1	0.2	0.28	0.38	0.55	0.75	1
volume(m3/h)
Circulation oil	12.5	32	40	60	80	100	100
volume(m3/h)
Pipe connection diameter(DN)	50	65	80	80	100	125	125
Thermal Efficiency	75	80	85	85	85	85	85
(%)
Size (m)	1.5x1.1x1.4	2.0x1.2x1.5	2.5x1.3x1.6	2.7x1.6x1.9	3.1x1.6x1.9	3.8x1.7x2.0	3.8x1.8x2.1
Weight (t)	2	2.9	3.7	4.5	4.9	5.5	6.5

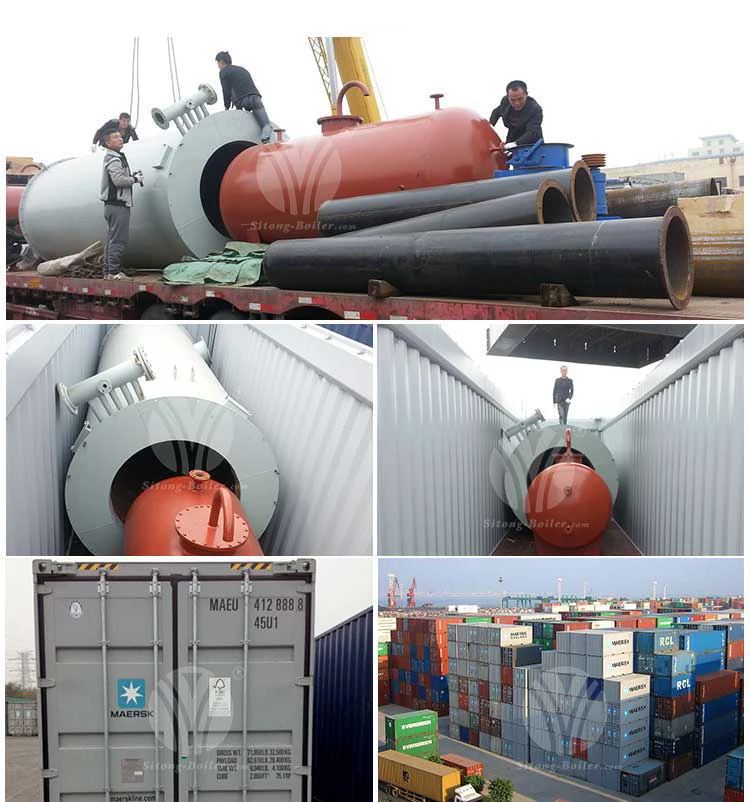

Packaging & Shipping

The YYW series gas oil fired thermal oil heater is shipping to Malaysia, customer use the light oil as the fuel, and use the boiler for his new plywood plant.

Why choose us?

1.Chinese Famous Brand

2.Super High Quality, Competitive Price

3.Big Production Ability

Henan Sitong boiler Co., Ltd. is the national fixed-point production grade A boiler manufacture enterprise. Sitong boiler industrial park adjacent to national highway No.311 and Zhou-Shang expressway, the traffic is convenient, radiation far-reaching. Our company has perfect quality assurance system and advanced production technology, Rigorous scientific management mode and excellent service before-selling, sale and after-selling, Deep farce management concepts and the elegance of the enterprise culture. In the Trade Union, Our Company may be said that: brilliant achievements and well-established. It is also "Sitong boiler finds its way into every family, safety warm him, you and I.

Our major products are coal, oil, gas, steam (hot) water boiler, Electric heating steam (hot) water boiler, Environment and Energy-saving half gas boiler steam (hot) water boiler, Organic heat carrier furnace, Wastes incinerator, High, medium-temperature hot air stove and other 18 series of 100 specifications. Our company has strong development capacity, professional development engineer adopts CAD computer design, clay modelling and rapid prototyping technology, use the optical 3D scanner to engage in data acquisition engineering, and apply to auxiliary product appearance design, to complete test analysis and detection equipment and tools. Thus we make you enjoy the frontier technology of infinite scene from design and manufacturing of each procedure.

Our Company adhere to the science and technology as the guide, human as the support, quality as assurance and service continuously advance. and follow the management idea of "While a boiler leaves our factory , we make a friend, build a demonstration project and develop a piece of the market", 24 hours of experts substation telephone and computer network service, so as to provide sincerely help at any moment. We constantly win more market share and the trust of customers, which lay the foundation for the internationalization of "Sitong boiler".

Qualification massiness, enterprises culture full-bodied, technology-first, "Sitong boiler" walk the development of "Industrialization, Scalization and Branding", targeting technology commanding heights, building a "Yutong" brand, create the China boiler industry brilliancy hand in hand with the domestic colleague.
