rice husk charcoal fired steam boiler suppliers

rice husk charcoal fired steam boiler suppliers

FOB Price:

US 5411-89000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Set/Sets per Month

Port:

Qingdao/Tianjin/Shanghai

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Yutong

Products Model:

DZL

Products Details
Company Profile

Quick Details

Brand Name: Yutong

Model Number: DZL

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Plywood case professional packaging transportation
Delivery Detail: Shipped in 15 days after payment

Specifications

rice husk / charcoal fired steam boiler suppliers

Product Description

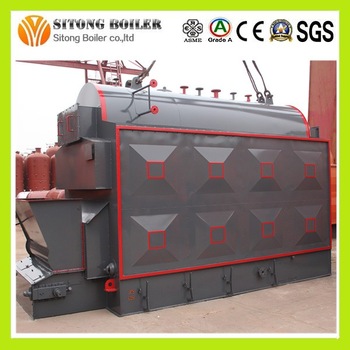

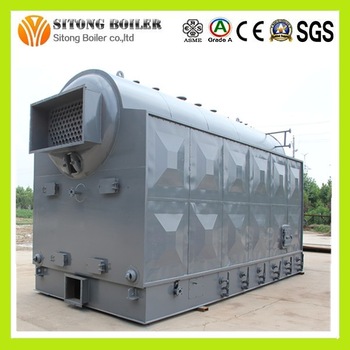

DZL series coal fired horizontal type packaged boiler is single drum longitudinal type with natural circulation, the main components are installed within the factory. After installing the large parts, just need to setup pipeline, instrumentation valves, flue duct, and slag extractor, etc, connect water and electricity power, and incorporated into the heating network system, then the boiler could operate.

This boiler is consisted of boiler drum, furnace and convection pass, which are made up of two sides water-cooled tubes, the front smoke box is consisted of four casing pipes and front tube plate, the boiler drum is equipped with thread convection tubes. Chain grate is under the water cooling system, to support the whole boiler body, to form a packaged boiler.

Techinque Paratmeters of rice husk / charcoal fired steam boiler suppliers

Model Item	DZL1-0.7-T DZL1-1.0-T DZL1-1.25-T	DZL2-0.7-T DZL2-1.0-T DZL2-1.25-T	DZL4-1.25-T DZL4-1.6-T	DZL6-1.25-T DZL6-1.6-T	DZL8-1.25-T DZL8-1.6-T	DZL10-1.25 DZL10-1.6
Rated evaporation capacity (t/h)	1	2	4	6	8	10
Working pressure(Mpa)	0.7/1.0/1.25	0.7/1.0/1.25	1.25/1.6	1.25/1.6	1.25/1.6	1.25/1.6
Rated steam temperature(℃)	170/184/194	170/184/194	194/204	194/204	194/204	194/204
Feed water temperature(℃)	20	20	20	20	20	20
Effective area of grate(m2)	2.22	4.1	5.85	7.95	9.75	10.77
Fuel consumption (Kg/h)	200	400	800	1200	1600	2010
Exhaust flue gas temperature(C)	150	150	150	150	150	150
Thermal Efficiency (%)	82	82	82	82	82	82
Size(m)	5.1x 2.2x 3.0	5.5x 2.3x 3.3	6.6x 2.6x 3.6	8.2x 2.9x 3.8	8.1x 3.1x 3.8	7.7x 3.2x 3.6 8.6x 3.0x 2.6
Weight (t)	17	23	25	35	45	33 28

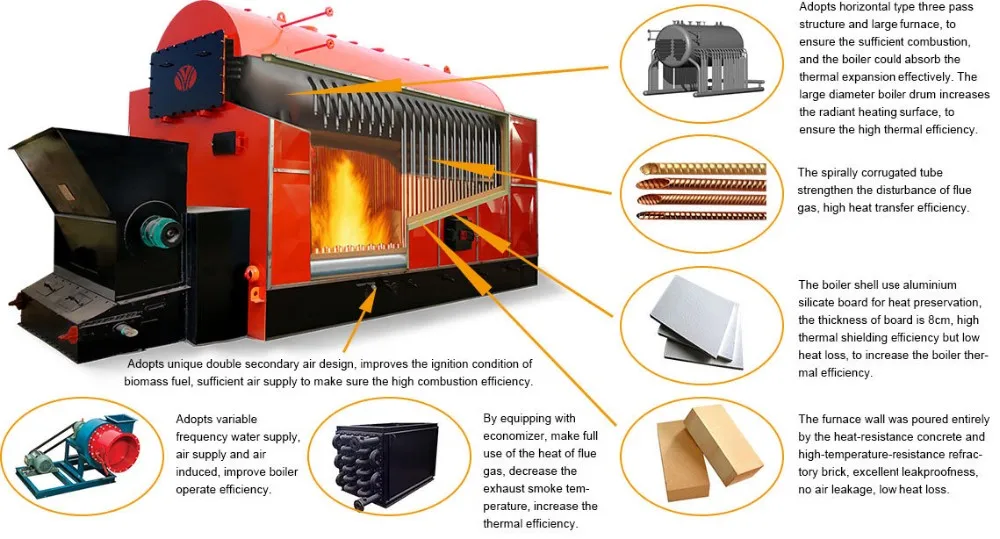

Features of rice husk / charcoal fired steam boiler suppliers

1.The overall layout is compact, covers a small area. Only single storey layout is needed for the boiler room, low cost on infrastructure construction, convenient for transportation, and short installation period.

2.Using spirally corrugated tubes, strengthen the disturbance of flue gas, high heat transfer efficiency.

3.Reasonable design, safe and reliable operation, flat fire bed, and high thermal efficiency.

4.Complete auxiliaries, mechanized coaling and slag tapping, convenient operation.

5.Use chain grate, low coal leakage, good ventilation, wide adaptability of different coals.

6.The boiler shell use aluminium silicate board for heat preservation, low heat loss.

7.Equipped PLC full automatic intelligent control system, operate automatically.

8.Full automatic interlock protection program, has the protection function of water shortage, over pressure, over temperature, gas leakage, flame out, and electric leakage, etc.

9.By equipping with economizer, make full use of flue gas heat, increase the thermal efficiency.

Company Information

Sitong Boiler Co., Ltd was founded in 1978, it is a national approved and designated enterprise, with design and manufacture license permits of A1, A2 boiler and D1 pressure vessel. The company passes ISO 9001

international quality system certification, and gains the international certificates of CE, SGS, and BV, etc. The factory covers an area of 130,000m²with more than 1000 employees in total. Sitong Boiler has the independent

import-export qualification. The industrial boilers and pressure vessel have exported to more than 60 countries all over the world. Moreover, Sitong Boiler has set up about 100 overseas agencies in Bangladesh, the Philippines,

Sri Lanka, Ukraine, Korea and Ethiopia, etc.

Packaging & Shipping

Sitong Boiler has exported the DZL series coal fired boiler to many countries, such as Philippines, Sri Lanka, Bangladesh, and UK.

Henan Sitong boiler Co., Ltd. is the national fixed-point production grade A boiler manufacture enterprise. Sitong boiler industrial park adjacent to national highway No.311 and Zhou-Shang expressway, the traffic is convenient, radiation far-reaching. Our company has perfect quality assurance system and advanced production technology, Rigorous scientific management mode and excellent service before-selling, sale and after-selling, Deep farce management concepts and the elegance of the enterprise culture. In the Trade Union, Our Company may be said that: brilliant achievements and well-established. It is also "Sitong boiler finds its way into every family, safety warm him, you and I.

Our major products are coal, oil, gas, steam (hot) water boiler, Electric heating steam (hot) water boiler, Environment and Energy-saving half gas boiler steam (hot) water boiler, Organic heat carrier furnace, Wastes incinerator, High, medium-temperature hot air stove and other 18 series of 100 specifications. Our company has strong development capacity, professional development engineer adopts CAD computer design, clay modelling and rapid prototyping technology, use the optical 3D scanner to engage in data acquisition engineering, and apply to auxiliary product appearance design, to complete test analysis and detection equipment and tools. Thus we make you enjoy the frontier technology of infinite scene from design and manufacturing of each procedure.

Our Company adhere to the science and technology as the guide, human as the support, quality as assurance and service continuously advance. and follow the management idea of "While a boiler leaves our factory , we make a friend, build a demonstration project and develop a piece of the market", 24 hours of experts substation telephone and computer network service, so as to provide sincerely help at any moment. We constantly win more market share and the trust of customers, which lay the foundation for the internationalization of "Sitong boiler".

Qualification massiness, enterprises culture full-bodied, technology-first, "Sitong boiler" walk the development of "Industrialization, Scalization and Branding", targeting technology commanding heights, building a "Yutong" brand, create the China boiler industry brilliancy hand in hand with the domestic colleague.
