Home > Products > Heating > Boiler

superheated steam boiler water tube boiler

superheated steam boiler water tube boiler

FOB Price:

US 3500-150000 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

150 Unit/Units per Month

Port:

Shanghai Qingdao Tianjing

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,T/T

Brand:

YuTong

Products Model:

LSS

Products Details
Company Profile

Quick Details

Brand Name: YuTong

Model Number: LSS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up, and then covered with dedicated water-proof paulin, the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box, some auxiliaries are single packaged, such as burner. The products could be transported by ship and train, customers could designate the ports. If necessary, the small auxiliaries could be transported by airplane.
Delivery Detail: Within 15-20 days after ordering

Specifications

product description

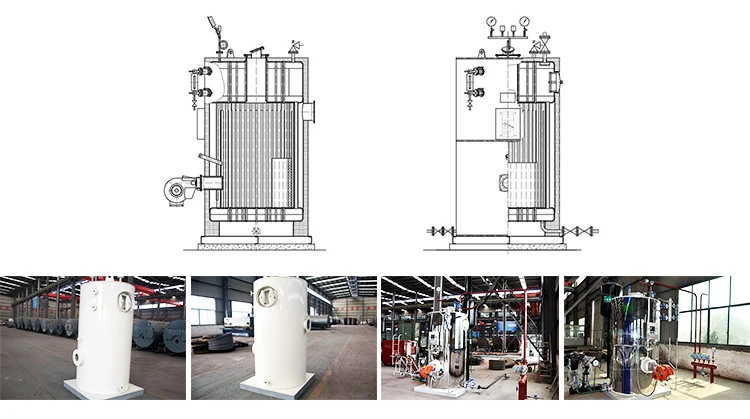

The LSS series vertical type oil gas fired steam boiler is the patent product of Sitong Boiler, the patent number is ZL 2014 2 0508072.2. The steam boiler is an exquisite small steam capacity (0.1-1tph) equipment. It is three-pass structure steam boiler with top-fired burner. The flame can completely spread from the top to the bottom and burn sufficiently. The gas need to make a three pass heat transfer, so the heat loss is reduced and the thermal efficiency is higher.

Features

1.The shell could be stainless steel, the appearance is much more delicate.

2.WE can provide service within 48 hours if any support needed.

3.The technical teams will visit customer for after-sale services every quarter.

4.The 100% NDT make sure the boiler life span more than 20 years.

Technical Parameters

Model Item	LSS0.1-0.4-Y(Q)	LSS0.2-0.4-Y(Q)	LSS0.3-0.4-Y(Q) LSS0.3-0.7-Y(Q)	LSS0.5-0.4-Y(Q) LSS0.5-0.7-Y(Q)	LSS0.7-0.4-Y(Q) LSS0.7-0.7-Y(Q)	LSS1-0.4-Y(Q) LSS1-0.7-Y(Q)
Rated evaporation capacity (t/h)	0.1	0.2	0.3	0.5	0.7	1
Working pressure(Mpa)	0.4	0.4	0.4/0.7	0.4/0.7	0.4/0.7	0.4/0.7
Rated steam temperature(℃)	151	151	151/170	151/170	151/170	151/170
Feed water temperature(℃)	20	20	20	20	20	20
Heating area (m2)	3	3	3	3	3	3
Thermal Efficiency (%)	89	89.2	89.5	89.6	91	91
Size(m)	0.8x 1.94	0.9x 2.7	1.2x 2.58	1.3x 2.95	1.6x 3.0	1.5x 3.2
Weight (t)	0.83	1	1.28	2.1	3.5	4.1

Application

Sitong LSS series vertical type steam boiler can be wildly used in pharmaceutical industry, chemical industry, light industry, textile, building materials, farming, food and beverage, plastics and foam, printing & dyeing and washing, rubber processing, paper making, wood processing, hotel, garment leather, etc. This series boiler can also be applied to generate electricity at some districts where electricity power is in short. So are a variety of industrial productions, living and remote areas, and oil field. Even they can be used as a power plant boiler start-up.

Packaging & Shipping

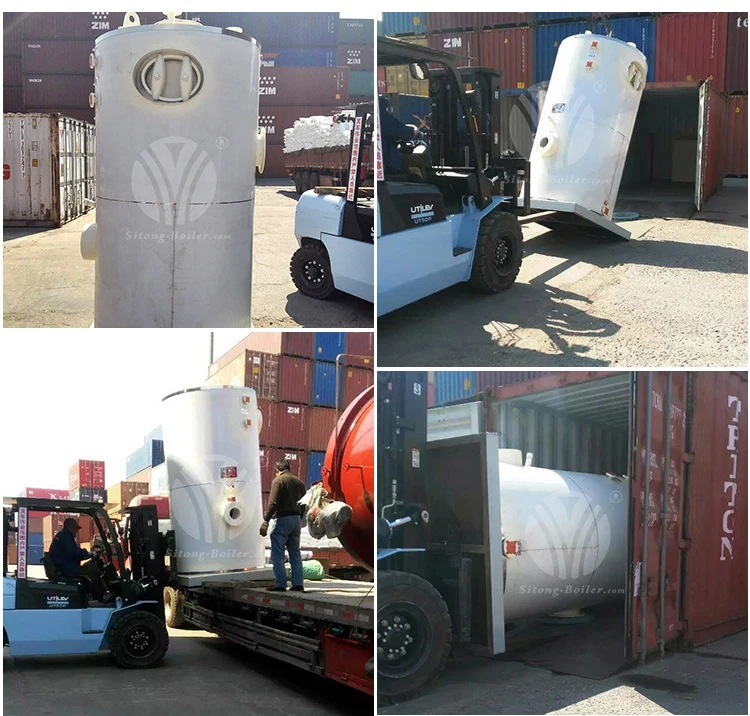

The Philippines customer purchased LSS Water tube boiler, and used it for food processing industry, the fuel he used is light oil. Sitong Boiler complete this transaction from boiler design to shipping with in only 15 days.

Company Information

Business Exhibition

Henan Sitong boiler Co., Ltd. is the national fixed-point production grade A boiler manufacture enterprise. Sitong boiler industrial park adjacent to national highway No.311 and Zhou-Shang expressway, the traffic is convenient, radiation far-reaching. Our company has perfect quality assurance system and advanced production technology, Rigorous scientific management mode and excellent service before-selling, sale and after-selling, Deep farce management concepts and the elegance of the enterprise culture. In the Trade Union, Our Company may be said that: brilliant achievements and well-established. It is also "Sitong boiler finds its way into every family, safety warm him, you and I.

Our major products are coal, oil, gas, steam (hot) water boiler, Electric heating steam (hot) water boiler, Environment and Energy-saving half gas boiler steam (hot) water boiler, Organic heat carrier furnace, Wastes incinerator, High, medium-temperature hot air stove and other 18 series of 100 specifications. Our company has strong development capacity, professional development engineer adopts CAD computer design, clay modelling and rapid prototyping technology, use the optical 3D scanner to engage in data acquisition engineering, and apply to auxiliary product appearance design, to complete test analysis and detection equipment and tools. Thus we make you enjoy the frontier technology of infinite scene from design and manufacturing of each procedure.

Our Company adhere to the science and technology as the guide, human as the support, quality as assurance and service continuously advance. and follow the management idea of "While a boiler leaves our factory , we make a friend, build a demonstration project and develop a piece of the market", 24 hours of experts substation telephone and computer network service, so as to provide sincerely help at any moment. We constantly win more market share and the trust of customers, which lay the foundation for the internationalization of "Sitong boiler".

Qualification massiness, enterprises culture full-bodied, technology-first, "Sitong boiler" walk the development of "Industrialization, Scalization and Branding", targeting technology commanding heights, building a "Yutong" brand, create the China boiler industry brilliancy hand in hand with the domestic colleague.
