Heavy Oil fired Steam Boiler Capacity 3 t h

Heavy Oil fired Steam Boiler Capacity 3 t h

FOB Price:

US 4500-150000 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

120 Unit/Units per Month

Port:

Qingdao/Tianjin/Shanghai as client's request for steam boiler gas

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

YUTONG

Products Model:

WNS

Products Details
Company Profile

Quick Details

Brand Name: YUTONG

Model Number: WNS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up, and then covered with dedicated water-proof paulin, the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box, some auxiliaries are single packaged, such as burner. The products could be transported by ship and train, customers could designate the ports. If necessary, the small auxiliaries could be transported by airplane.
Delivery Detail: Shipped in 15-20 days after payment

Specifications

Product Description

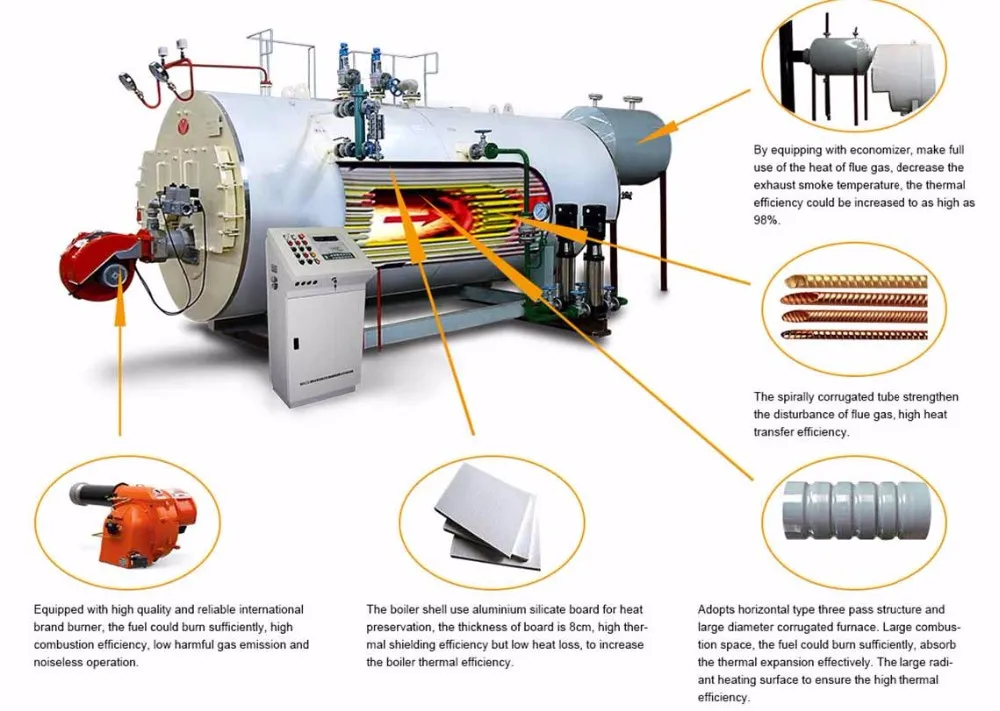

Sitong WNS series gas oil steam boiler is an safe equipment with full automatic control system. It is the patent products of Sitong Boiler, the patent number is 2014 2 0504448.2. The 0.5~20ton steam boiler for food industry has wet back structure, it can adapt to the high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency. As a packaged fire tube boiler, it has the characteristics of compact structure and small size, strong load adaptability and low water quality requirement. By equipping with economizer, the thermal efficiency could reach as high as 98%.

Safety Assurance of Heavy Oil fired Steam Boiler Capacity 3 t h

Efficiency Assurance of Heavy Oil fired Steam Boiler Capacity 3 t h

Automatic Protection Device of Heavy Oil fired Steam Boiler Capacity 3 t h

1. Monitoring of water level

2. Setting time

3. Electric leakage protection

4. Water shortage protection

5. Power abnormal protection

6. Over pressure protection

7. Intergrated gas manifolds and protection system

8. Flue gas monitoring device

Technical Parameters of Heavy Oil fired Steam Boiler Capacity 3 t h

Model	Rated Steam Capacity (t/h)	Rated Pressure (Mpa)	Thermal Efficiency (%)	Fuel Consumption		Overall Dimension (m)	Weight (t)	Body Heating Area (m2)
Model	Rated Steam Capacity (t/h)	Rated Pressure (Mpa)	Thermal Efficiency (%)	Light oil (Kg/h)	Natural gas (Nm³/h)	Overall Dimension (m)	Weight (t)	Body Heating Area (m2)
WNS1	1	0.7/1.0	>90	66.5	75	3.6×2.0×2.0	4	25
WNS2	2	1.0/1.25	>90.2	133	150	4.8×2.5×2.46	8	60
WNS4	4	1.0/1.25	>91	266	300	5.8×2.85×2.8	13	113
WNS6	6	1.25/1.6	>91.5	399	450	7.25×3.1×3.15	19	181
WN8	8	1.25/1.6	>91.6	532	600	7.45×3.26×3.2	22.6	190
WNS15	15	1.25/1.6	>91.8	997	1125	8.7×3.7×3.5	34	346
WNS20	20	1.25/1.6	>92	1204	1418	10×3.6×4.0	45	467
Note: Parameter is for reference only, we can design the boilers based on customers’ needs.

Packaging & Shipping

The WNS series Gas Oil Fired Steam boiler is shipping to Malaysia, customer use the Light Oil as the fuel, and use the boiler for his new Textile Industry.

Case of Heavy Oil fired Steam Boiler Capacity 3 t h

Customer Visiting

Gas oil fired steam boiler is very popular, Vietnam customer uses it for the clothes factory, Ethiopia customers uses it for food processing factory, Bangladesh customer uses it for the milk processing factory, African customer use it for the wood processing factory, etc.

1.What are the available fuel for the oil gas fired boiler?

Oil gas fired boiler could burn both liquid fuel and gaseous fuel. The liquid fuel could be heavy oil, light oil, diesel, furnace oil, bunker oil, LPG (liquefied petroleum gas), etc. The gaseous fuel could be natural gas, city gas, bio-gas, etc.

Whether the boiler can burn dual fuel or multi-fuel?

Sitong boiler have oil burner, gas burner, and oil&gas dual fuel burner, we can offer the specific burner based on customers' requirement.

The brand of burner?

The brands of burner are Italy Baltur, Rellio, Elco, etc.

What is the advantages of fire tube boiler?

This fire tube boiler has compact structure and convenient operation, strong load adaptability, lower water quality requirement, and the failure rate of it is lower than 0.1!

What is the inlet pressure of gas burner?

The inlet gas pressure is different for different capacity boiler, for example, the pressure for 2 ton steam capacity boiler is about 8~10KPa, while for 4 ton steam capacity boiler is about 18~20KPa.

The requirement of gas-fired steam boiler for local atmospheric pressure

Required environment: 20℃, 1013.25mbar.
When select the model, the environment condition (temperature and elevation) should be considered, correct the burner output curve when the environment condition is different
