5000kg hr industrial dual fuel steam boiler

5000kg hr industrial dual fuel steam boiler

FOB Price:

US 4500-150000 / Unit

Min.Order Quantity:

1 Unit/Units

Supply Ability:

120 Unit/Units per Month

Port:

Qingdao/Tianjin/Shanghai as client's request for steam boiler gas

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,gas oil fired steam boiler

Brand:

YUTONG

Products Model:

WNS

Products Details
Company Profile

Quick Details

Brand Name: YUTONG

Model Number: WNS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: When transport, the boiler body and large auxiliary equipments (platform, chimney, economizer, etc ) are nude packed or tied up, and then covered with dedicated water-proof paulin, the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box, some auxiliaries are single packaged, such as burner. The products could be transported by ship and train, customers could designate the ports. If necessary, the small auxiliaries could be transported by airplane.
Delivery Detail: Shipped in 15-20 days after payment

Specifications

Product Description

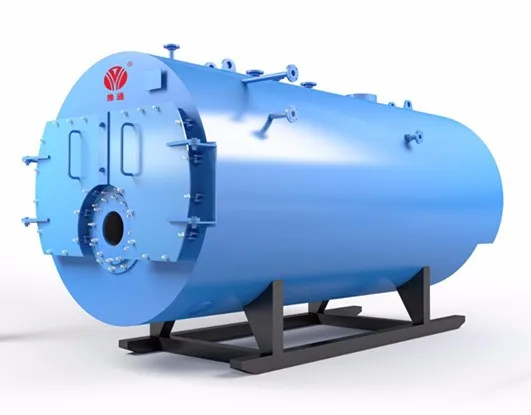

Introduction of 5000kg/hr industrial dual fuel steam boiler

Type:WNS

Capacity/Hot Power:1-20t/h / 0.7-14MW
Pressure:≤1.6MPa
Fuel:Natural Gas,Light Oil,Diesel Oil etc.
Application:Heating Supply,Hotel,Food & Beverage,Garment Manufacturing

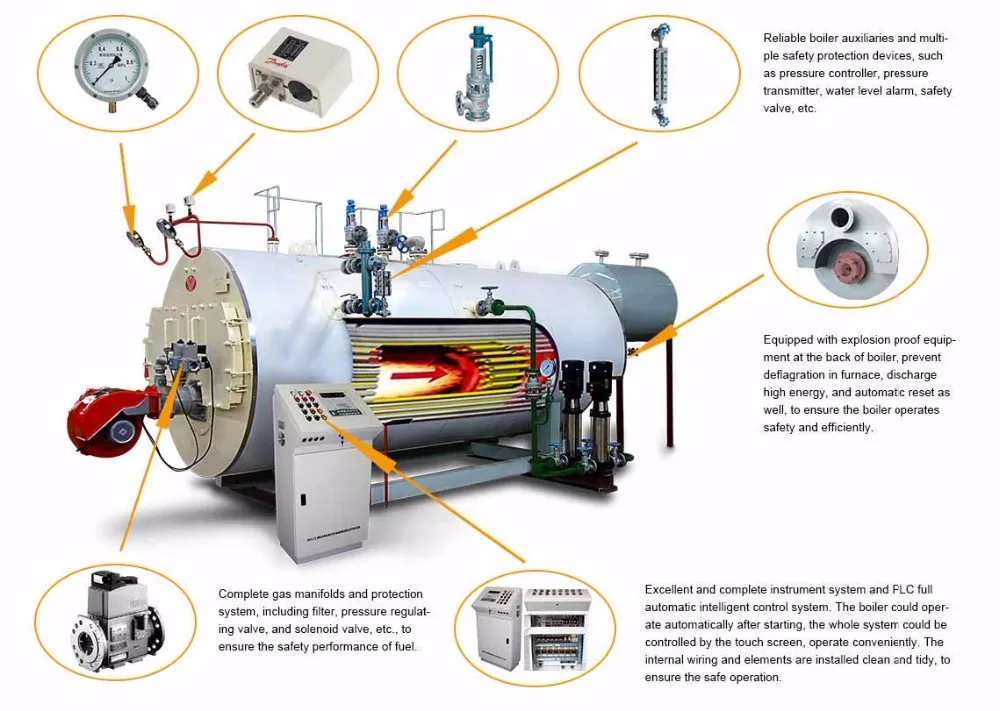

Features of 5000kg/hr industrial dual fuel steam boiler

1.Three-pass structure, big volume of the combustion chamber, burning fully.
2.Corrugated furnace structure increases the heat transfer area, and also satisfies the free expansion after the furnace is being heated.
3.Thread smoke tube enhances the heat transferred effect.
4.Wet back structure, whole plate boundary butt-jointed with seam.
5.Rear view device is easy to observe combustion status.
6.Multiple protective devices make the operation safe and reliable.
7.Color pattern plate packaging, mirror finished stainless steel, or brushed stainless steel, elegant appearance.
8.Imported combustor, automatic operation.
9.High boiler thermal efficiency, stable output, strong load adaptability.

Product Application of 5000kg/hr industrial dual fuel steam boiler

Oil Gas boiler is widely used in chemical industry, plastics industry, coatings and automotive industries, bitumen industry, construction equipment industry, shipbuilding industry, apparel clothing, washing, ironing, the pharmaceutical industry, biotechnology, food industry, sauna and beauty, hotels, restaurants, sports, fitness and other places where need energy.

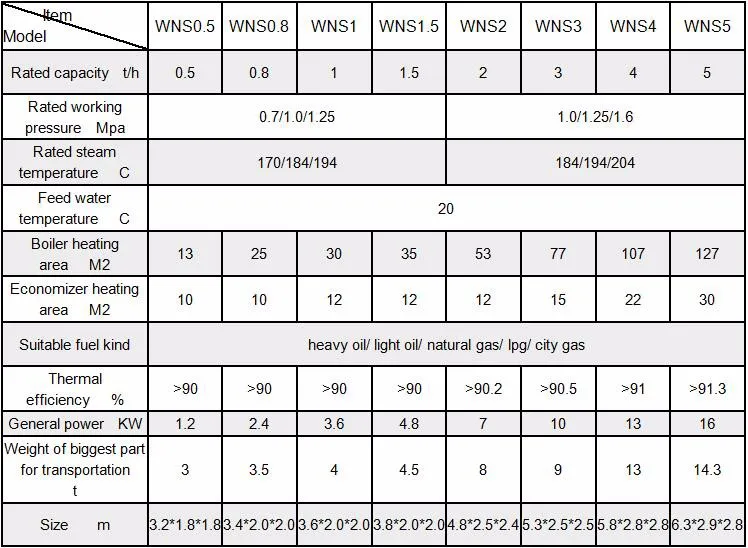

Technical Parameters of 5000kg/hr industrial dual fuel steam boiler

Detailed Images

Machine Parts

Name: Burner

Brand: Siemen/Baltur

Original: Japan/Italy

The brand of the burner is Italy Baltur, we also use Rellio. There are gas burner, oil burner, and oil and gas duel fuel burner. The fuel could be diesel, furnace oil, bunker oil, natural gas, city gas, bio-gas, and LPG, etc.

Main Parts

Name: Threaded Smoke Pipe
Brand: Sitong
Original: China
The boiler use spirally corrugated tube, the thermal transfer efficiency is high. The texture of it is 20# steel, it belongs to low-carbon steel, has high tenacity.

Machine Parts

Name: Corrugated Furnace
Brand: Sitong
Original: China
The combustion chamber is composed of largediameter corrugated furnace, the thickness of corrugated furnace is between10~18mm, large combustion space, and combustion sufficient.

Main Parts

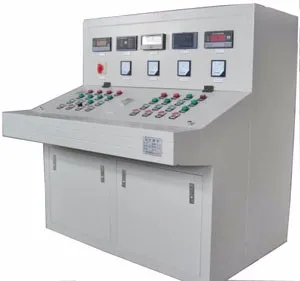

Name: ElectricControl Cabinet
Brand: Sitong
Original: China
The electric control cabinet adopts PLC touch screen, you can find the working condition of this boiler, such as combustion state, pressure, water level, and smoke temperature. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.

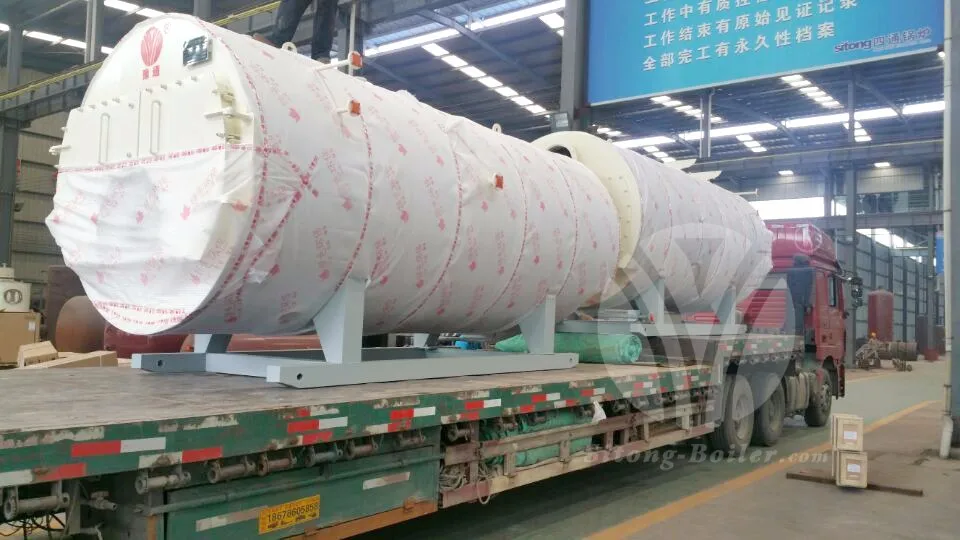

Packing & Delivery

The 4 ton WNS series fire tube steam boiler for Bangladesh Brewery Processing Plant.

The working capacity is 16bar, and use diesel oil fuel.

Two sets 5 ton ans 2 ton Steam Boiler For Mongolia food packaging company.

The working pressure:1.25MPa , Fuel: natural gas.

Our Company

Company Profile of 5000kg/hr industrial dual fuel steam boiler

Sitong Boiler Company is a national approved and designated enterprise, with design and manufacture license permits of A1, A2 boiler and D1 pressure vessel. The company passes ISO 9001 international quality system certification, and gains the international certificates of CE, SGS, and BV, etc. The main products including oil gas fired boiler, coal/biomass fuel boiler, thermal oil heater, circulating fluidized bed boiler and AAC plant autoclave.

Certifications

Our Service

We have professional engineers service team. According to the customers' requirement and site specific condition, they can make the suitable and optimal solution about the after-sales service. Moreover, Sitong Boiler set up sales and after sale facilitating agencies around over 30 regions, to offer the high quality services.
1). 24hours service hotline.
2). 24 months warranty after delivery.
3). Spare parts are equipped during shipment.
4). Provide instllation, commissioning and maintance service anytime.

Fuel Type: Gas, Oil etc

Thermal Efficiency: >93%

Fuel Type: Electric

Thermal Efficiency: 99%

Henan Sitong boiler Co., Ltd. is the national fixed-point production grade A boiler manufacture enterprise. Sitong boiler industrial park adjacent to national highway No.311 and Zhou-Shang expressway, the traffic is convenient, radiation far-reaching. Our company has perfect quality assurance system and advanced production technology, Rigorous scientific management mode and excellent service before-selling, sale and after-selling, Deep farce management concepts and the elegance of the enterprise culture. In the Trade Union, Our Company may be said that: brilliant achievements and well-established. It is also "Sitong boiler finds its way into every family, safety warm him, you and I.

Our major products are coal, oil, gas, steam (hot) water boiler, Electric heating steam (hot) water boiler, Environment and Energy-saving half gas boiler steam (hot) water boiler, Organic heat carrier furnace, Wastes incinerator, High, medium-temperature hot air stove and other 18 series of 100 specifications. Our company has strong development capacity, professional development engineer adopts CAD computer design, clay modelling and rapid prototyping technology, use the optical 3D scanner to engage in data acquisition engineering, and apply to auxiliary product appearance design, to complete test analysis and detection equipment and tools. Thus we make you enjoy the frontier technology of infinite scene from design and manufacturing of each procedure.

Our Company adhere to the science and technology as the guide, human as the support, quality as assurance and service continuously advance. and follow the management idea of "While a boiler leaves our factory , we make a friend, build a demonstration project and develop a piece of the market", 24 hours of experts substation telephone and computer network service, so as to provide sincerely help at any moment. We constantly win more market share and the trust of customers, which lay the foundation for the internationalization of "Sitong boiler".

Qualification massiness, enterprises culture full-bodied, technology-first, "Sitong boiler" walk the development of "Industrialization, Scalization and Branding", targeting technology commanding heights, building a "Yutong" brand, create the China boiler industry brilliancy hand in hand with the domestic colleague.
