NEMA motor Residential Industrial Split Phase Belted Fan Motors

FOB Price:

US 121-198 / Piece

Min.Order Quantity:

20 Piece/Pieces

Supply Ability:

50000 Piece/Pieces per Month

Port:

Shanghai port

Place of Origin:

Shanghai, China (Mainland)

Payment Terms:

L/C,T/T

Brand:

Products Model:

Electric Motor

Products Details
Company Profile

Quick Details

Brand Name: GW

Model Number: Electric Motor

Place of Origin: Shanghai, China (Mainland)

Packaging & Delivery

Packaging Details: Packaging Details: Export standard: inner box+carton+wooden case Delivery Detail: Within 20-30 days after received the deposit
Delivery Detail: Shipped in 30 days after payment

Specifications

Product Description

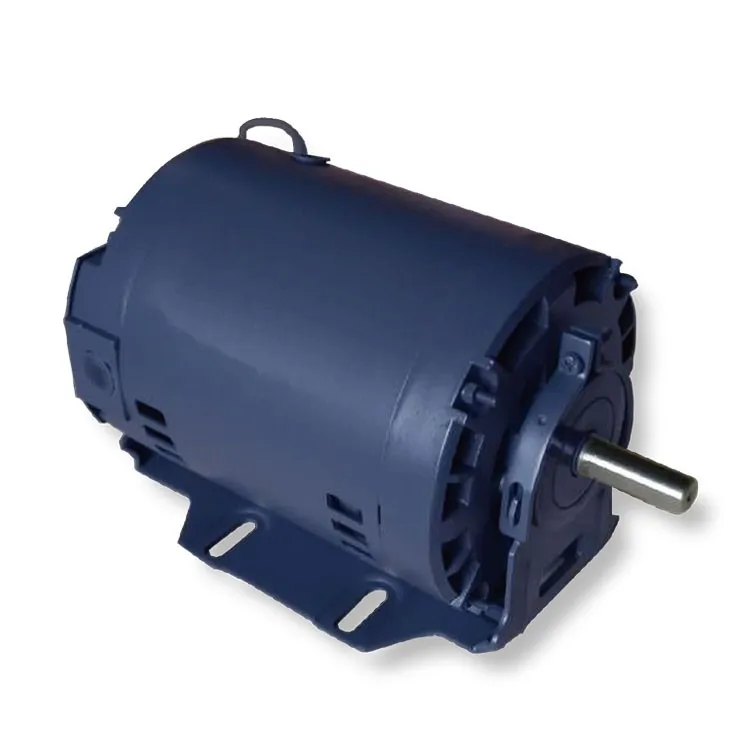

Residential / Industrial - Split Phase - Belted Fan Motors

FEATURES
· Low starting torque
· Ball bearings
· Resilient“cradle”style base
· Automatic overload protection

Motor Technical Data

Residential / Industrial - Split Phase - Belted Fan Motors

HP	RPM	FRAME	GW NO.	VOLTAGE	FLA	INS. CLASS	ENCL.	WGT LB/KG
1/6	1725	48Y	N48R16UM18L10DT	115	3.6	B	ODP	13.7/6.2
1/6	1725	48Y	N48R16UM18D10DT	115/208-230	3.6/1.6-1.8	B	ODP	13.7 / 6.2
1/4	1725	48Y	N48R25UM18L10DT	115	5	B	ODP	14.3 / 6.5
1/4	1725	48Y	N48R25UM18D10DT	115/208-230	4.6/2.2-2.3	B	ODP	14.3 / 6.5
1/3	1725	48Y	N48R33UM18L10DT	115	6.6	B	ODP	15.2/6.9
1/3	1725	48Y	N48R33UM18D10DT	115/208-230	6.6/3.0-3.3	B	ODP	15.2 / 6.9
1/2	1725	48Y	N48R05UM18L10DT	115	7.6	B	ODP	21.1 / 9.6
1/2	1725	48Y	N48R05UM18D10DT	115/208-230	7.6/3.7-3.8	B	ODP	21.1 / 9.6
3/4	1725	48Y	N48R75UM18L10DT	115	11.6	B	ODP	23.3 / 10.6
3/4	1725	48Y	N48R75UM18D10DT	115/208-230	11.6/5.9-5.8	B	ODP	23.3 / 10.6

ManufacturingProcess

Application Case

GW Industry is a leading motor manufacturer which was formally known as Shanghai Micro Motor Factory (established in 1952) and joint venture with Regal-Beloit from 2002 to 2014. The JV manufactured motors for Regal Beloit under the Leeson, Marathon, and Lincoln brands.After dissolution in 2014, this entity has become part of GW Industrial Group.

Our company produces and sells a variety of NEMA/IEC design motors including single-phase / three-phase AC asynchronous motors, brush/brushless DC motors under brand “GW”, “AG-I”, and “SMC”. Over 70% of our products are sold to US, Canada, and European markets, serving industrial applications such as Fan-Blower, Agricultural Equipment, Wash-Down Equipment, Pump, Hydraulic Machinery, Transmission Apparatus, etc.

To satisfy customer’s needs, our products are certified by UL, CSA, CE, and CCC; and all materials in our products comply with RoHS requirements. Our lab has been certified by UL and CSA since 2007, being capable of performing UL/CSA certification test on site.
