Brand Name: Yuanda Boiler
Model Number: DZH China industrial Fire Wood boiler,firewood steam boiler
Place of Origin: Henan, China (Mainland)

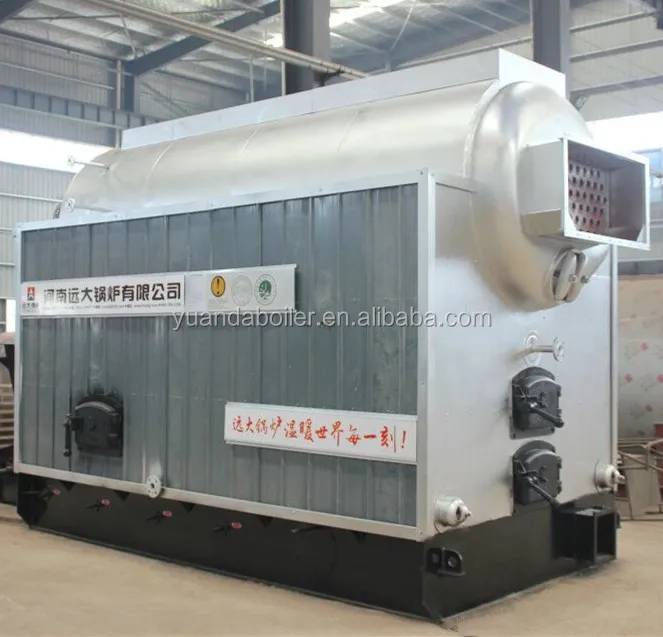

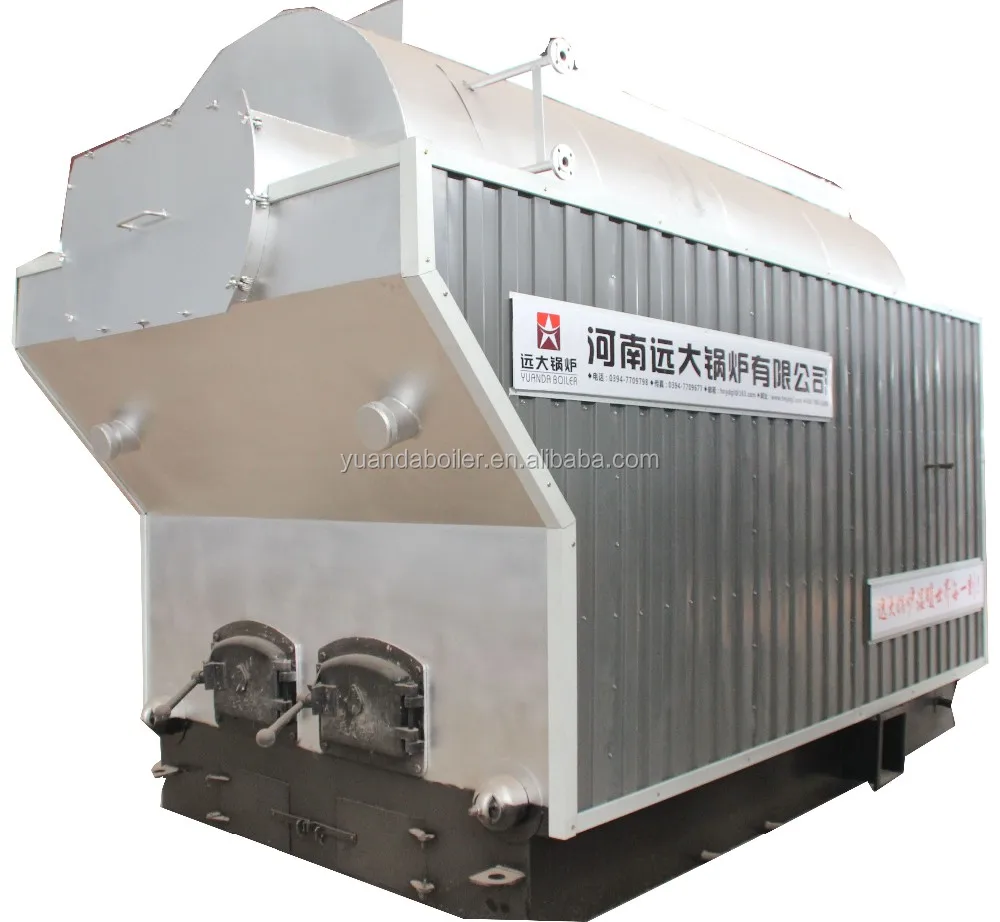

I. General introduction of China industrial Fire Wood boiler,firewood boiler,firewood steam boiler
Yuanda Boiler Factory Price horizontal manual type hand fired wood steam boiler belong to GB DZH series boilers,its main featuers as fellow: horizontal type,feed fuel by hand with less trouble when oprating wood chips boilers. This DZH series wood chips fired steam boiler are highest cost-effective boilers,it is praised by our customers many years.
1. Single cylinder, fire tube (Spirally corrugated tube) and water tube.
2. Packaged style
3. Fuel can be wood pellet, peanut shell palm shell, coconut shell and other biomass fuel.
4. Hand fired type.
5. Capacity 1Ton-6Ton/HR

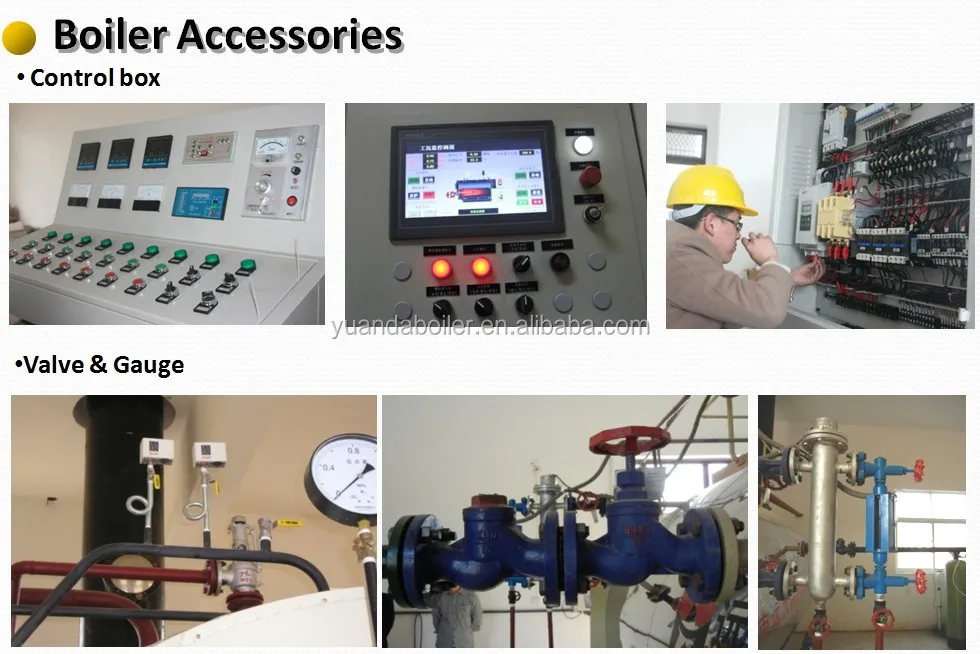

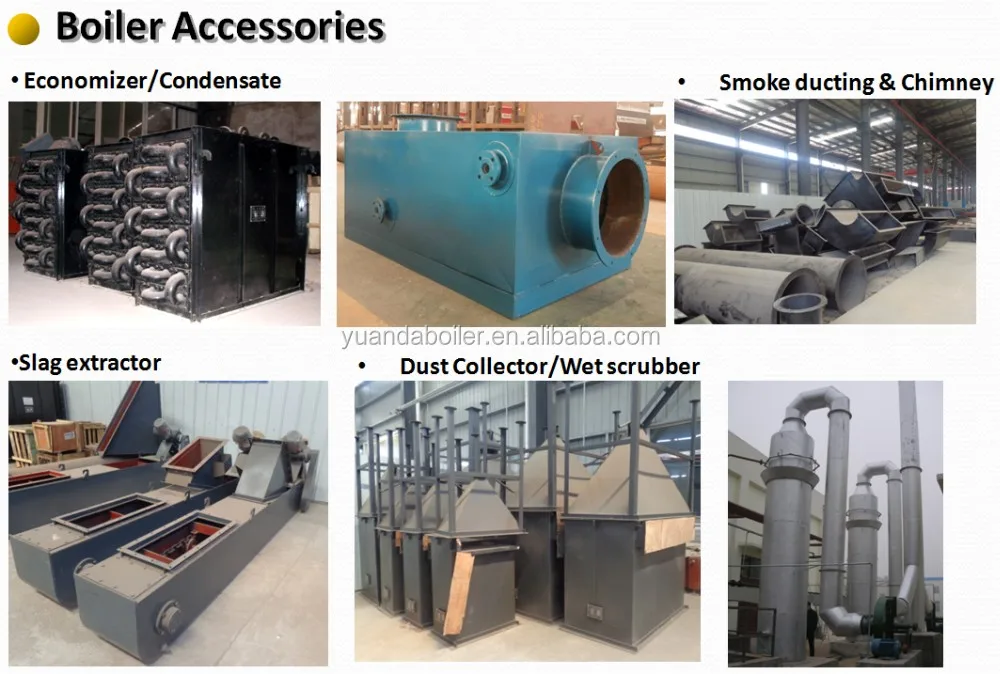

6. Equipped with full set auxiliaries, after simple installation, the boiler can operate.
II. Features of China industrial Fire Wood boiler,firewood boiler,firewood steam boiler
1.With efficient special designed spirally corrugated tube----Making boiler’s actual capacity is 10-15% higher than name plate capacity
2.It uses new hearth with large volume, ----Improving boiler efficiency,reducing fuel consumption in largely

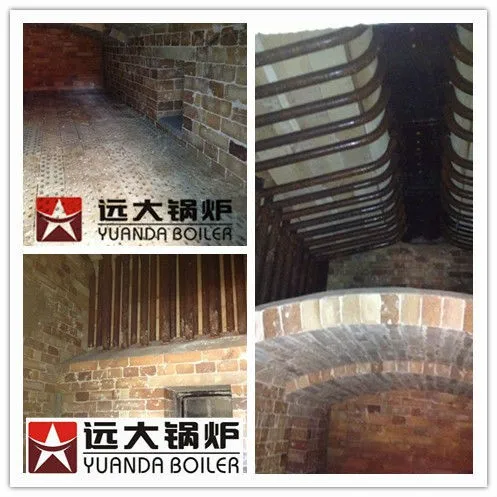

3. Most advanced technology for arch ---- Boiler's hearth has a dust separation reversing chamber,it ensures that the original dust discharge concentration is lower,protection enviroment
4.Optimally designed steam separator ----facilitates vapour gravity separation,and makes the steam humidity lower than 1%, obviously lower than international standard of 4%;
III. Technical datasheet of China industrial Fire Wood boiler,firewood boiler,firewood steam boiler
l Model |
DZH1-0.7-AII |
DZH2-1.0-AII |
DZH4-1.25-AII |
DZH6-1.25-AII |
Rated evaporation( t/h) |
1 |
2 |
4 |
6 |
Rated steam pressure( Mpa) |
1.0 |
1.0 |
1.25 |
1.25 |
Feed water temp(°C ) |
20 |
20 |
20 |
20 |
Rated steam temp(°C ) |
184 |
184 |
194 |
194 |
active grate area( M2) |
1.85 |
3.4 |
5.18 |
7.55 |
Applicable coal style |
AII |
AII |
AII |
AII |
flue gas temperature(°C ) |
157.3 |
163.1 |
180 |
166.3 |
Designed thermal efficiency (%) |
80.33 |
80.54 |
80.28 |
80.94 |
Coal consumption (Kg/h ) |
118 |
238 |
472 |
685 |
Transportation Weight(t) |
13.2 |
13.8 |
23 |
32
|
Warranty:
One-year warranty and full-life service for all of our steam boilers
Boiler spare parts service:
A full range of original spare parts are available for all Yuanda boilers
Service before sale:
Provide relative technical data for customer choosing equipments,layout drawing,foundation,general grawing.
Service after sale:
Help customer for installation and traing.
Maintenance and repair for one year.
