Brand Name: Yuanda Boiler
Model Number: DZH
Place of Origin: Henan, China (Mainland)
Firewood steam boiler,fire wood boiler
Features
1.Single cylinder,fire tube(Spirally corrugated tube) and water tube.
2.Packaged style
3.Fuel can be wood pellet,peanut shell palm shell,coconut shelland other biomass fuel.
4.Hand fired type.
5.Capacity 1Ton-20Ton/HR
5.Equipped with full set auxiliaries,after simple installation,the boiler can operate
Wood fired steam boiler technical Data
Model |
DZH1-0.7-AII |
DZH2-1.0-AII |
DZH4-1.25-AII |
DZH6-1.25-AII |
Rated evaporation( t/h) |
1 |
2 |
4 |
6 |
Rated steam pressure( Mpa) |
1.0 |
1.0 |
1.25 |
1.25 |
Feed water temp(°C ) |
20 |
20 |
20 |
20 |
Rated steam temp(°C ) |
184 |
184 |
194 |
194 |
active grate area( M2) |
1.85 |
3.4 |
5.18 |
7.55 |
Applicable coal style |
AII |
AII |
AII |
AII |
flue gas temperature(°C ) |
157.3 |
163.1 |
180 |
166.3 |
Designed thermal efficiency(%) |
80.33 |
80.54 |
80.28 |
80.94 |
fuel consumption (Kg/h ) |
118 |
238 |
472 |
685 |
Transportation Weight(t) |
13.2 |
13.8 |
23 |
32 |

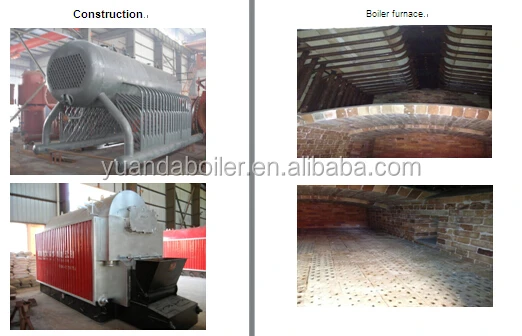

Wood fired steam boiler furnace
Wood boiler ,manual type boiler,low equipment investment.
We also have wood fired hot water boiler,welcome your enquiry.
