Low price Fix grate 6 ton wood fired steam boiler

Low price Fix grate 6 ton wood fired steam boiler

FOB Price:

US 20000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Ton/Tons per Year

Port:

Shanghai,Qingdao

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Brand:

Yuanda Boiler

Products Model:

DZH6-1.25-AII

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: DZH6-1.25-AII

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: seaworthy packing for wood fired steam boiler 6 ton steam boiler
Delivery Detail: Shipped in 20 days after payment

Specifications

Product Description

6 ton wood fired steam boiler for timber factory

Features

1.Single cylinder,fire tube(Spirally corrugated tube) and water tube.

2.Packaged style

3.Fuel can be wood pellet,peanut shell palm shell,coconut shelland other biomass fuel.

4.Hand fired type.

5.Capacity 1Ton-6Ton/HR

6.Equipped with full set auxiliaries,after simple installation,the boiler can operate

7.Manual type wood boiler with low equipment investment and operation cost,wood waste,wood dust,wood log all can be as boiler fuel,operation cost is low

Wood boiler Technical Data 6 ton steam boiler DZH6-1.25-AII

Model	DZH1-0.7-AII	DZH2-1.0-AII	DZH4-1.25-AII	DZH6-1.25-AII
Rated evaporation( t/h)	1	2	4	6
Rated steam pressure( Mpa)	1.0	1.0	1.25	1.25
Feed water temp(°C )	20	20	20	20
Rated steam temp(°C )	184	184	194	194
active grate area( M2)	1.85	3.4	5.18	7.55
Applicable coal style	AII	AII	AII	AII
flue gas temperature(°C )	157.3	163.1	180	166.3
Designed thermal efficiency(%)	80.33	80.54	80.28	80.94
wood consumption (Kg/h )	118	238	472	685
Transportation Weight(t)	13.2	13.8	23	32

Wood boiler inside structure

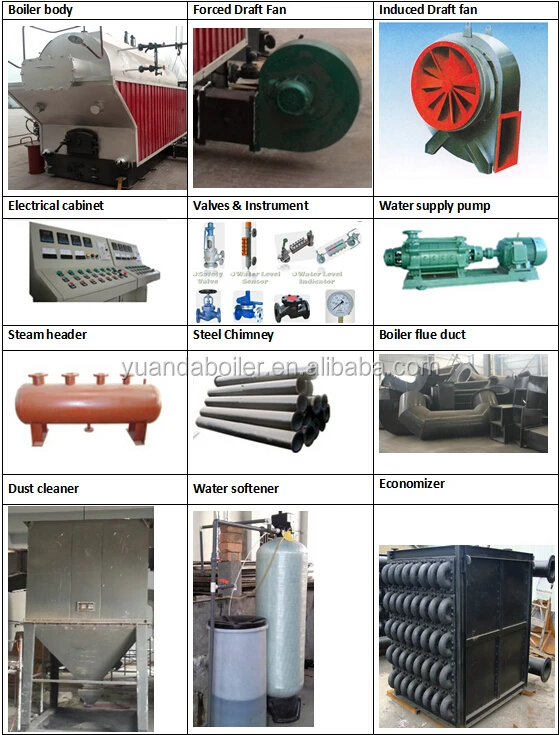

Wood boiler standard scope of supply

Related Products

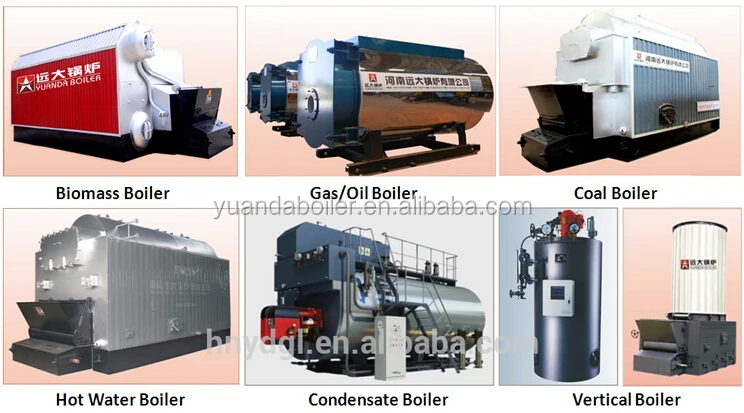

Our Company Main product List

SZL 2 Ton-40Ton Biomass Boiler

DZL1 Ton-40 Ton Coal Boiler

WNS 0.5 Ton-20 Ton Oil/Gas Boiler

SZS 2 Ton-35 Ton Oil/Gas Boiler

DZH 1 Ton-6 Ton Wood Boiler

Wood/coal/gas /oil fired thermal oil boiler Wood fired steam boiler advantages;

1.Low invetsment on operation and equipment

2.Working life is very long.

3.Solid fuel all available for burning

4.Easy to operate and install

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
