1 6ton hr 10bar 13bar industrial wood boiler

1 6ton hr 10bar 13bar industrial wood boiler

FOB Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Set/Sets per Year

Port:

Shanghai/Qingdao/Tianjin

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Brand:

Henan yuanda boiler

Products Model:

DZH

Products Details
Company Profile

Quick Details

Brand Name: Henan yuanda boiler

Model Number: DZH

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden box and seaworthy package for the boiler body/auxiliaries/boiler room equipment
Delivery Detail: 30 days in general, but we can advance the delivery time

Specifications

1-6ton/hr 10bar 13bar industrial wood boiler

Product Description

Manual boiler technical data:

Manual boiler model	DZH1-1.0	DZH2-1.25	DZH4-1.25	DZH4-1.6
Steam evaporation(t/h)	1	2	4	4
Working pressure(Mpa)	1.0	1.25	1.25	1.6
Feeding water temp(°c)	20	20	20	20
Steam temp(°c)	184	194	194	204
Hydraulic test(Mpa)	1.4	1.65	2.0	2.0
Water capacity(m³)	3.15	4.75	7.7	7.7
Radiation heating area(m²)	4.8	6.34	11.81	11.81
Smoke blackness(Ringelman )	‹1
Fire grate area(m²)	1.3	2.55	4.72	4.72
Delivery weight(t)	8.6	15	18.5	19.2

Industrial wood burning stove--DZH boiler series !

Highly praised by the customers overseas !

High cost performace & 100% stable reliablity !

Advantages:

1. Spirally corrugated tube

function: heat transfer enhancement ,1-2 times heat transfer efficiency than before. reduce the spirally corrugated tube numbers,and improve the suppleness to avoid the tube plate cracking

2. Arched tube plate

function : reduce the thermal stress of weld and improve the tube plate suppleness,meantime, simplify the structure

3.Airfoil flue

Function : reduce the smoke temperature of high temperature tube plate,and then reduce the thermal load of boiler bottom.

4.Smook dust separation chamber

Function : reduce the original dust concentration of the steam boiler, and protect environment.

5.Fire-water tube mixed design

Function: optimum structure design ,reduce the boiler size and can save 1/3 building cost of the boiler room.

Burning fuel--various kinds of wood :

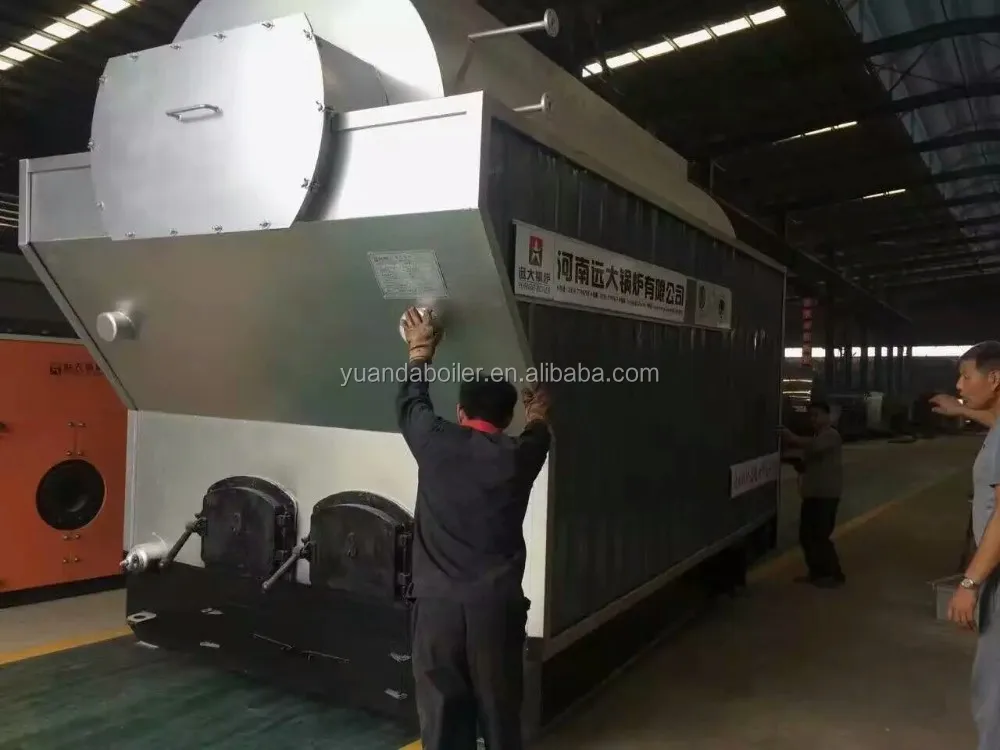

Boiler's production

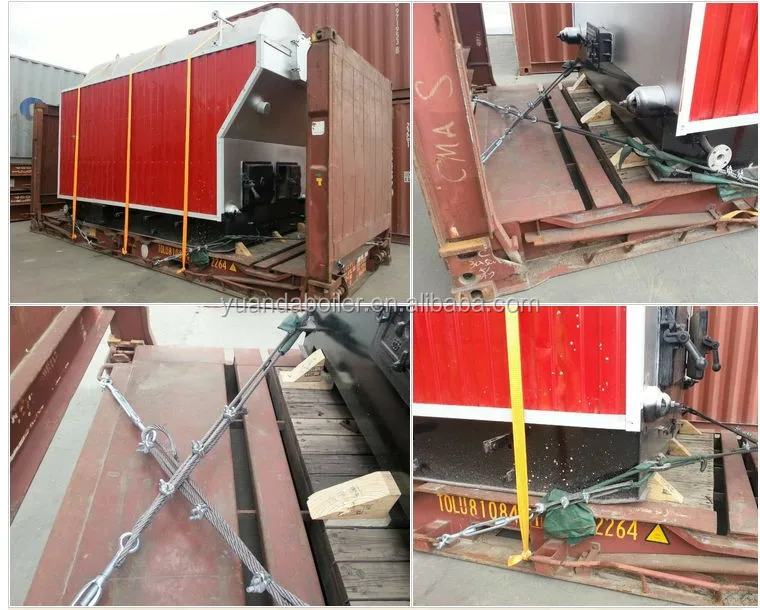

Packaging & Shipping

Our Services

Quality Control

1.58 years corporate reputation.

2.X-ray flaw detection.

3.Higher grade welder certificate.

Guarantee and After-sale service

1.One year warranty and full-life service for all our boilers.

2.A full range of original spare parts are available for all yuanda boilers.

3.24 hours technical support by email.

4.Engineers available to service overseas.

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
