designed for solid fuel such as bagasse corncob high thermal effciency boilers

designed for solid fuel such as bagasse corncob high thermal effciency boilers

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Ton/Tons per Year

Port:

Shanghai, Qingdao, Tianjin, Guangzhou, Shenzhen, or other ports

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

Yuanda Boiler

Products Model:

SZL D

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: SZL D

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Boiler proper, nude packing, 40' flact rack. Auxiliary machines, valves & gauges, water pumps, water softener, electrical cabinet, wooden box. Other auxliary machines, nude packing.
Delivery Detail: Shipped in 30 days after payment

Specifications

Product Description

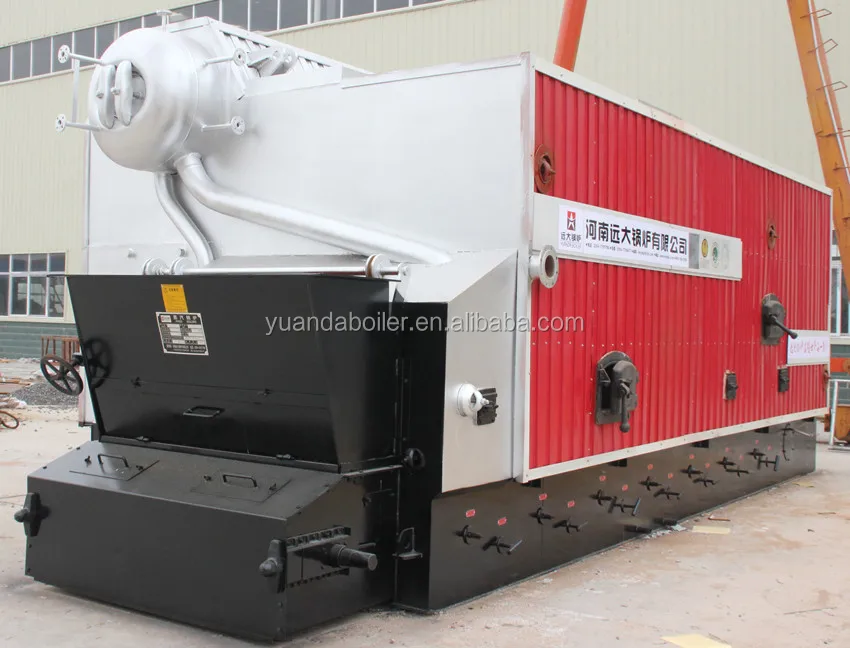

SZL(D) type industrial low pressure horizontal double-drum water tube cyclone combustion chamber water-cooled arch automatic chain grate package coal /wood/ biomass / pellets steam boilers

SZL(D) type steam boilers adopt the world latest modern technology, horizontal struture, double drums, layout water tubes between upper drum and lower drum to form larger furnace space, which are good for many kinds of solid fuels, equipped cyclone chamber and water-cooled arch inside to makes fuel burning sufficiently and higher boiler thermal efficiency, building fire-proof bricks between the water tubes layer to form third heating pass, increasing heating surface and boiler thermal efficiency.

designed for solid fuel such as bagasse, corncob high thermal effciency boilers
Rated steam capacity	2t/h, 4t/h, 6t/h, 8t/h, 2ton/h, 4ton/h, 6ton/h, 8ton/h 2TPH, 4TPH, 6TPH, 8TPH
Rated working pressure	10bar, 13bar, 16bar, 25bar 1.0Mpa, 1.25Mpa, 1.6Mpa, 2.5Mpa 150Psi, 180Psi, 230Psi, 360Psi
Rated steam temperature	184℃, 194℃, 204℃, 226℃
Design fuels	coal, coal powder, fine coal, lignite coal, brown coal, coal pellets, coal briquette, coal ball, bituminous coal, steam coal, coking coal, black coal charcoal, charcoal pellets wood pellets, wood briquettes biomass pellets, biomass briquettes straw pellets, crop pellets, wood chips, rice husk/hull walnut shells/hulls, peanut shells/hulls, coconut shell, cashew nut shells/hulls corncobs,bagasse rice stalk, cotton stalk, wheat stalk, crop stalk sawdust, wood dust, wood powder and other biomass fuels
Thermal efficiency	> 80%
Warranty	One year
Related machines	forced draft fan, induced draft fan, electrical cabinet, valves and meters, grate speeder governor, water pumps, fuels feeder, ashes extractor, water softener, steam header, economizer, dust remover, gas flue, chimney, etc.
Application	Provide steam and energy to machinery and plants in following industries, Food industry, Textile and garments industry, Shoes industry, Chemicals industry, Plastics industry, Rubber industry, Tyre industry, Metal and metallurgy industry, Energy & mineral industry, Medicines and pharmaceuticals industry, Beer, wine and beverage industry, Leather industry, Milk and dairy industry, Furnace industry, Laundry wash industry, Sterilization machines, etc.

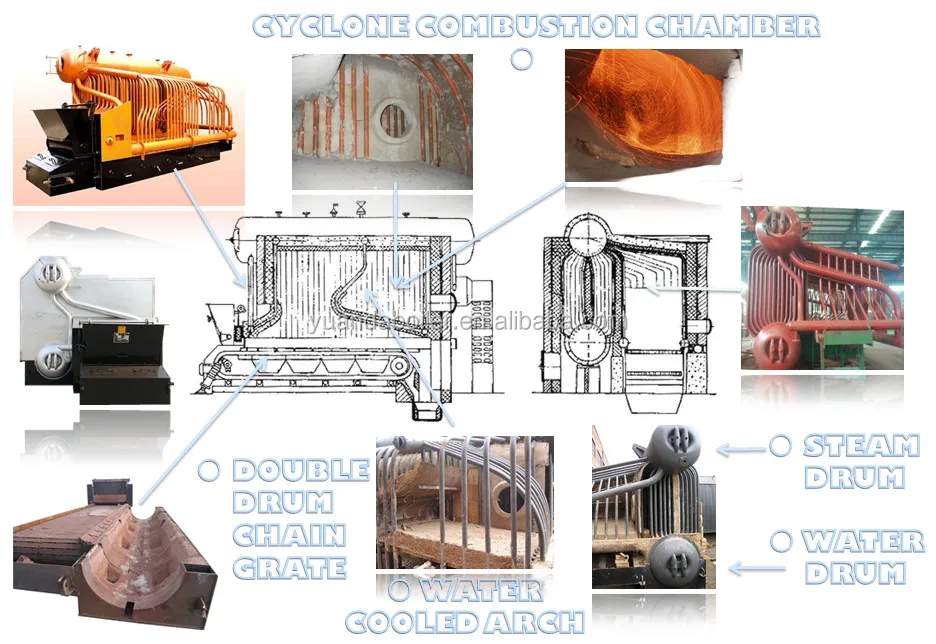

1.The cyclone combustion chamber makes high temperature flame and exhausted gas mixed burning and rotating at high speed to improve fuels burning efficiency, separate the gas and dust;
2.Two drums form larger furnace space, which is good for fuel combustion, increase boiler heating efficiency;
3.Water-cooled arch reduce furnace temperature, prolong service life of arch.
4.Flame and flue gas three return enlarge boiler heating surface, increase the heating efficiency;
5.Self support, cancel the steel frame, simplify the structure;
6.Large size down pipe & bottom header, increase the water flow speed of water tubes, prevent to be explosion, improve the reliability of water circulation;

7.designed for solid fuel such as bagasse, corncob high thermal effciency boilers

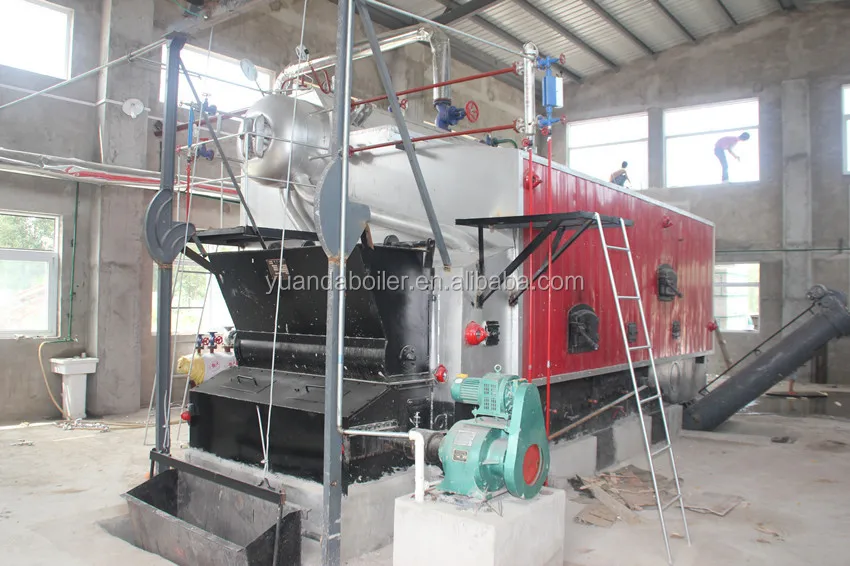

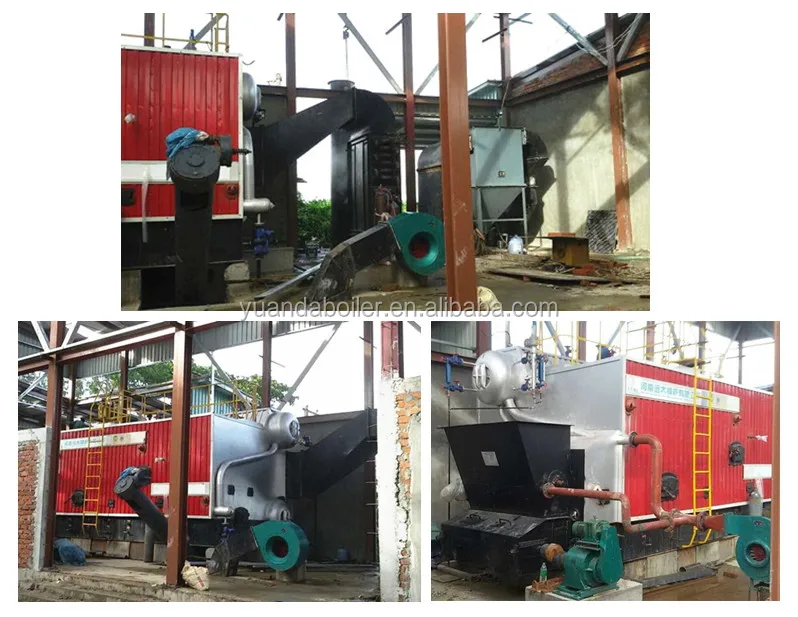

Projects

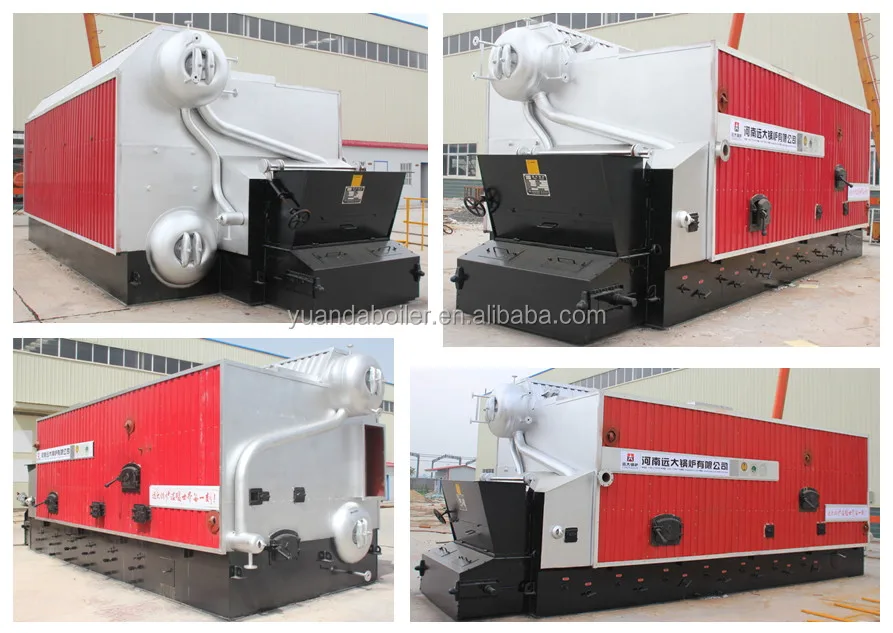

For its large furnace space, SZL D type boilers are widely used for many kinds of biomass fuels, a very popular package boiler type among worldwide customers.

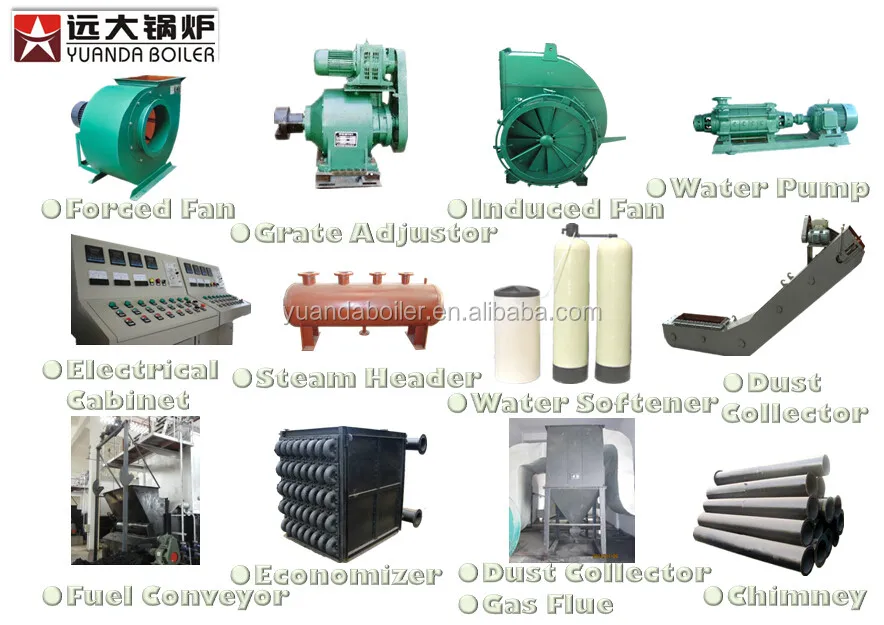

Related Machines

Parameter Datas

Model	Rated steam capacity	Working pressure	Steam temperature	Boiler efficiency	Weight (t)	Dimensions (mm)
SZL2-1.25/1.6-AII/T	2ton/h	12.5/16bar	194/204 ^oC	83.32%	20/23	596029603462
SZL4-1.25/1.6-AII/T	4ton/h	12.5/16bar	194/204 ^oC	82.14%	28/29	651031303462
SZL6-1.25/1.6-AII/T	6ton/h	12.5/16bar	194/204 ^oC	82.6%	36/38	783033463462
SZL8-1.25/1.6-AII/T	8ton/h	12.5/16bar	194/204 ^oC	81.65%	50/52	887033463464

Company Introduction

Henan Yuanda Boiler

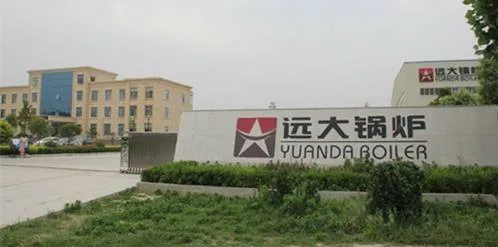

Established in 1956, Henan Yuanda Boiler Factory locates in Zhoukou city and headquarters in Zhengzhou city, Henan province, the central part of China. We are professional manufacturer and supplier of industrial boilers, with fifty years' experience in boiler design, technique, production, installation and operation. Our company is one of the leading enterprises which first obtained the national boiler manufacturing license in China.

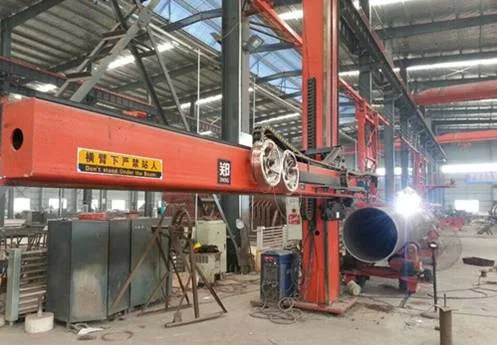

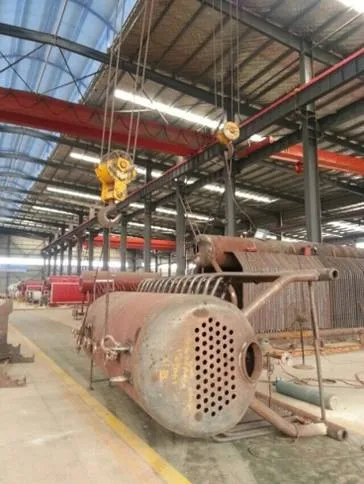

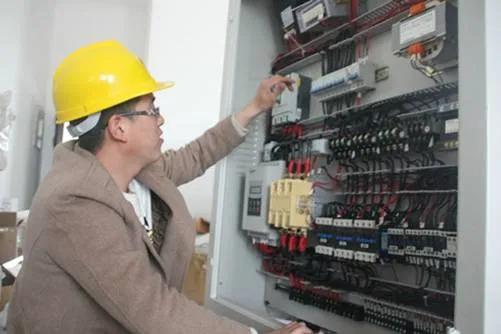

Workshop Overview

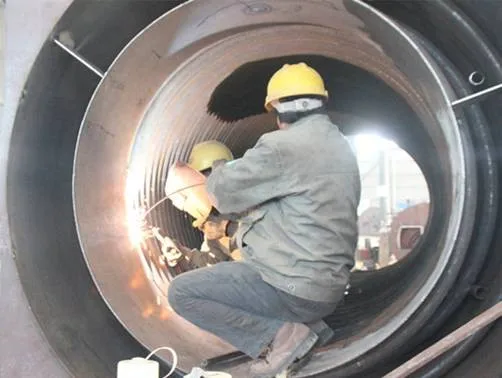

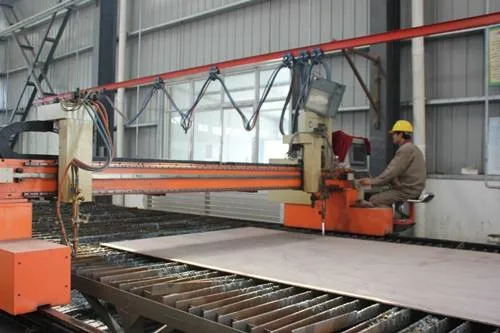

Our workshop are equipped with modern bending machines, welding machines, cutting machines, testing machines, and other professional machines, to ensure high quality products. Yuanda Boiler already passed and got the ISO 9001 Quailty Management System Authentication Certificate, which regulate the whole working process of factory.

We take responsibility for all the products we sell as well as the services we provide, and commit to solve every problem completely. At the same time, We aim to minimize the waste on the operational procedure in order to bring the best benefit to our customers.

We always try to improve working environment in order to make an advantage for the growth of all our staffs. We aim to develop a fair working environment in which there is no biasing, which creates opportunities for all our staffs to show their best performance and are equally evaluated according to their contributions to the company, so that they will develop together with the company as well.

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
