Home > Products > Heating > Boiler
wood pellets biomass pellets fired cauldron for industrial usage wood pellets biomass pellets fired cauldron for industrial usage wood pellets biomass pellets fired cauldron for industrial usage

wood pellets biomass pellets fired cauldron for industrial usage

FOB Price:
Min.Order Quantity:
1 Set/Sets
Supply Ability:
500 Ton/Tons per Quarter
Port:
Shanghai, Qingdao, Tianjin, Guangzhou, Shenzhen, or other ports
Place of Origin:
Henan, China (Mainland)
Payment Terms:
L/C,D/P,T/T,Western Union
Brand:
Yuanda Boiler
Products Model:
SZL D
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Yuanda Boiler

    Model Number: SZL D

    Place of Origin: Henan, China (Mainland)

Packaging & Delivery

  • Packaging Details: Boiler proper, nude packing, 40' flact rack. Auxiliary machines, valves & gauges, water pumps, water softener, electrical cabinet, wooden box. Other auxliary machines, nude packing.
  • Delivery Detail: Shipped in 30 days after payment

Specifications

Products Overview

SZL(D) type industrial low pressure horizontal double-drum water tube cyclone combustion chamber water-cooled arch automatic chain grate package coal/ wood/ biomass fuels steam boilers

wood pellets/biomass pellets fired cauldron for industrial usage

SZL(D) type steam boilers adopt the world latest modern technology, horizontal struture, double drums, layout water tubes between upper drum and lower drum to form larger furnace space, which are good for many kinds of solid fuels, equipped cyclone chamber and water-cooled arch inside to makes fuel burning sufficiently and higher boiler thermal efficiency, building fire-proof bricks between the water tubes layer to form third heating pass, increasing heating surface and boiler thermal efficiency.

wood pellets/biomass pellets fired cauldron for industrial usage
Rated steam capacity
2t/h, 4t/h, 6t/h, 8t/h,
2ton/h, 4ton/h, 6ton/h, 8ton/h
2TPH, 4TPH, 6TPH, 8TPH
Rated working pressure
10bar, 13bar, 16bar, 25bar
1.0Mpa, 1.25Mpa, 1.6Mpa, 2.5Mpa
150Psi, 180Psi, 230Psi, 360Psi
Rated steam temperature
184℃, 194℃, 204℃, 226℃
Design fuels
coal, coal powder, fine coal, lignite coal, brown coal, coal pellets, coal briquette, coal ball, bituminous coal, steam coal, coking coal, black coal
charcoal, charcoal pellets
wood pellets, wood briquettes
biomass pellets, biomass briquettes
straw pellets, crop pellets,
wood chips, rice husk/hull
walnut shells/hulls, peanut shells/hulls,
coconut shell, cashew nut shells/hulls
corncobs,bagasse
rice stalk, cotton stalk, wheat stalk, crop stalk
sawdust, wood dust, wood powder
and other biomass fuels
Thermal efficiency
> 80%
Warranty
One year
Related machines
forced draft fan, induced draft fan, electrical cabinet, valves and meters, grate speeder governor, water pumps, fuels feeder, ashes extractor, water softener, steam header, economizer, dust remover, gas flue, chimney, etc.
Application
Provide steam and energy to machinery and plants in following industries,
Food industry, Textile and garments industry, Shoes industry, Chemicals industry, Plastics industry, Rubber industry, Tyre industry, Metal and metallurgy industry, Energy & mineral industry, Medicines and pharmaceuticals industry, Beer, wine and beverage industry, Leather industry, Milk and dairy industry, Furnace industry, Laundry wash industry, Sterilization machines, etc.

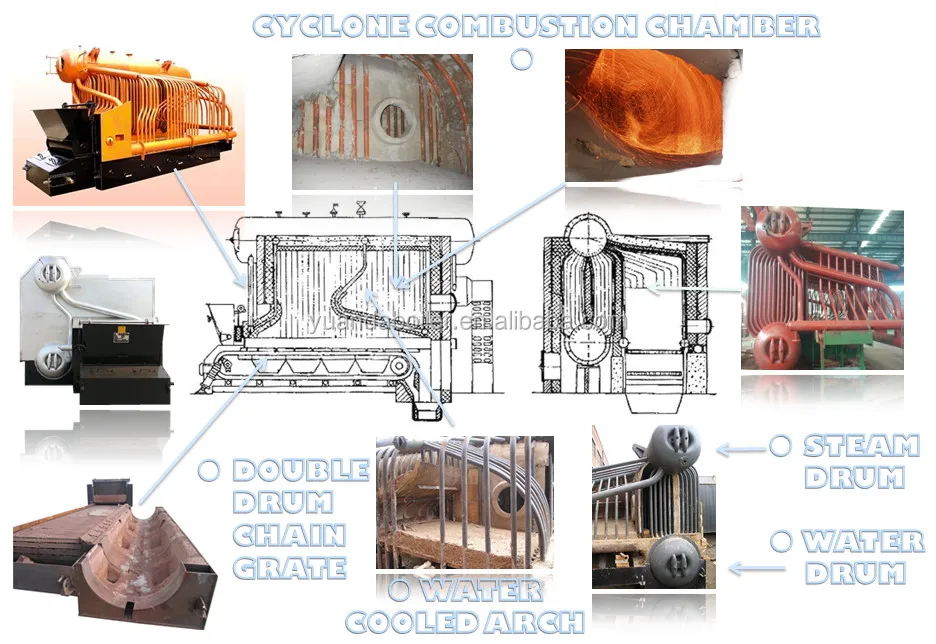

Inner Structure

1.The cyclone combustion chamber makes fuel burning sufficiently;
2.Two drums form larger furnace space, which is good for fuel combustion, increase boiler heating efficiency;
3.Flame and flue gas three return enlarge boiler heating surface, increase the heating efficiency;
4.Self support, cancel the steel frame, simplify the structure;
5.Large size down pipe & bottom header, increase the water flow speed of water tubes, prevent to be explosion, improve the reliability of water circulation;
6.Large size furnace, make more convenient and efficient.

Auxiliary Machines

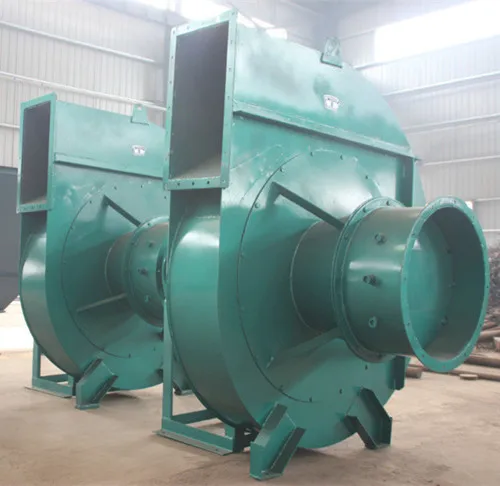

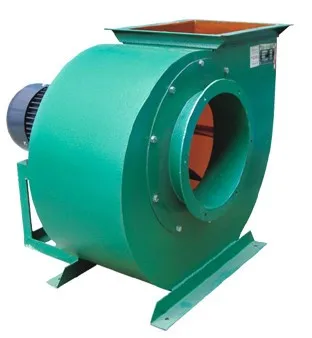

Forced draft fan / Induced draft fan
Blow clean air into boiler and promote exhauted gas out, ensure the air circulation of the whole system.

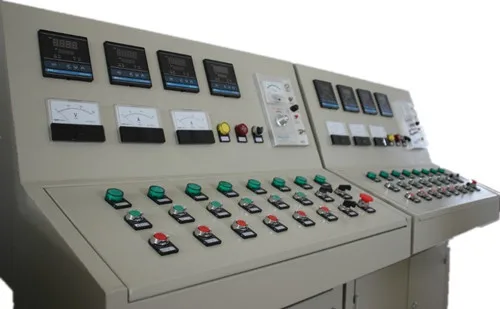

Electrical cabinet

Be responsible for electrical control of auxiliary machines, ensure the whole system working automatically and make the operation convenient.









Grate speed governor

Regulate the suitable speed of chian grate according to the combustion situation.

         Feedwater Pump

Put water into boiler working system.

           Automatic water softener

Remove Mg+ Ca+ in the water and improve water quality. This is good for boiler proper and tubes, prolong the service time.

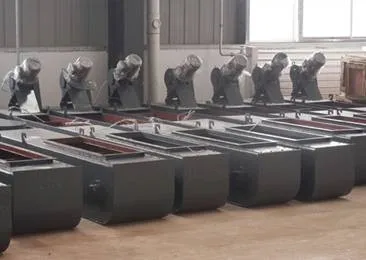

Slag remover

Extract slags mechanically and save labour cost.







Economizer

Heat inlet water and reduce exhausted gas temperature, which increase boiler efficiency and is good for environment.

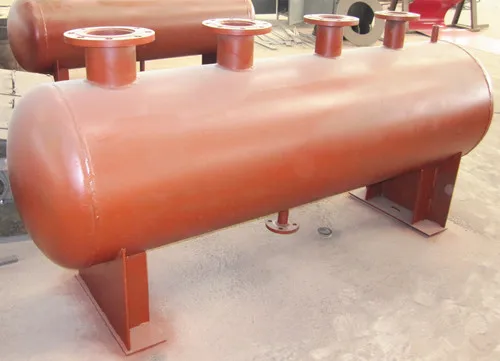

Steam Header

Distribute steam to different pipes

           Fuel Conveyor

To raise and put fuels into fuel hopper.

       Dust remover

Remove the dust and ash in exhausted gas to protect envrionment and reduce polutions.

  Gas flue and Chimney

Provide channels for exhausted gas flow..
