Home > Products > Heating > Boiler
SZL Water tube 10 ton steam boiler SZL Water tube 10 ton steam boiler SZL Water tube 10 ton steam boiler

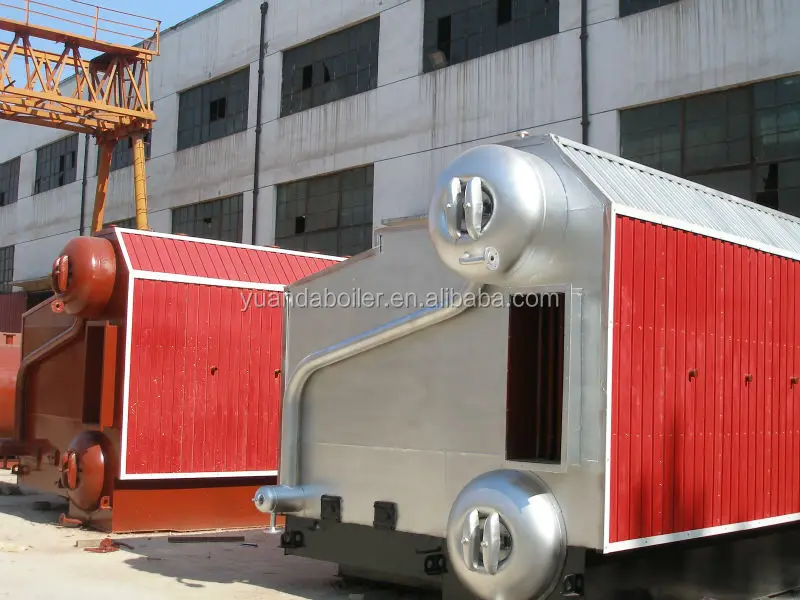

SZL Water tube 10 ton steam boiler

FOB Price:
US 5000-600000 / Set
Min.Order Quantity:
1 Set/Sets
Supply Ability:
150 Set/Sets per Month
Port:
Shanghai/Qingdao/Tianjin
Place of Origin:
Henan, China (Mainland)
Payment Terms:
L/C,T/T
Brand:
Yuanda
Products Model:
SZL Water tube 10 ton steam boiler
Share:
  • Products Details
  • Company Profile

Quick Details

  • Brand Name: Yuanda

    Model Number: SZL Water tube 10 ton steam boiler

    Place of Origin: Henan, China (Mainland)

Packaging & Delivery

  • Packaging Details: For this water tube 10 ton steam boiler , we adopt wooden box, seaworthy package
  • Delivery Detail: Water tube 10 ton steam boiler IN 10 days

Specifications



Water tube 10 ton steam boiler



Our main products:



    1. DZL new type water fire tube boilers (1-35T/H, 0.7-29MW)

     2. WNS series oil/gas fired boilers (0.3-20T/H, 0.7-7MN)
     3. SZL series water tube biomass boilers (2-35T/H, 1.4-29MW)
     4. LNB series coal gas boilers (0.3-10T)
     5. LHS series vertical gas/oil fired boiler(0.3-1T)
     6. AAC brick/block making machine

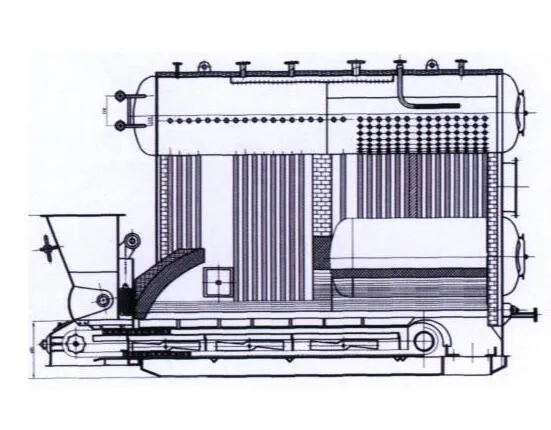

SZL series of steam boiler is double drum, shapes like the capital "D",the fabrication of this boiler is excellent, environmental protection and energy saving.



Characters:

1)adopt the whirlwind burning chamber in the furnace, the inner high temperature flue gas revolute at high speed, so they can be burned completely,boiler thermal efficiency can be improved, large dust particles drops, thus the second combustion begins,the fuel can be used fully, since this technology is energy-saving, low fuel consumption, high efficient and environmental friendly, our company have won the national patent.

2)Independent wind chamber structure, thus the wind volume adjust of horizontal wind chamber is much sensitive and reliable, overcome the problems of wind blocked,partial burn and so on, of course, this technology received the national patent.





The following is the brief parameter list of the water tube 10 ton steam boiler :



Model

SZL6-1.25(2.5)

SZL8-1.25(2.5)

SZL10-1.25(2.5)

SZL15-1.25(2.5)

Rated evaporation(t/h)

6

8

10

15

Rated pressure(Mpa)

1.25(2.5)

1.25(2.5)

1.25(2.5)

1.25(2.5)

Water feeding temperature(°c)

20

20

20

20

Steam temperature(°c)

194(226)

194(226)

194(226)

194(226)

Fire grate area (m²)

7.3

10.4

11.8

17.7

Efficiency (%)

82

82

82

82

Fuel consumption (Kg/h)

671(684)

781(803)

1113(1127)

1663(1686)

Delivery weight (t)

38(42)

52

68

30















Guarantee and After-sale service



One year guarantee for boiler body and accessories

24 hours technical support by email

Engineers available to service overseas

Company Information



Henan Yuanda Boiler Co.,Ltd was found in 1956,which was the first batch of companies get the national boiler

manufacturing license,having the "B"level boiler,"D"level pressure vessel manufacturing qualification,and we are

certificated with ISO9001-2000.

We own the international standard experts and experienced boiler engineering team,with 50 years of development,

manufacture and installation experience ,now we have already have the capacity of producing 500t industrial boiler,

various kinds of pressure vessel 6000 t.
