3 pass corrugated furnace tube steam boiler

* 1.fire tube structure boiler

2.3 pass steam boiler

3.industrial steam boiler

corrugate furnace fire tube steam boiler

4.Fuel:gas fired or oil fired steam boiler

This series boiler is three return fire tube steam boiler.It equipped with a big furnace tube structure,and high temperature gas into the atmosphere through three-return smoke tube,smoke chamber.It equipped with good performance burner and advanced techniques.

Product Description

Vertical type circulating pump gas boiler

    Fully automatic operation
    Corrugated furnace design, large volume
    3-pass boiler with spirally corrugated tube
    Fire tube type, Wet back structure, low maintenance cost.
    20years life span without any problems
    With protective functions of over-temperature, overpressure, water shortage, leakage detection and flameout, ensuring safe and reliable operation.

1) Horizontal internal combustion three way, the combustion chamber is composed of corrugated and straight internal furnace.

2) Using threaded tube for enhancing heat-transfer, suitable internal furnace size to accommodate a variety of fuel combustion.

3) Perfect stength design and sufficient heat-transfer area can guarantee boiler performance.

4) Boiler with automatic ignition, water level control, steam overpressure protection, low water level protection, furnace frameout protection etc. control and protection functions is convenient for operation, and safe & reliable.

5) It can meet the requirements from different users about valves, pumps and control cabinet, also can provide different control system with components imported or made in China and different control panel and function.

1).WNS Series Wet back 3 Passes efficiency Gas Fired Steam Boiler uses the santandard three return trip technology the entire wet back structure.
2). The furnace transfer and breathing tube radiation heat convection rational design, layout of adequate heating boilers, high thermal efficiency.
3).This furnace water capacity, full heat exchanger, especially for medium and large sized boiler.

4).This furnace used to burn the center of a unique technology,the entire wet back structure, the furnace volumn is big. make full use of radiation furnace heat exchanger,and through the combustion of fuels burnout level, making boiler thermal efficiency improved greatly.
5). This simplifies the furnace heating surface design,especially for the low-power boiler.

Technical Parameters

Vertical type circulating pump gas boiler

Boiler model			WNS1-1.0-Y(Q)	WNS2-1.25-Y(Q)	WNS4-1.25-Y(Q)	WNS6-1.25-Y(Q)
Rated Evaporation		Ton	1	2	4	6
Rating pressure		MPa	1	1.25	1.25	1.25
Feed Water Temp		°C	20	20	20	20
Rated Steam Temp		°C	184	194	194	194
Fuel Consumption	Light oil	Kg/h	65.5	129.6	256	380
	Heavy oil	Kg/h	67.3	132.2	261.9	390.6
	natural gas	m3 /h	84.2	165	326.3	450.6
	liquid gas	m3 /h	29	57.3	109.1	163.9
	City gas	m3 /h	176	346.3	682.5	1020.6
Thermal Efficiency		%	88.5	89.2	89.2	89.7
Water Capacity		m3	2.2	4.5	9.1	10.1
Weight		T	4.3	7	9.5	16
Dimension		mm	3561×1690×1910	4111×1950×2199	4732×2150×2448	5500×2600×2990

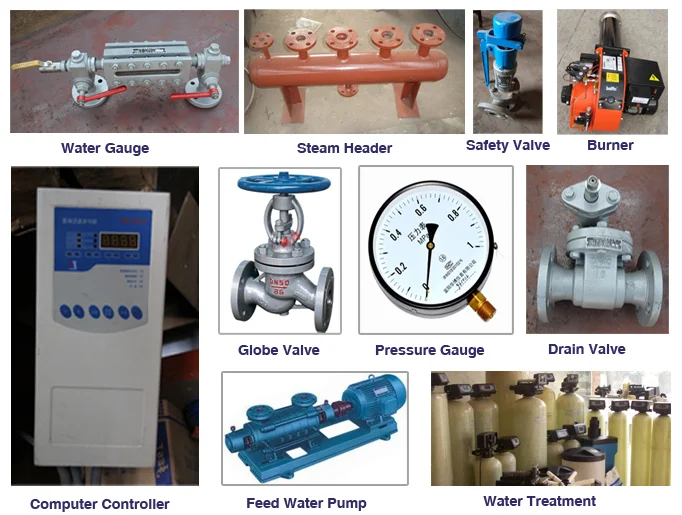

Standard Accessories

Vertical type circulating pump gas boiler
