5000kg Fire Tube Steam Boiler

FOB Price:

Get Latest Price

Min.Order Quantity:

1 Set/Sets

Supply Ability:

100 Ton/Tons per Week

Port:

Any ports in China

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,5000kg steam boiler

Brand:

Yuanda Boiler

Products Model:

WNS

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: WNS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Boiler proper & condensor & chimney & steam header: nude packing. Valves & burners & pumps & water softener & control cabinet: wooden boxes.
Delivery Detail: 0-30 days

Specifications

Product Description

WNS automatic low pressure horizontal single drum fire tube fully wet-back three passes gas steam boilers

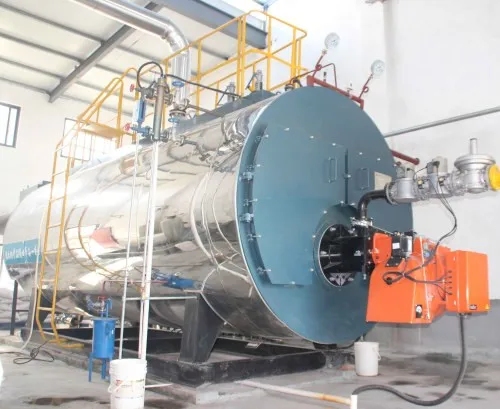

5000kg Fire Tube Steam Boiler

5000kg Fire Tube Steam Boiler
Rated steam capacity	5t/h, 5 ton/hr, 5000kg/h
Rated working pressure	13bar
Rated steam temperature	194℃
Boiler efficiency	94.6%
Design fuels	natural gas, LNG (Liquefied Natural gas), LPG (Liquefied Petroleum Gas), City gas, biogas, waste gas, and other gas fuel


Radiation heating area	17.6 m²
Convection heating area	105.2 m²
Economizer heating area	62.4 m²
Fuel consumption	410Nm³/h(natural gas)
Exhausted gas temp.	84.7^oC
Boiler proper dimensions	*597023602796mm*
Boiler proper weight	12.5ton
Application	supply steam for industries

Fire Tube Structure: Fuel Gas fired in the furnace, and the high temperature gases pass though the first flue tube bundle, turn 180° then enter the second flue tube bundle. The heat of the gases is transferred through the walls of the tubes by thermal conduction, heating the water and ultimately generating steam.
Wet back Structure: The reversal chamber is completely surrounded by water and therefore the heat in the flue gases is optimally utilized! Radiation losses are reduced as none of the parts of the combustion chamber are open to atmosphere instead they are surrounded by water. That means fewer losses, and lesser fuel bills.
3-Pass Structure: The smoke burn in the furnace combustion with Micro positive pressure. High temperature gases pass the furnace though the reversal chamber turn 180 ° into the first flue tube bundle, then go though the frontal gas chamber turn 180 ° into the second flue tube bundle, through the convective heat transfer back into the atmosphere!

Fire Tube Structure:
Fuel Gas fired in the furnace, and the high temperature gases pass though the first flue tube bundle, turn 180° then enter the second flue tube bundle. The heat of the gases is transferred through the walls of the tubes by thermal conduction, heating the water and ultimately generating steam.

Wet back Structure:
The reversal chamber is completely surrounded by water and therefore the heat in the flue gases is optimally utilized! Radiation losses are reduced as none of the parts of the combustion chamber are open to atmosphere instead they are surrounded by water. That means fewer losses, and lesser fuel bills.

3-Pass Structure:
The smoke burn in the furnace combustion with Micro positive pressure. High temperature gases pass the furnace though the reversal chamber turn 180 ° into the first flue tube bundle, then go though the frontal gas chamber turn 180 ° into the second flue tube bundle, through the convective heat transfer back into the atmosphere!

Ancillary Machines

Electrical Cabinet Burner Water Pumps Water Softener

Model: GLKZX-WQZ2-4D Model:GI500ME Model:JGGC8-8*21 Model:750*1950*1

Economizer Steam Header Valves Chimney

Model:JNQ-5T Model:325 Model:500*8000

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
