50hp 100hp 150 bhp 200 bhp Diesel Oil Fired fire tube steam boiler

50hp 100hp 150 bhp 200 bhp Diesel Oil Fired fire tube steam boiler

FOB Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Ton/Tons per Year

Port:

Shanghai,Qingdao

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

Yuanda Boiler

Products Model:

WNS

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: WNS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: seaworthy packing
Delivery Detail: --

Specifications

50hp 100hp 150 bhp 200 bhp Diesel Fired fire tube steam boiler,diesel boiler,oil boiler

This boiler is horizontal type,fire tube,3 pass shell boiler.It can burn heavy oil,light oil,city gas,natural gas,lpg(depend on the burner selected).Boiler furnace is corrugated furnace,burning under positive pressure,fully automatic control.

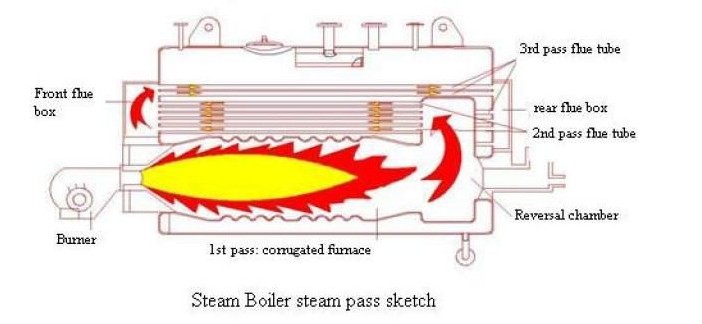

This boiler flue gas flow have 3 pass, fuel oil atomized by the burner burn in the corrugated furnace( first pass),then go to the reversal chamber for fire tube( second pass),then go into front chamber for fire tube again(third pass),then go to reversal chamber to chimney. There are chamber door and hole for maintance.

Diesel oil boiler Product Description

1.Fuel diesel fired steam boiler

2.3 pass fire tube corrugated furnace,enlarge heating area,steady output

3.PLC Control system,make the boiler operate full automatically,labor saving

4.High efficiency,can arrive 94% and higher

5.Package boiler,easy to install and transport

6.Widely used in food factory,chemical factory,dyeing factory,paper factory,textile factory,feed mill

Light diesel oil fired steam boiler specifications

WNS Series Steam Boiler Technology Parameter Table
Boiler model	Rated capacity	Rating pressure	Feed temperature	Steam temperature	Active grate area					Thermal efficiency	Weight	Dimensions
	Rated capacity	Rating pressure	Feed temperature	Steam temperature	Light oil	Heavy oil	Natural gas	Liquid gas	City gas	Thermal efficiency	Weight	Dimensions
	t/h	MPa	℃	℃	Kg/h	Kg/h	m3/h	m3/h	m3/h	%	Ton	mm
WNS1-1.0-Y(Q)	1	1	20	184	65.5	67.3	84.2	29	176	91	4.3	3561×1690×1910
WNS 2-1.25- Y(Q)	2	1.25	20	194	129.6	132.2	165	57.3	346	92	7.2	4111×1950×2199
WNS3-1.25-Y(Q)	3	1.25	20	194	192	195	250	82	510	92.1	8	4330×2248×2564
WNS4-1.25- Y(Q)	4	1.25	20	194	256	261.9	323.6	109	682	93	9.6	4732×2150×2448
WNS5-1.25- Y(Q)	5	1.25	20	194	318	322	386	140	87	93	12.5	5970×2360×2796
WNS6-1.25- Y(Q)	6	1.25	20	194	380	390.6	450	164	1020	93.2	16.5	5500×2600×2990
WNS8-1.25- Y(Q)	8	1.25	105	194	503	517	642	209	1321	93.5	24.8	6450×2800×3200
WNS10-1.25- Y(Q)	10	1.25	105	194	628	643	805	264	1654	93.5	26.8	6800×2900×3394
WNS15-1.25- Y(Q)	15	1.25	105	194	940	965	1182	400	2417	93.5	38	7150×3200×3540
WNS20-1.25- Y(Q)	20	1.25	105	194	1250	1301	1597	520	3299	93.5	55	8200×3400×3826

Fire tube Diesel Oil fired Steam Boiler structure

1.Boiler equipped with autoalarm control system,function are as followed:

(1).High and low water level give sound and light alarm

(2).Low water level interlock protection founction.

(3).Water level automatic control founction.

2.Fire off Protection :

Boiler when fire off,if continue to supply oil the furnace may explode.This burner of this boiler have flame detector,it can detect combustion status in the chamber(including ignition status).If ignition –failure or flame out during burning,generally in 5 seconds(ignition)or in 10 seconds(burning)close oil or gassolenoid valve,and give sound and light alarm.this time the blower should continue to blow off the leaveover the fuel,after 20-30s,will shut down the blower and other auxiliaries power, the boiler then stop working.

Diesel Boiler spare Parts

Workshop

Diesel Boiler Stocks

Diesel boiler scope of supply
1	Boiler body
2	Gas burner
3	Pumps 2 units
4	PLC control box
5	Water sotener
6	Valves&meters
7	Chimney
8	Steam header
9	Economizer
10	Installation materials,Piping&fittings

Company Information

About Yuanda Boiler

- Established in 1956 year

- State Certificated Boiler Manufacturer

- China Industrial Boiler Association Member

- China Welding Association Member

- China Honoring & Credible Enterprise

- ISO9001-2000 Quality Management System.

So far,we sell to lots of countries and regions, such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America.

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
