Fuel Oil Gas fired 1ton steam boiler for hotel

Fuel Oil Gas fired 1ton steam boiler for hotel

FOB Price:

US 5000-50000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

5000 Ton/Tons per Year

Port:

Shanghai,Qingdao

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/P,T/T,Western Union

Brand:

Yuanda Boiler

Products Model:

WNS

Products Details
Company Profile

Quick Details

Brand Name: Yuanda Boiler

Model Number: WNS

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: seaworthy packing
Delivery Detail: 30 days

Specifications

1ton steam boiler,gas fired steam boiler for hotel WNS1-1.0-Q

Natural gas steam boiler 1000kg/hr,1t steam boiler

1,WNS series Gas fired steam boiler realize high efficient heat transfer, sufficient burning with brand burner, environment protection

2,Applied international latest technology for big volume combustion room design, and use brand burner machine

3,Corrugated furnace design make large heat transfer area and protect furnace

4,Using spirally corrugated tube , 1-2 faster heat transfer efficiency and remove hidden danger of welding cracks

5,Applied wet-back structure thatn can reduce faults rate and maintenance cost

6,Equipped with protection devices for overheating, overpressure, lacking water, leak detection, flameout etc.

Gas fired 1ton steam boiler for hotel

1ton steam boiler technical Data

SN	Item	Unit	WNS1-1.0-Y(Q)
1	Rated evaporating capacity	Ton/hr	1
2	Heating surface area	m2	29
3	Rated working pressure	Mpa	1.0
4	Test Pressure	Mpa	1.4
5	Boiler feed temperature	°C	20
6	Steam outlet temperature	°C	184
7	Moisture in steam	%	3
8	Boiler Water capacity	m3	2.5
9	Temperature of smoke exit	°C	175
10	Boiler designed efficiency	%	94.6
11	Boiler test efficiency	%	94.7
12	Diesel oil consumption	Kg/hr	66.9
13	Flue gas blackness	Ringelman	<1
14	Applicable fuel	Light oil or natural gas
15	Transportation Dimension(mm) LengthWidthHeight	3000x1650×2100
16	Transportation Weight(ton)	3.6

Detailed Images for fire tube oil gas steam boilers

Boiler Parts

Fuel Oil GAS boiler machine,three pass smoke flow.

improve heat transfer efficiency

stainless steel packing,durable

Fuel Oil gas steam Boiler Main Features

Key features:large heating surface,with corrugate fire tube,

boiler body packing with rock wool thermal insulating layer.

Equipe with famous European brand burner,italy baltur,riello,Oilon,equip with full automatic control system,3 pass smoke flue,thermal efficiency can arrive 94%

Fuel Oil Gas steam boiler structure

With thress pass,enlarge thermal efficiency

Wet back boiler,reduce boiler surface temperature,reduce thermal loss.

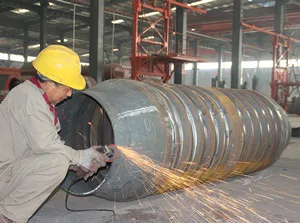

Smoke tube is corrugated fire tube,improve heating surface.

Packing & Delivery

10ton steam boiler shipment need 40'flat rack and one 20GP Container

Delivery time:30 days after receiving the deposit

About Yuanda Boiler

- Established in 1956 year

- State Certificated Boiler Manufacturer

- China Industrial Boiler Association Member

- China Welding Association Member

- China Honoring & Credible Enterprise

- ISO9001-2000 Quality Management System.

So far,we sell to lots of countries and regions, such as Pakistan, India, Sri Lanka in South Asia, Philippine, Indonisia, Malaysia, Thailand, Vietnam, Myanmar, Cambodia in South-east Asia, Saudi Arabia, UAE in Middle East, Tanzania, Egypt, Nigeria, Kenya, South Africa in Afica, Russia, Ukraine in Eruope and Mexico, Chile in South America.

Henan Yuanda Boiler Co., Ltd. was established in 1956, as one of the leading enterprises which first obtained the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.

Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

Our main products include Our main products include more than 150 kinds, hot water boiler and steam boiler, namely,
1. DZL or DZH new type water fire tube coal boilers, wood boiler(1-35T/H, 0.7-29MW)
2. WNS or SZS series gas boiler or oil boilers, condensing boiler (0.3-20T/H, 0.35-14MW)
3. SZL series water tube biomass boilers, pellet boiler (2-35T/H, 1.4-29MW)
4. LNB series coal gas boilers (0.3-10T)
5. LHS series vertical gas and oil fired boiler(0.3-1T)
6. AAC brick/block making machine
7. YLW, YY(Q)L coal fired thermal oil boiler, oil or gas fired hot oil boiler
8. ZWNS series oil fired or gas fired vacuu, boiler
9. All boiler accessories. like economizer, air preheater, deaerator, condensate water recycling equipment and so on
We sell well in more than 30 provinces and regions in China and in south-east Asia, Asia, Africa, South America, Middle East, Russia, etc.

"Quality first, technical innovation" is our guideline. We attach importance to introducing new technology and developing new products. All kinds of preferential policies and comfortable environment for talents make our company and our talents grow together.

We have close relationship with UCLA, SCUT, Zhengzhou University and Beijing Zhiguang Boiler institute and have long-term cooperation with them. We also have our own CAD workstation, which provides strong guarantee for R&D and manufacture.

We persist in taking "Technical innovation, service society" as development goal, and "quality-oriented, good faith world" as enterprise idea, trying our best to produce heat-supply products. "Creating the maximum value for clients and providing all-round and round-the-clock service" are our lofty missions.

Yuanda Boiler looks forward to making a brilliant future with you!
