Brand Name: Yuanda Boiler
Model Number: DZL
Place of Origin: Henan, China (Mainland)
Automatic coal fired 10 ton steam boiler for textile industry , 10ton boiler
SZL10-1.25-AII Technical data
Item |
Unit |
Number |
Rated capacity |
Ton |
10 |
Rated working pressure |
Mpa |
1.25 |
Feed water temperature |
°C |
104 |
Steam temperature |
°C |
194 |
Active grate area |
m2 |
11.9 |
Convection heating surface |
m2 |
231.4 |
Radiation heating surface |
m2 |
38.42 |
Economizer heating surface |
m2 |
159.96 |
Flue gas temperature |
°C |
168.75 |
Designed efficiency |
% |
80.2 |
Fuel consumption |
Kg /hr |
1128 |
Fuel style |
Coal Biomass ,or other solid fuel |
|
Upper part weight |
Ton |
33.5 |
Bottom part weight |
Ton |
18.2 |
Upper part size |
mm |
7600×3350×3508 |
Installation size |
Mm |
11000*3500*5400(L*W*H) |
Delivery style |
Assemble boiler( two parts) |
High heat efficiency & Longer use life!
This series with 100% stabel quality!
DZL solid fuel fired steam boiler make high efficiency:
Quality Assurance
We Yuanda Boiler is a more than 50years old factory with B-grade qualification for boiler manufacturing and D-grade qualification for pressure vessel manufacturing.
Warranty
One-year warranty and full-life services with many considerate policies
Chain grate stoker Coal fired boiler spare parts service:
A full range of original equipment spare parts are immediately available for all Yuanda boilers

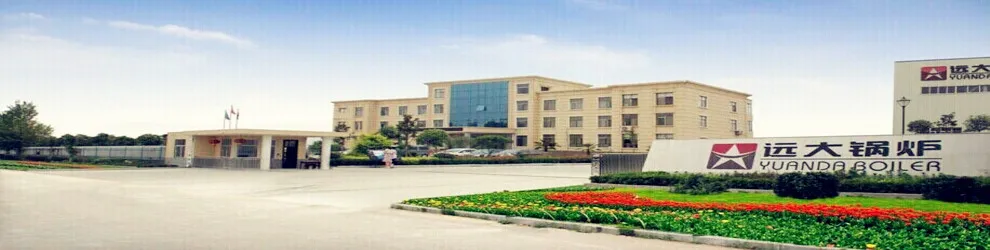

Yuanda boiler company was established in 1956, as one of the leading enterprises firstly obtaining the national boiler manufacturing license in China.
We are the member of China Industrial Boiler Association and China Welding Association. We have passed ISO9001:2000 international quality system certification.
Our company always keeps long-term and close relationships with nationally noted universities and science research units. We have the support from international level experts and experienced and specialized persons in boiler industry. Fifty years' experience in professional development, manufacture, installation and operation makes our annual production capacity of industrial boilers up to 5000 t/h and one of our various pressure vessels up to 6000 t/h.

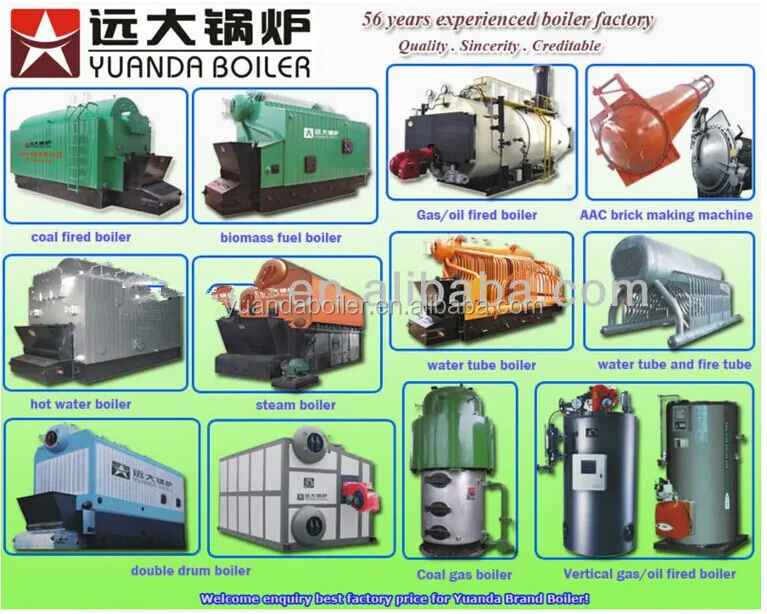

Our Company Main product List
SZL 2 Ton-40Ton Biomass Steam Boiler
DZL1 Ton-40 Ton Coal fired steam Boiler
WNS 0.5 Ton-20 Ton Oil/Gas fired steam Boiler
SZS 2 Ton-35 Ton Oil/Gas fired steam Boiler
DZH 1 Ton-6 Ton Wood fired steam Boiler
YY series oil gas fired thermal oil boiler
0.7Mw-14Mw coal/biomass/oil/gas fired hot water boiler
